Brand: Smart Pack

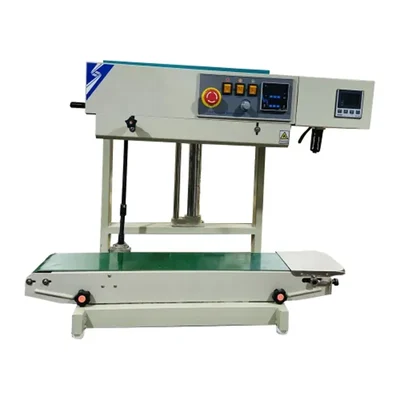

Smart Pack Vertical Band Sealer with Nitrogen Flush, 650W
SKU: SD-SP-20232751
₹44000 (Including GST)
Get extra ₹660 Discount (On Checkout)
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Vertical Band Sealer with Nitrogen Flush
Power Source Electric
Sealing Speed 0-12 Meter/Min.
Country of origin: China
Description
This vertical continuous band sealer with nitrogen flush is a packaging machine designed for sealing high graded pouches, such as laminated pouches in a vertical position. This nitrogen flushing mechanism helps the food stay fresh for a longer time. This type of sealer is commonly used in industries where the preservation of product freshness and the prevention of oxidative reactions are crucial, such as in the packaging of food products, pharmaceuticals, and other sensitive materials. It has a maximum transport weight of 3 kg and 0–12 m/min sealing speed, which saves labor effort. This machine may increase packaging despite excessive production.
Features
:- In-built cooling mechanism for quick seal
- Variable frequency drive for smooth operation
- In-built cooling mechanism for a quick seal
- Production Capacity 10 pouches per min
- The sealing length is unlimited
- Nitrogen gas pressure can be adjustable
Specification
:- Product Type: Vertical with Nitrogen
- Brand: Smart Pack
- Panel Type : Digital
- Production Capacity : 10 Pouch Per Min.
- Power Source : Electric
- Power Consumption : 650 Watt
- Power : 220 V
- Frequency : 50 hz
- Loading Capacity : 3 Kg
- Sealing Speed : 0-12 Meter/Min.
- Product Weight : 30 Kgs (Approx.)
NOTE :
- Conveyor color may vary.
- Suitable for High Graded Pouches, just like laminated Pouches.
Usage
:- Preparation of Equipment : Ensure that the Vertical Band Sealer is properly set up and connected to a nitrogen gas supply. Check all connections for leaks.
- Adjusting Settings : Set the temperature and sealing time on the control panel according to the material being sealed.
- Nitrogen Flush Setup : Connect the nitrogen flush system to the sealer. This typically involves attaching a nitrogen gas line to the designated inlet on the sealer. Adjust the nitrogen flow rate as recommended.
- Loading Packages : Place your product in the packaging material and position it correctly at the entrance of the sealer. Ensure that there are no obstructions and that the film is aligned properly for an effective seal.
- Initiating Sealing Process : Start the sealing process by activating the machine. The vertical band sealer will pull the package through, applying heat and pressure while simultaneously flushing with nitrogen.
- Post-Sealing Inspection : Once sealed, inspect packages for proper seals and check if they are free from air pockets.
Maintenance :
- Check Temperature and Pressure Settings : Ensure they are within the recommended range.
- Inspect Sealing Jaws : Look for any damage or wear and tear.
- Clean Sealing Jaws : Use a soft cloth and a non-abrasive cleaning solution.
- Clear Debris : Remove any packaging material from the machine to prevent jams.
Applications
:- Chemical Industry : In chemical manufacturing plants, the band sealer is used to seal bags containing chemicals and powders.
- Agriculture Industry : This machine can be employed for sealing bags of fertilizers, seeds, grains, and other agricultural products.
- Food Industry : The band sealer is commonly used for sealing food products such as snacks, cereals, pasta, nuts & seeds, pet food, pastries, protein bars, and more.
- Pharmaceutical Industry : It is utilized for sealing pharmaceutical products like medicines and health supplements.
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 87 cm X 43 cm X 38 cm
Package Weight
:
31.54 Kg
