Brand: Automat

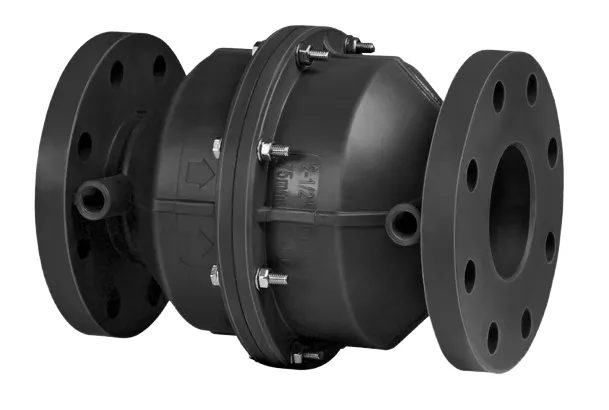

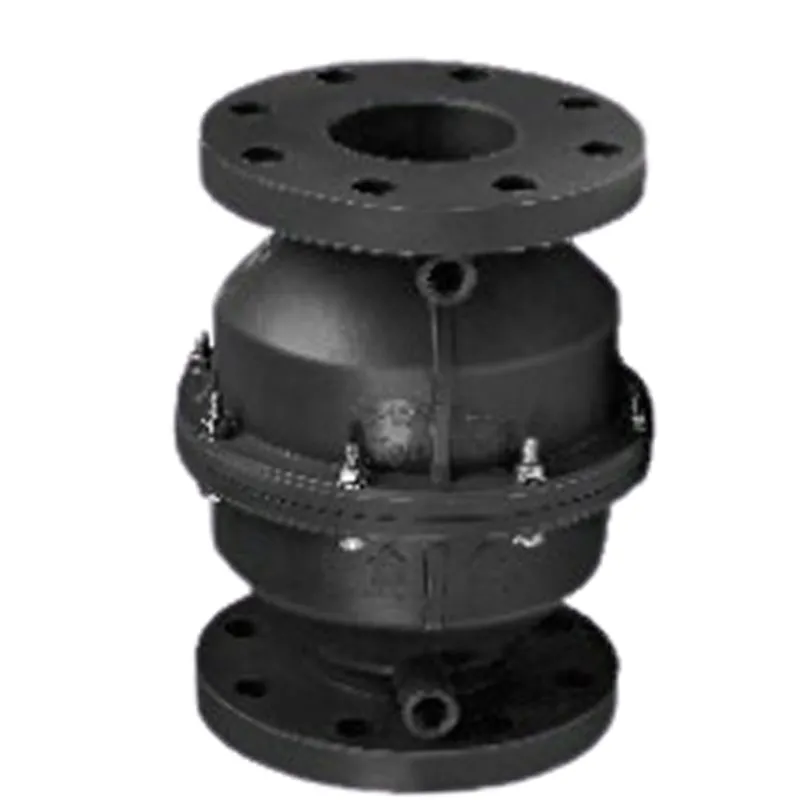

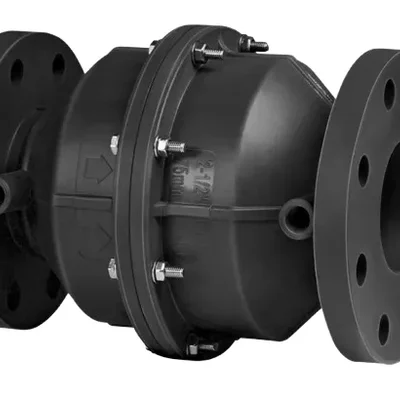

Automat Spring Loaded Ball Type Plastic Check Valve Socket Type(Size-2 Inches)
SKU: SK-AM-20232146-C1
MRP : ₹959
Offer Price : ₹799 (Including GST)
Get extra ₹12 Discount (On Checkout)
Delivery By: Dec 31 - Jan 2
Qty:
BUY IN BULK
Size:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Automat Spring Loaded Ball Type Plastic Check Valve
Spring Loaded Guided Ball for Smooth and Quick Operation
Country of origin: India
Description
Automat Spring Loaded Ball Type Plastic Check Valve Socket Type
Description :
- The Automat Spring Loaded Ball Type Plastic Check Valve allows the flow of water in one direction to avoid the reverse flow during the closure of pump. It prevents leakage from Ball seal at lower pressure.
- It delivers high volume of water quickly with unrestricted full flow. The product has unique and cost effective design with high performance.
- Delivers High Volume of water quicky with unrestricted full flow.
- Guided Ball for smooth operation.
- Polypropylene Materlal gives encellent chemical and corrosion resistant.
- Prevents leakage from Ball seal at lower pressure.
- Spring Loaded Gulced Ball for smooth & quick operation.
- Inlet Pressure port can be use for priming of pump.
- Arrow for correct installation of Check valve.
- Unversal Flange connection comply muiti-international Flange standards.
Features :
- Light weight
- Horizontal and vertical installation
- High performance and cost effective design.
- Spring Loaded Guided Ball for smooth and quick operation.
- Polypropylene Material gives excellent chemical and corrosion resistant.
- Two Pressure Ports.
- Arrow for correct installation for check valve.
- Inlet Pressure port works as indicator for priming of pump.
Specifications :
- Product Type : Check Valve
- Brand : Automat
- Material : Polypropylene
- Max. Operating Pressure : 6.0 kg/cm
- Min. Cracking Pressure: Valve begins to open at 2 to 3 psi
- Flange Dimensions Suited for Standard : BS10 (Table D & E), ANSIClass 125/150, ISO 7001 (DIN), BS EN 1092
- Clean Passage Area is more which Leads to Minimal Head Loss : (< 0.15 Kg/cm') at nominal flow rate
- Weight of 2 inch Plastic Check Valve : 700 g (Approx)
- Weight of 2.5 inch Plastic Check Valve : 900 g (Approx)
- Weight of 3 inch Plastic Check Valve : 1.2 Kgs (Approx)
Applications :
- For use after pumps and boostes, lateral plots, fitration systems, swimming and as a foot check valve for pumping from ponds
- Recommended in micro/drip irrigation systems as a safety valve to prevent the water hammer and to maintain water column in delivery pipe.
Specifications
:- Product Type: Irrigation Accessories
- Brand: Automat
