Brand: Generic (Imported)

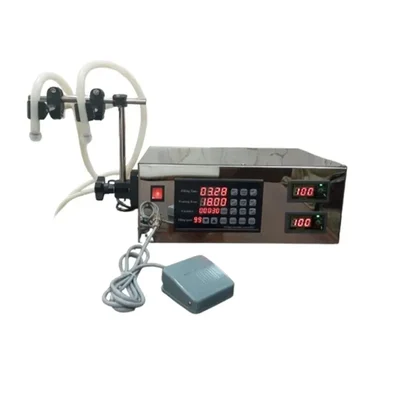

Heavy Duty LT130 Double Head 10 to 5000ml Liquid Filling Machine (with Free Accessories)
SKU: AK-SV-20236336
₹12599 (Including GST)
Get extra ₹189 Discount (On Checkout)
Delivery By: Feb 10 - Feb 12
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heavy Duty Double Head 10 to 5000ml Liquid Filling Machine
10ml - 5000 ml Filling Range
Maximum Speed is 3.5 liter/min x 2 Lines
Country of origin: China
Description
This Electric Liquid Filler can be applied in various industries like pharmaceutical, food, beverage products, cosmetics, and Chemical Industries as this bottle-filling machine is suitable for various kinds of liquid with low viscosity.
Features
:- Particle-free filling of bottles
- Non-corrosive
- Suitable for various kinds of liquid
- Adjustable time intervals
The Pump Head is Anti-Erode Glove & Anti Corrosion.
- Filling Range can be from 10 ml Depending on the Filling Time You Set.
- Thermal protection, continuous no-load operation for a long time, continuous load operation for a long time, drip leakage prevention and so on
- Pedal mode and Automatic mode, please select one mode before use, two modes can be switched freely.
- LCD display, Anti-drip design; Easy to operation, Optimized operation interface and operation logic, the fuselage is made of stainless steel, meet GMP requirement
Specification
:- Product Type: Liquid Filler
- Brand: Generic (Imported)
- Weight (Approx.) : 5 kg
- Body Material : Stainless Steel
- Automation Grade : Semi-Automatic
- Voltage : 220V
- Frequency : 50/60Hz
- Wattage : 120 W
- Deviation : ±2%
- Filling Range : 10ml - 5000ml
- Maximum Speed : 3.5 liter/min x 2 Lines
- Filling Precision : 2% (Approx.)
- Nozzle dimensions : 12 mm each
- Maximum suction Distance : 2 meter (Approx.)
- Weight : 5 Kg (Approx.)
Note : Not applicable for acidic liquid (Eg. : Thinner)
Accessories
:- Pedal Switch : 1 Piece
- Manual Book : 1 Piece
- Screwdriver : 1 Piece
- L-Key: 1 Piece
- Nozzle Stand: 1 Piece
Usage
:1. Setup the Machine :
- Place the machine on a stable, flat surface.
- Ensure that it is connected to a power source and turned on.
2. Adjust the Filling Volume :
- Use the digital display to set the desired filling volume between 10 ml and 5000 ml.
- Confirm the settings by pressing the appropriate button.
3. Prepare the Liquid :
- Ensure that the liquid to be filled is in a suitable container.
- Check for any clogs or blockages in the filling nozzle.
4. Position Containers :
- Place empty containers under the filling nozzle, ensuring they are aligned properly.
5. Start Filling Process :
- Press the padel switch to begin filling.
- Monitor the process through the digital display for accuracy.
6. Stop and Clean :
- Once filling is complete, release the padel switch & turn off the power switch.
- Clean any spills and ensure that all parts of the machine are free from residue before storage.
Maintenance :
- Check for Wear and Tear : Regularly inspect all components, including hoses, nozzles, and seals, for signs of wear or damage. Replace any worn parts promptly to maintain optimal performance.
- Storage Conditions : When not in use, store the machine in a dry, clean environment to protect it from dust and moisture which could affect its functionality.
Applications
:- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 10 ml to 5000 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 36.1 cm X 32 cm X 18 cm
Package Weight
:
5.40 Kg
