Brand: Generic ( Made in India )

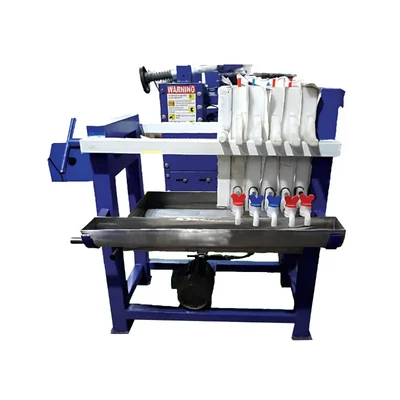

Automatic Oil Filter Press (Mini), 50-70 Liters Per Hour
SKU: TI-PE-17023
Price : ₹76800 (Including GST)
Qty:
Get Best Price
Short Description
Automatic Oil Filter Press Machine,
50-70 Liters Per Hour Production Capacity
Country of origin: India
Description
Oil filter press machine is a commonly used machine in oil production processes, especially in the production of edible oils. It is designed to remove impurities and solid particles from crude oil to produce a high-quality oil.
The process of oil filtration typically involves several steps, including the following :
Pre-treatment : In this step, the crude oil is cleaned and sorted to remove any impurities, such as dust and stones.
Filtration : The filtered oil is then passed through a filter medium, such as filter cloth or filter paper, to trap the impurities and solid particles. The filter medium is typically housed in a filter press, which is designed to apply pressure to the oil to force it through the filter medium.
Collection of impurities : The impurities are collected on the filter medium and can be easily removed and discarded.
Purified oil : The purified oil is collected and further processed or packaged for sale.
Filtration : The filtered oil is then passed through a filter medium, such as filter cloth or filter paper, to trap the impurities and solid particles. The filter medium is typically housed in a filter press, which is designed to apply pressure to the oil to force it through the filter medium.
Collection of impurities : The impurities are collected on the filter medium and can be easily removed and discarded.
Purified oil : The purified oil is collected and further processed or packaged for sale.
Features
:- Design and Construction : The Oil filter press is typically constructed with robust materials such as stainless steel and mild steel to withstand high pressures and corrosive environments.
- Filtration Process : The machine operates by applying pressure to the mixture of oil and solid particles. This pressure forces the liquid through filter cloths or membranes while retaining the solid particles on the surface.
- Efficiency : One of the primary features is their efficiency in separating solids from liquids, which results in high-quality filtered oil with minimal impurities.
- Ease of Maintenance : Oil filter presses are designed for easy maintenance, with accessible components that facilitate cleaning and replacement of filter cloths when necessary.
Specification
:- Product Type: Oil Processing Machine
- Brand: Generic ( Made in India )
- Product Type : Oil Filter Press
- Brand : Generic (Made in India)
- Motor & Pump : 1 HP
- Motor RPM : 960 RPM
- Phase : 3 Phase/ 1 Phase
- Capacity : 50-70 Liters Per Hour
- Body Material : Mild Steel with Stainless Steel 304 Oil Tray
- Filter Plates : Polypropylene - 12 x 12 inches (30.48 x 30.48 cm)
- No. of Plates : 5
- Cloth : Cotton/ PP/ Non Woven/ Spun
- Power Consumption : 0.75 Unit/hr.
- Axil Shaft : EN 19 Grade Shaft
- Dimensions (L x W x H) : 5 x 2 x 4 Feet (1.52 x 0.60 x 1.21 m)
Applications
:The oil filter press is used in various applications to filter impurities from different types of oils. These are just a few examples of how oil filter presses are essential across different industries for maintaining the quality and purity of various types of oils.
Power Plants and Industrial Enterprises: The oil filter press is utilized in power plants, industrial and mining enterprises, and substations to filter water and impurities from transformer oil, turbine oil, and other liquid oils.
Tractor Stations: It is used in tractor stations to purify lubricating oils, ensuring the smooth operation of machinery.
Petroleum Industry: In the petroleum industry, the oil filter press helps remove contaminants from oils used in various processes.
Chemical Industry: Oil filtration is crucial in the chemical industry to maintain the quality of oils used in production.
Metallurgy: The metallurgical industry employs oil filter presses to ensure the purity of oils used in metal processing.
National Defense Industry: In defense applications, the oil filter press plays a vital role in maintaining the integrity of hydraulic oils and lubricants.
Aviation Industry: Aviation hydraulic oils undergo filtration using oil filter presses to meet stringent quality standards for aircraft operations.
