Brand: Generic (Imported)

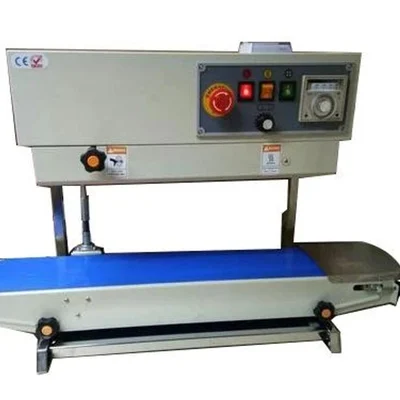

Heavy Duty MS Vertical Band Sealer, 500 W with Nitrogen Flush
SKU: AK-AP-20211589
MRP : ₹27800
Offer Price : ₹24200 (Including GST)
Get extra ₹363 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
MS Continuous Band Sealer Vertical with Nitrogen Flush 500 W
Sealing width 6-12 mm
Max conveyor load 3 Kg
Country of origin: China
Description
This vertical band sealer can continuously seal the high graded pouches such as laminated pouches. It is ideal for sealing packages in the food, general merchandise, spice, seed, and chemical industries and is incredibly simple to use. This band sealer is composed of high-quality materials, which make it sturdy and extends the machine's life. It has 3 kg of conveyor loading capacity and 0-12 m/min of sealing speed, so it can save labor time and effort. This machine is able to increase packaging against heavy production.
Features
:- Premium quality heavy duty machine.
- Fast sealing machine.
- Time saver.
- Easy to operate.
Specification
:- Product Type: Vertical with Nitrogen
- Brand: Generic (Imported)
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 500 W
- Sealing speed : 0-12 m/min
- Sealing width : 6-12 mm
- Temperature range : 0-3000C
- Max transport weight : 3 Kg
- Package Material : High Graded Pouches, such as laminated Pouches.
- Dimensions (L x W x H) : 860 x 420 x 365 mm
- Product Weight : 14 Kg (Approx.)
NOTE : Suitable for High Graded Pouches, just like laminated Pouches.
Usage
:- Preparation of Equipment : Ensure that the MS Vertical Band Sealer is properly set up and connected to a nitrogen gas supply. Check all connections for leaks.
- Adjusting Settings : Set the temperature and sealing time on the control panel according to the material being sealed.
- Nitrogen Flush Setup : Connect the nitrogen flush system to the sealer. This typically involves attaching a nitrogen gas line to the designated inlet on the sealer. Adjust the nitrogen flow rate as recommended.
- Loading Packages : Place your product in the packaging material and position it correctly at the entrance of the sealer. Ensure that there are no obstructions and that the film is aligned properly for an effective seal.
- Initiating Sealing Process : Start the sealing process by activating the machine. The vertical band sealer will pull the package through, applying heat and pressure while simultaneously flushing with nitrogen.
- Post-Sealing Inspection : Once sealed, inspect packages for proper seals and check if they are free from air pockets.
Maintenance :
- Check Temperature and Pressure Settings : Ensure they are within the recommended range.
- Inspect Sealing Jaws : Look for any damage or wear and tear.
- Clean Sealing Jaws : Use a soft cloth and a non-abrasive cleaning solution.
- Clear Debris : Remove any packaging material from the machine to prevent jams.
Applications
:- Food Packaging : One of the primary applications of the MS Vertical Band Sealer is in the food industry. It is particularly effective for packaging perishable items such as seafood, meats, snacks, and other food products.
- Chemical Products : In addition to food, this sealer is also used for packaging chemical products. Many chemicals are sensitive to air exposure and moisture; therefore, using a nitrogen flush during sealing prevents contamination and degradation of these substances.
- Daily Use Products : The MS Vertical Band Sealer finds applications in packaging everyday consumer goods such as toiletries, cleaning supplies, and personal care items.
- Electronics Packaging : For electronic components and devices, moisture control is critical to prevent damage during shipping and storage.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 89.1 cm X 43 cm X 34.5 cm
Package Weight
:
17.55 Kg
