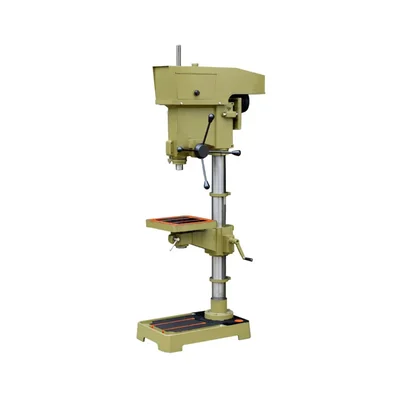

Commercial Bench Drill Machine 25 x 170 mm without Motor with Gear (Suitable For 2-3 HP Motors)

• The bench drill is used for heavy-duty drilling and making holes in wood, metal, aluminum steel, etc.
• These machines are primarily used for several drilling purposes and are configured on the lines of advanced technological procedures.
• Bench pillar drill or pedestal drill as it is called is used mainly in workshops, garages, and small industries where very accurate vertical drilling is required.

• Ergonomically Design
• For Commercial Usage
• Efficient Usage

• Product Name : Bench Drill Machine

• Brand : Generic (Made in India)
• Required Motor : 2-3 HP
• Tilting Working Table : Fixed
• Drilling Capacity : 25 mm
• Pillar Diameter : 92 mm
• Table Travel  : 420 mm
• Taper In Spindle : MT-4
• Number Of Speed : 8 Speed
• Range Of Speed : 75 to 1970 RPM
• Table Size : 330 x 330 mm
• Base Size(m/a area in mm) : 365 x 580 mm
• Over All Base Size : 370 x 585 mm
• Spindle Travel : 240 mm
• Pillar Length : 1410 mm
• Over All Height With Pulley Guard : 1730 mm
• V-Belt Section : B-52"
• Spindle Nose To Base Distance : 650 mm
• Distance from spindle nose to base distance : 1060 mm

• Distance From Spindle Centre To Pillar Surface : 170 mm
• Shipping Dimension (L x W x H) : 850 x 450 x 1770 mm
• Weight : 48 kg (Approx.)

Specifications
