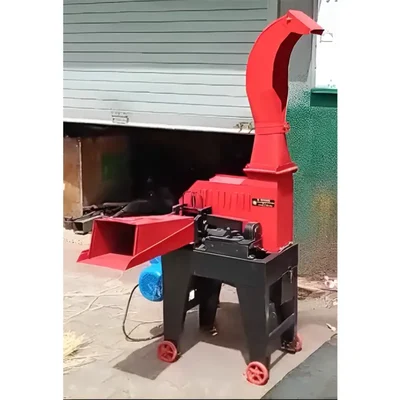

Blower Type Chaff Cutter/Grass Cutter Machine Without Motor, 1000-1200 Kgs/Hr Capacity
SKU: TI-BT-12037
₹32100 (Including GST)
MRP : ₹34500
Get extra ₹482 Discount (On Checkout)
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Blower Type Chaff Cutter/Grass Cutter Machine, Without Motor
3-5 HP Required Motor
Cutting Capacity of 600-700 kgs/hr for Dry Fodder and 1000-1200 Kgs/hr for Green Fodder
Country of origin: India
Description
A Blower Type Chaff/Grass Cutter machine is a normally operating chaff cutter with a blower system inside it which is responsible the blow the cut fodder out of the machine. This helps in efficiently separating the cut fodder from the machine, allowing for easier collection and handling of the chopped material. This chaff cutter requires a 3-5 HP motor to conduct it's operation and can easily manage to achieve the cutting capacity of 600-700 kilos for dry fodder and 1000-1200 kilos for green fodder.
Features
:- Efficient Cutting Mechanism : Equipped with sharp blades that facilitate precise and uniform cutting of fodder, enhancing the nutritional quality and palatability of animal feed.
- Integrated Blower Mechanism : Helps separate chaff from cut fodder, reducing manual labor and wastage.
- User-Friendly Interface : Designed for easy operation and maintenance, making it accessible for all users.
- High Cutting Capacity : This blower type chaff cutter has a cutting capacity of 1000-1200 kilos per hour making it suitable for commercial usage as this machine can efficiently carry out high volume fodder cutting operations.
Specification
:- Brand: Marvel
- Material : Mild Steel
- Required Motor : 3-5 HP
- Power Source : Electric
- No. of Blades : 6 Rotational 1 Fixed & 24 Hammer Blade Included
- Blade Type : Double Sided
- Blade Size : 7 inch (17.78 cm)
- Blade Material : High Carbon Steel Blade
- Cutting Size : 10 to 15 mm
- Output Capacity : 1000-1200 kg/hr (Green Fodder)
- Output Capacity : 600-700 kg/hr (Dry Fodder)
- Roller Size : 7 inch (17.78 cm)
- Dimension (L x W x H) : 23.4 x 14.7 x 51.1 Inches (59.43 x 37.33 x 130 cm) (Approx.)
- Weight : 70 Kg (Approx.)
Note : Color may vary.
Usage
:Step 1 : Set Up the Chaff Cutter
- Location : Position the chaff cutter in a dry, stable area that’s convenient for fodder access and animal feeding.
- Check Power Supply : For electric models, ensure that you have a reliable power source.
- Ensure Safety Features : Verify that all safety guards and covers are in place to protect users from the cutting blades.
Step 2 : Prepare the Fodder
- Choose Your Fodder : Common types include hay, grass, and straw.
- Moisture Content : Check the moisture content of your fodder. Ideal moisture levels assure better cutting and nutrient retention.
Step 3 : Operating the Chaff Cutter
- Start the Machine : Plug in and switch on the power.
- Feed the Fodder : Slowly feed small batches of fodder into the machine's intake. Avoid overloading to prevent jams.
- Monitor the Output : Watch for any signs of strain on the machine. If the cutter slows down, pause feeding.
- Collection : Direct the output into a collection container or feeding trough. Make sure the area is clear of obstacles to avoid accidents.
Step 4 : Cleanup and Maintenance
- Turn Off and Unplug : After use, ensure the machine is turned off and unplugged before performing any maintenance.
- Clean the Blades : Remove any residual fodder to keep the blades sharp and reduce wear.
- Inspect Regularly : Routinely check for wear and tear on the blades, belts, and other moving parts. Replace parts as necessary.
- Store Safely : Keep the chaff cutter in a safe, dry place when not in use to prolong its lifespan.
Applications
:- Fodder Preparation : One of the main uses of chaff cutters is to prepare fodder for livestock. By cutting or shredding straw, hay, and other plant materials into smaller pieces, these machines make it easier for animals to consume and digest their feed. The reduced length of the chaff allows for better mixing with other feed ingredients, ensuring a balanced diet.
- Animal Nutrition : Chaff cutters improve animal nutrition by reducing the particle size of fodder. Finely chopped or shredded fodder increases the surface area available for microbial activity in the rumen of ruminant animals (like cows), which enhances digestion and nutrient absorption.
- Bedding Material Preparation : Chaff cutters can also be used to prepare bedding material from straw or hay. Shredded materials create softer bedding that is more comfortable for livestock and helps maintain a cleaner living environment by absorbing moisture more effectively.
