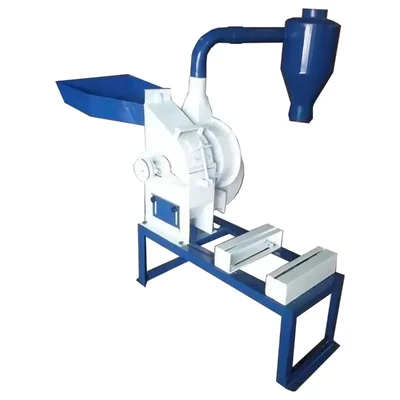

Commercial 10 x 5 inch Blower Type Flour Mill/Pulverizer/Masala Grinder 40 to 50 kg/hr, without Motor
SKU: IN-SAS-200501
₹29899 (Including GST)
Get extra ₹448 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
10 x 5 inch Blower Type MS Flour Mill/Pulverizer Machine/Masala Grinder
Capacity 40 - 50 kg/hr
Required Motor 3 HP, Single Phase
Required Motor 3 HP, Single Phase
Country of origin: India
Description
This Masala Pulverizer Machine is used for grinding various materials into fine powder or particles. It consists of a chamber where the pulverization takes place and has a blower system which helps in transportation of material within the machine. This machine requires a 3 HP single phase motor with chamber size of 10x5 inches (25.4 x 12.7 cm) and capacity of 40-50 kilograms per hour making it perfectly suitable for commercial usage.
Features
:- Durable Construction : Constructed from robust materials and designed to withstand rigorous use and resist corrosion, ensuring longevity and reliability.
- Easy Operation : Blower pulverizers are designed for user-friendliness, featuring intuitive controls that make them accessible for a wide range of users, from home cooks to small business operators.
- Low Maintenance : Designed for minimal maintenance needs, many blower type pulverizers feature easy access to internal components for cleaning and upkeep.
Specification
:- Brand: Generic ( Made in India )
- Material : Mild Steel
- Required Motor : 3 HP
- Phase : Single
- Capacity : 40 - 50 kg/hr
- Grinding Materials : All types of dry products
- Chamber Size : 10 x 5 inch (25.4 x 12.7 cm)
- Dimension (L x H x W) : 26 x 18 x 32 inch (66.04 x 45.72 x 81.28 cm)
- Weight : 54 Kg (Approx.)
Accessories
:- Motor Pulley Belt
- Cotton Bag
Usage
:1. Understand the Equipment :
Before operating the pulverizer, familiarize yourself with its components and functions. A typical commercial blower type pulverizer consists of:
- Feeding System: Where raw materials are introduced.
- Grinding Chamber: The area where the actual grinding occurs.
- Blower System: Responsible for moving the ground material out of the chamber.
- Collection Bag or Container: Where the pulverized material is collected.
2. Prepare Materials :
Prepare the materials you intend to pulverize:
- Size Reduction: If necessary, pre-cut larger materials into smaller pieces that can easily fit into the feeding system.
- Moisture Content: Ensure that materials are dry enough for effective grinding; excessive moisture can lead to clumping and inefficient processing.
3. Set Up the Machine :
Proper setup is crucial for optimal performance:
- Positioning: Place the pulverizer on a stable surface away from other equipment or flammable materials.
- Connect Power Supply: Ensure that the machine is connected to an appropriate power source.
4. Operating Procedures :
Follow these steps during operation:
- Start-Up Sequence: Turn on any necessary switches or controls as per manufacturer instructions. Allow the machine to reach operational speed before introducing materials.
- Feeding Materials: Gradually feed materials into the feeding system while monitoring performance. Avoid overloading as it can cause jams or reduce efficiency. Use a consistent feed rate for uniform particle size.
- Monitoring Performance: Observe the sound and vibration levels during operation; unusual noises may indicate issues with grinding or blockage. Check temperature levels if applicable; overheating can damage components.
5. Collection of Pulverized Material :
Once grinding is complete:
- Stop the Machine: Turn off all controls before attempting to collect material.
- Remove Collection Bag/Container: Carefully detach it from the machine, ensuring not to spill any contents.
Maintenance :
- Daily Cleaning: After each use, clean the exterior of the pulverizer to remove dust and debris. Use a soft brush or cloth.
- Lubricate Bearings: Follow the manufacturer’s recommendations regarding lubrication frequency and type of lubricant used.
- Electrical Connections: Inspect all electrical connections for corrosion or loose wires.
- Schedule Routine Checks: Create a maintenance schedule based on usage patterns to ensure timely interventions.
- Annual Inspections: Engage qualified technicians for comprehensive inspections annually to address any underlying issues not visible during routine checks.
Applications
:- Food Processing Industry: Blower type pulverizer machines are commonly used in the food processing industry to grind grains, herbs, and spices into fine powders. These machines help in preparing food ingredients efficiently.
- Agricultural Industry: In the agricultural sector, blower type pulverizers are used for grinding grains and preparing animal feed. They play a crucial role in processing agricultural products for livestock.
- Small-Medium Scale Industries: Due to their compact design and versatility, these machines are suitable for small-medium scale industries that require efficient grinding of materials but have limited space available.
Toolsvilla deals with various types of Food Processing Machinery. Wide varieties of Pulverizer Machine are used to grind Wheat, Besan, Rice, Turmeric, Corn, Ambala, Herbs, Jawar, Millet, Chilly, Spices, Cattle Feed, and so on.
