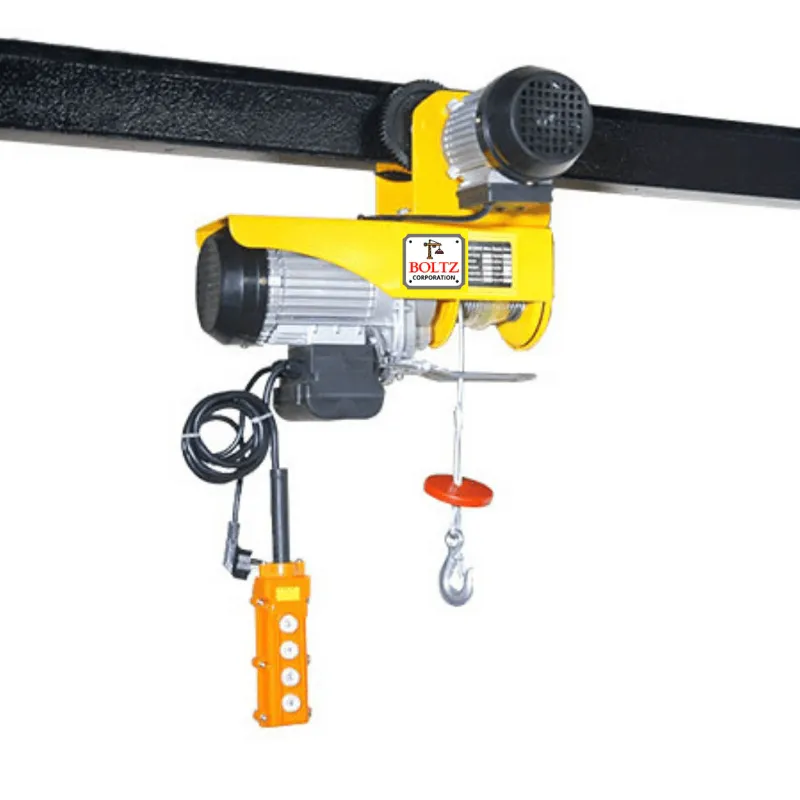

Boltz PA 1500 Electric Hoist With Electric Travelling Trolley With 3 HP Copper Winding Motor & 20 Meter Long Wire Rope

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Mini Electric Hoist 750/1500kg with Double Hook is capable of lifting 1500kg of weight with the aid of double hook.

Electric Hoist with motorized Travelling Trolley

1500 KG Lifting Capacity

20-meter long,8 mm Wire Rope

Travelling Trolley motor power is 1 Hp

Operating Mode: Horizontal (Straight Line)

Remote Remote-controlled electric hoist

This Travelling Trolley Is Suitable For 6 x 4 Inch I-Beam

Country of origin: China

Description

Boltz PA 1500 Electric Hoist With Electric Travelling Trolley With 3 HP 100% Copper Winding Motor & 20 Meter Long Wire Rope

Description :

• Electric hoists are a type of material handling tool used for raising, lowering, and moving goods. They have an electric motor that propels them overhead. Electric chain hoists and electric wire rope hoists are the two primary varieties of electric hoists.
• With a specially designed rope guide system to avoid rope slackening, this Electric Travelling Trolley has a built-in electrical control panel. Low noise operation is best suited to its medium-duty application design.

Features :

• Low Noise
• Minimal Maintenance Required
• Increases Work Speed
• With Stops Hook
• Wide Customizations To Suit Your Requirements
• Powerful pure copper wire motor
• 4mm-8mm Unbreakable anti-rotation wire
• Smooth stopping action prevents damage to cable and assembly
• High-speed & low maintenance
• Includes manganese hook for better grip and durability
• Splash-proof remote with an urgent button
• Compact and small size design
• Long life span and high efficiency
• Applicable for most industry, business, handicraft industry and service industry
• Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications :

• Product Type : Electric Travelling Trolley With Hoist
• Model No : PA 1500 With Trolley
• Brand : Boltz
• Phase : Single Phase
• Motor Power : 3 HP
• Working : Remote Controlled
• Lifting Height : Single Hook-20m, Double Hook-10m
• Lifting Speed : Single & Double Hook : 18 m/min
• Use Method : Single Hook & Double Hook
• Wire Rope Length : 20 meter
• Wire Rope Dia. : 8 mm
• Single Hook Load Capacity : 750 kg
• Double Hook Load Capacity : 1500 kg
• Suitable I-Beam : 6 x 4 Inch
• Rated Voltage : 220-240 V
• Continuous Working Capacity : 2 hours (Approx.)

Electric Travelling Trolley

Specification :

• Motor : 1 hp
• Rated Voltage : 220V
• Winding : Pure Copper Winding Motor
• Operating Mode : Horizontal (Straight Line)

Application :

• Warehouses, automotive servicing, machine shops, manufacturing facilities, factories, building sites, and railroad construction.

In The Box :

• 1 Electric Hoist.
• 1 Electric Hoist Remote.
• 1 Eye Hook.
• 1 Pulley Hook.
• 20-meter Wire Rope.
• Mounting Case
• Nut bolts and Clamps
• 1 Electric Travelling Trolley.

Note :

• All these accessories are assembled with the machine.
• The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.

Specifications

 :

• Brand: Boltz
• Power : 3 hp
• Weight (Approx.) : 45.2 kg
• Load Capacity : 1500 kg
