Brand: CRI

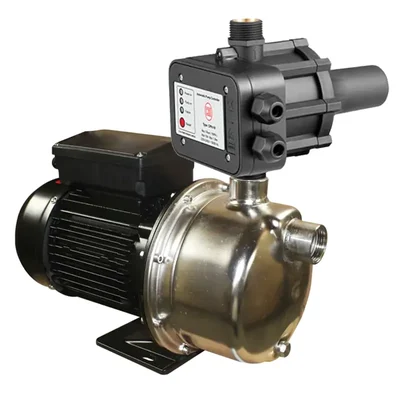

CRI 1Hp Single Phase SS Pressure Booster Pump With Automatic Pump Controller, 40m Head (JTS Series)- 1 Year Warranty
SKU: TI-C1-20842
MRP : ₹15000
Offer Price : ₹11700 (Including GST)
Get extra ₹176 Discount (On Checkout)
Delivery By: Dec 30 - Jan 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
C.R.I. 1 Hp 1Ph Water Pressure Booster Pump With Controller
40m Max. Head, 62 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
C.R.I. S.S. JTS Series booster pumps are carefully designed to give best hydraulic efficiency and suction lift characteristics. Most modern and highly sophisticated machinery and technology are employed in the manufacture of these pumps, using quality raw material, seals and ball bearings to ensure long life. Dynamically balanced rotor ensures vibration free and noise free operation. All single phase pumps are in-built with thermal overload protector to prevent overload. High operating efficiency of these pumps result in low power consumption.
Features
:- In built Thermal Overload Protection
- Hygienic pumping system
- Backpull-out design for easy servicing and repair
Specification
:- Product Type: Power - 1HP
- Brand: CRI
- Series : JTS Series
- Product Type : Water Pressure Booster Pump
- Brand : C.R.I.
- Power : 1 Hp (0.75 kW)
- Electricity Connection : Single Phase
- Rated Voltage : 220 Volt, 50 Hz AC Power Supply
- Nominal Pump Size (Suction X Delivery) : 25X25 mm
- Head Range : 40 to 10 Meter (131 to 32 Feet)
- Discharge Range : 0 to 62 LPM (0 to 3720 LPH)
- Max. Suction Lift : Upto 8 Meter
- Speed : 2900 RPM
- Degree Of Protection : IP 54
- Class Of Insulation : B
- Direction Of Rotation : Clockwise viewed from driving end
- Type Of Duty : S1
- Max. Liquid Temperature : +5°C to +60°C
- Max. Ambient Temperature : 40°C
- Weight : 14.2 Kg (Approx.)
Material Of Construction :
- Pump Casing : SS 304
- Motor Frame : Aluminium
- Impeller : SS 304
- Shaft : SS 304
- Shaft Sealing : Mechanical Seal (Carbon & Ceramic)
Accessories
:- Automatic Pump Controller
Applications
:- Domestic Water Boosting
- Food Processing
- Industrial Water System
- Gardening
- Car Washing
WARRANTY :
- 1 Year Warranty on Manufacturing Defects Only.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 58 cm X 32 cm X 28 cm
Package Weight
:
14.82 Kg
