Brand: Packlift

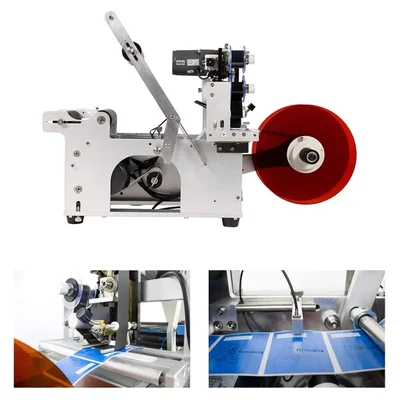

Round Bottle Label Machine 120W with Coding Printing
SKU: DAR-SH-2177
₹62000 (Including GST)
MRP : ₹68000
Get extra ₹930 Discount (On Checkout)
Delivery By: Feb 11 - Feb 13
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Round Bottle Label Machine 120W with Coding Printing
25-50 pcs per mins Labelling Speed
15-315 x 8-150 mm (L x W) Labelling Size
Country of origin: China
Description
This Automatic Round Bottle Labeling machine is suitable for the application of stickers onto the bottle. The use of labelling machinery not only packs production output but also greatly reduces input costs and increases manufacturers' production vitality. This machine requires the operator to manually place the bottle into the labelling system, after which the machine takes over to apply the label accurately.
Features
:- Labelling speed is up to 50 times/minute.
- Labelling bottle size is adjustable to meet the different labelling needs.
- Excellent effect can be delivered for labels with no wrinkles and no bubbles.
- Choosing brand PLC and sensor etc electronic components which work stably.
- Modular design, convenient maintenance and low repair cost.
Specification
:- Product Type: Adhesive Sticker Label
- Brand: Packlift
- Weight (Approx.) : 30 kg
- Model No. : MT-50C
- Voltage : 220V/100V
- Power : 120 W
- Phase : Single
- Frequency : 50 Hz
- Bottle Type : Round
- Labelling Speed : 25-50 pcs per mins
- Labelling Accuracy : ±0.5 mm
- Label Roll Inner Diameter : 76 mm
- Label Roll Outer Diameter : 250 mm
- Bottle Size Diameter : 15-120 mm
- Label Size (L x W) : 15-315 x 8-150 mm
- Coding Line : 2 or 3 lines
- Dimension (L x W x H) : 650 x 450 x 450 mm
- Weight : 30 Kg (Approx.)
Toolsvilla deals in various types of Packaging Machinery. Wide variety of Labelling Machines are used to apply labels to various products and packages in cosmetics, beverage, foodstuff, food, medical industries.
Usage
:1. Setup the Machine :
- Place the machine on a stable, flat surface.
- Ensure that it is plugged into a power source and turned on.
2. Prepare the Labels :
- Select the appropriate adhesive labels for your round bottles.
- Load the labels onto the label holder, ensuring they are aligned correctly.
3. Adjust Settings :
- Set the desired labeling speed using the control panel.
- Adjust the sensitivity of the label optical eye to match your label’s backing paper.
4. Positioning Bottles :
- Place a bottle in position under the labeling head.
- Ensure that it is properly aligned for accurate labeling.
5. Start Labeling Process :
- Press the handle to begin labeling.
- Monitor the process to ensure labels are applied correctly.
6. Coding Printing (if applicable):
- If coding is required, set up your coding printer according to its manual.
- Ensure that it is synchronized with the labeling machine for proper placement of codes on each bottle.
7. Quality Check:
- After a batch, check several bottles for correct label placement and print quality.
- Make any necessary adjustments based on your observations.
Maintenance :
- Debris Inspection : Before using the machine, check for any debris on the peeling plate, ribbon, and labeling mechanism. Clean any debris found.
- Power Supply Verification : Confirm that the power supply is normal and that there are no damages to the power cord.
Applications
:- Food and Beverage Industry : Essential for labeling products like sauces, beverages, oils, and dairy items.
- Pharmaceuticals : Used to label medicine bottles accurately, ensuring compliance with regulatory standards.
- Cosmetics : Perfect for labeling round bottles of cosmetics like lotions, shampoos, and oils.
- Retail Packaging : Ideal for labeling products in retail stores, providing a professional and consistent appearance.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 10 cm X 10 cm X 10 cm
Package Weight
:
30.00 Kg
