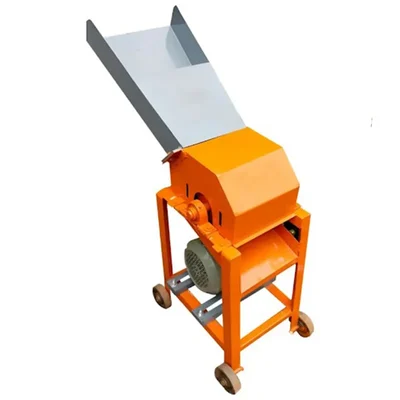

Hari Oum 1.5 HP Chaff/Chara Cutter With 500 Kg/hr Cutting Capacity, Mild Steel Body
SKU: SD-HC-20232646
₹19700 (Including GST)
MRP : ₹20600
Get extra ₹296 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Hari Oum Chaff Cutter/Grass Cutter Machine with Motor
Cutting Capacity 500 kg/hr
Motor Power 1.5 HP
Country of origin: India
Description
Hari Oum chaff cutter machine is basically used to cut straws, grass, dry and wet fodder, which are then turned into feed for cattle. This machine can easily cut the plant products into small uniform pieces which are later on mixed with other forage materials and fed to cattle or livestock. This machine is equipped with a 1HP motor which provides ample power to the machine to conduct it's cutting tasks. The machine is made up using mild steel material and has a high volume cutting capacity of 500 kilos making it suitable for commercial usage.
Features
:- Efficient Cutting: Chops up fodder quickly for easy feeding.
- Durable Build: Made of sturdy materials which adds up to overall longevity and durability.
- User-Friendly: Simple to operate, even for beginners.
- Low Maintenance: Easy to clean and maintain, saving you time.
- Versatile Use: Great for both dry and green fodder.
Specification
:- Brand: HARI OUM
- Material : Mild Steel
- Weight (Approx.) : 60 kg
- Model No. : H-400
- Motor Power : 1.5 HP
- Power Source : Electric
- No. of Blades : 3 (2 Rotating and 1 Fixed)
- Output Capacity : 500 kg/hr
- Machine Feed : Straw, Corn Stalk, Sugarcane Stalk
Warranty Parts: Motor
Note:
- Covered in Warranty : Manufacturing Defects
- Not Covered in Warranty : Physical Damage
- The cutting size is not fixed.
- Color of the machine may vary.
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
