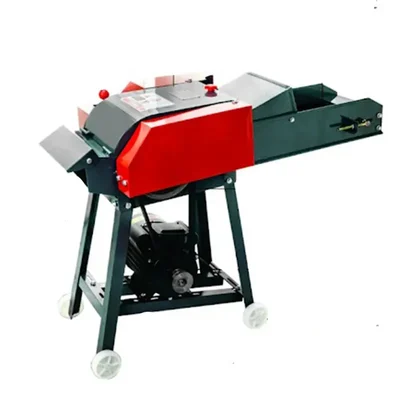

Premium Quality 3 HP Chaff/Fodder Cutting Machine With Gear & Conveyor Belt, 400-1200 Kg/hr Cutting Capacity
SKU: TI-PQ-22111
₹26789 (Including GST)
Get extra ₹402 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Premium Quality Chaff/Fodder Cutting Machine With Gear & Conveyor Belt,
Motor Power 3 HP, Iron Body
400-1200 Kg/hr Cutting Capacity
Country of origin: China
Description
The Chaff cutter with conveyor belt is a highly efficient agricultural machine designed to streamline the process of cutting fodder. Engineered for optimal performance, the chaff cutter boasts sharp, high-quality blades that deliver uniform cutting, enhancing the quality of feed for livestock. Its user-friendly operation and robust construction make it an essential tool for farmers seeking to improve their forage preparation processes while saving time and labor.
Features
:- Conveyor Belt : This chaff cutter is equipped with a conveyor belt which automatically intakes the feed material when placed on it.
- Gear Operated : The cutting size of the fodder can be controlled using the gear, which gives the user the freedom to cut the raw material into desired sizes.
- High Cutting Capacity : This machine is capable of achieving the cutting capacity of 400-1200 kilos making it suitable for domestic and commercial grade fodder cutting operations.
Specification
:- Brand: Generic (Imported)
- Material : Iron
- Motor Power : 3 HP
- Motor Speed : 1400 RPM
- Gear : Yes
- Conveyor Belt : Yes
- No. of Blades : 4
- Blade Material : Manganese Blades
- Cutting Capacity : 400-1200 Kg/hr
- Cutting Size : 10-35 mm
- Weight : 68 Kg (Approx.)
Accessories
:- 1 x Pulley
- 1 x V-Belt
Usage
:1. Setting Up the Chaff Cutter:
- Positioning: Place the chaff cutter on a flat, stable surface where it can operate safely. Ensure there is enough space around it for operation and maintenance.
2. Loading Materials:
- Prepare Feed Materials: Cut straw, hay, or other feed materials into manageable lengths if necessary. This helps in smooth feeding into the cutter.
- Feed Material into the Inlet: Gradually load the prepared materials onto the conveyor belt. Avoid overloading as this can cause jams or reduce efficiency.
3. Operating the Chaff Cutter:
- Start the Motor: Turn on your power source to start the motor connected to your chaff cutter.
- Monitor Operation: Keep an eye on how well materials are being fed into the machine and adjust as necessary. The conveyor belt should move smoothly without any interruptions.
4. Collecting Processed Chaff:
- Direct Output Collection: Position containers or bags under the discharge area of the chaff cutter to collect processed chaff efficiently as it exits from the machine.
- Regular Checks: Periodically check for blockages in both cutting and conveyor areas during operation to maintain efficiency.
5. Turn Off Equipment:
- Once you finish using the chaff cutter, turn off your power source before performing any maintenance tasks.
- Remove any residual material from both cutting blades and conveyor belts to prevent rust or damage.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Animal Feed Preparation: The foremost application of the chaff cutter is to prepare feed for livestock, including cattle, goats, and sheep. By cutting fodder into manageable sizes, it aids in efficient digestion and nutrient absorption.
- Reduction of Waste: By efficiently processing leftover crops and residues, chaff cutters help minimize agricultural waste. This not only conserves resources but also contributes to sustainable farming practices.
- Enhanced Feeding Efficiency: The uniformity in size achieved by using a chaff cutter ensures that animals can consume feed more effectively, promoting better feeding habits and improved weight gain.
- Time and Labor Saving: The mechanization of chopping fodder significantly reduces the time and labor required compared to manual cutting, allowing farmers or dairy farm owners to allocate resources to other essential tasks.
