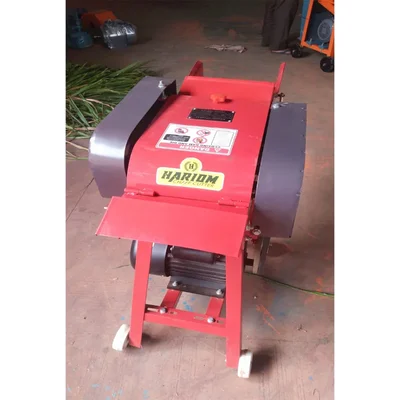

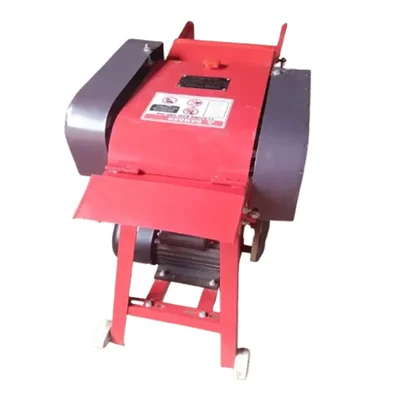

Hari Oum 3 HP Chaff/Chara Cutter Machine for Animal Feed, 400-950 Kg/hr
SKU: TI-HD-20491
₹25200 (Including GST)
Get extra ₹378 Discount (On Checkout)
Delivery By: Apr 8 - Apr 10
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Hari Oum Chaff/Grass Cutter With 3 HP Motor For Animal Feed,
400-900 Kg/hr Capacity, 4 Blades
Mild Steel Body
Country of origin: India
Description
Hari Oum chaff cutter is a mechanical device used to cut straw or hay into small uniform pieces for feeding livestock. The machine consists of 4 blades that chop the fodder into manageable lengths, making it easier for animals to consume aiding their digestion and improving overall health. Chaff/Grass cutter is commonly used in agricultural settings to process green agricultural waste, which is later on mixed with other forage materials making it suitable for consumption for cattle, horses and other livestock. This machine simplifies the chaff cutting process also known as 'chara' in some regional languages, making this machine a perfect fit for cattle and dairy farm owners.
Features
:- High Cutting Capacity: The chaff cutter has a cutting capacity of 400-950 kilos per hour making it suitable for carrying out fodder cutting operations.
- Durable Construction: The Chaff cutter is constructed using high-quality mild steel material which adds up to the overall durability of the machine making it suitable for long term usage.
- Energy Efficiency: Chaff cutters are designed to be energy-efficient, which helps reduce operational costs over time compared to manual cutting methods.
- Low Maintenance Requirements: Due to it's robust construction and high quality build, it requires minimal maintenance, making it convenient for farmers who may not have extensive technical knowledge.
Specification
:- Brand: HARI OUM
- Material : Mild Steel
- Model : NANO
- Motor Power : 3 HP @ 2880 RPM
- No. of Blades : 4 Blades
- Blade Material : Manganese 65 Grade
- Cutting Capacity For Green Grass : 900-950 Kg/hr
- Cutting Capacity For Dry Grass : 400-450 Kg/hr
- Ideal For : 1 - 5 Cattle
- Weight (Without Motor) : 39 Kg (Approx.)
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
