Track OrderBrand: Generic ( Made in India )

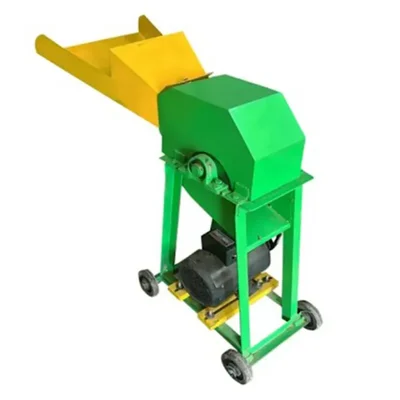

Chaff/Grass Cutter 1 HP For Cattle Feed, 100 to 200 Kg/hr Cutting Capacity
SKU: SI-VC-18597
₹15665 (Including GST)
Get extra ₹235 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Chaff/Grass Cutter Machine For Cattle Feed,
1 HP Motor Power, 100 to 200 Kg/hr Cutting Capacity
2 Rotating & 1 Fixed Blade
Country of origin: India
Description
Chaff/Grass Cutter machine is a mechanical device used for cutting chaff, straw & hay into small uniform pieces before mixing it with other forage materials, making it suitable for consumption by cattle and livestock. This machine is equipped with a 1 HP electric motor, operates semi-automatically and has 2 rotating and 1 fixed heavy duty blades which help in achieving the desired cutting results. This machine reduces the labour and time required to prepare fodder for animals and streamlines the fodder preparation process. It has a cutting capacity of 100 to 200 kilos per hour which makes this machine suitable for high volume fodder preparation and cutting tasks.
Features
:- Cutting Mechanism: Equipped with sharp blades, chaff cutters efficiently chop fodder into small, manageable pieces, promoting better digestion and nutrient absorption for livestock.
- Compact Design: This chaff cutter features a compact and portable design, facilitating easy transportation and use across different farm locations without requiring extensive setup.
- Ease of Maintenance: Chaff cutters are designed for easy maintenance, with accessible components that simplify cleaning, lubrication, and blade replacement.
Specification
:- Brand: Generic ( Made in India )
- Material : Iron
- Weight (Approx.) : 43.00 kg
- Motor Power : 1 HP
- Power Source : Electric
- Operation : Semi-Automatic
- Cutting Capacity : 100-200 Kg/hr
- Machine Feed : Green & Dry Material, Sugar Cane
- Blades : 2 Rotating, 1 Fix
- Blade Size : 6 Inches (15.24 cm)
- Blade Material : EN8 (Unalloyed medium carbon steel)
- Weight : 35 Kg (Approx.)
Note : Cutting Size may vary
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect the motor to a suitable power source in order to begin the fodder cutting operations.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance :
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
