Brand: SPEAR

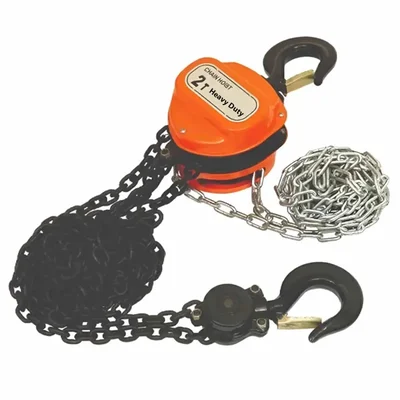

Spear 2 Ton Chain Pulley Block, 3 Meter Chain - 3 Meter Standard Lift, 6 mm Load Chain-Double Fall
SKU: TI-S2-24593
₹3210 (Including GST)
MRP : ₹4500
Get extra ₹48 Discount (On Checkout)
Delivery By: Apr 9 - Apr 11
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Spear 2 Ton Chain Pulley Block
6 mm Load Chain Dia
Standard Lift 3 Meter
Load Chain Length 3 Meter
Country of origin: India
Description
A chain pulley block, also known as a manual chain hoist or chain block, is a mechanical device used to lift heavy loads with minimal effort. It operates by using a chain that is wound around internal gears, allowing the user to raise or lower objects efficiently.
Features
:- Manual Operation : Most chain pulley blocks are operated manually using a hand chain, allowing the operator to control the lifting and lowering of loads effectively.
- Load and Hand Chains : The load chain is made from high-strength steel and is responsible for bearing the weight of the load, while the hand chain is pulled by the operator to initiate lifting.
- Gear System : A sophisticated gear mechanism amplifies the force applied by the operator, enabling the lifting of heavy loads with minimal effort. This mechanical advantage allows for efficient operation.
- Safety Hooks : Chain pulley blocks are equipped with safety hooks designed to securely attach to both the load and the suspension point, preventing accidental detachment during operation.
Specification
:- Brand: SPEAR
- Weight (Approx.) : 8.2 kg
- Load Capacity : 2 ton
- Product Type : Hand Chain Pulley Block
- Brand : Spear
- Capacity : 2000 Kg (2 ton)
- Working : Manual
- Standard Lift : 3 meter
- Load Chain Length : 3 meter
- Material : Alloy Steel
- Fall : Double
- Hand chain Dia. : 5 mm
- Load chain Dia. : 6 mm
Applications
:- Hand Chain Pulley Block or manual hoists are popular and have been used across manufacturing factories, construction sites, and warehouses.
- Also known as chain blocks or chain pulley blocks, chain hoists are used extensively to move heavy loads through chain pulling.
