Brand: Generic ( Made in India )

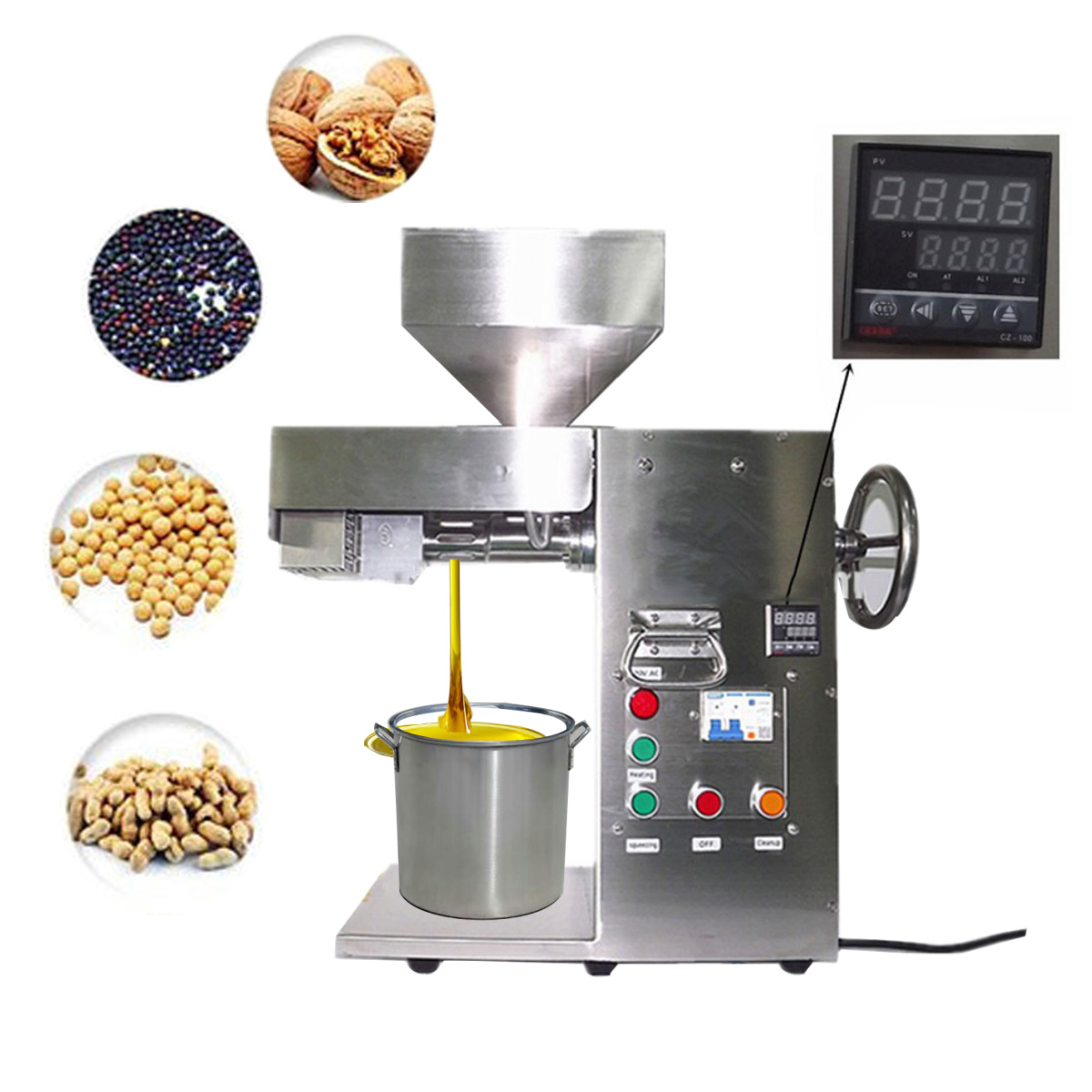

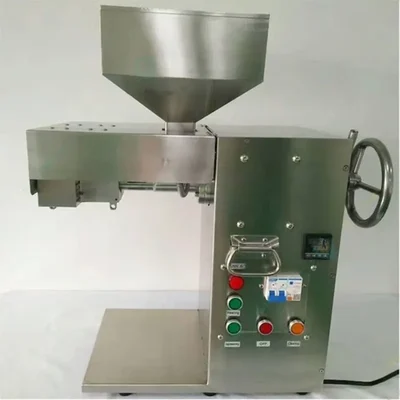

Commercial Multi Oil Seeds Press/Expeller Machine 2000W, up to 20kg per hr with Free Accessories
SKU: DK-SO-2054
₹128950 (Including GST)
Get extra ₹1,934 Discount (On Checkout)
Delivery By: Feb 17 - Feb 19
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Commercial Oil Extraction/Expeller Machine
2000W Rated Power
20 kgs/Hr Capacity
Country of origin: India
Description
A Commercial Oil Filter Machine is used for carrying out the oil filtration process upon following a series of steps. This machine uses a screw mechanism to squeeze the seeds and extract oil from the seeds. The machine is equipped with a 2.5 HP single phase motor with a working capacity of 20 kg per hour depending upon the raw material and the body of the machine is made using food grade stainless steel material which not only makes it durable but also makes it food safe.
Features
:- User-Friendly Operation : Designed with intuitive controls that allow operators to easily manage the extraction process without extensive training.
- Nutrient Preservation : The Oil press machine utilizes squeezing technique without using any sort of additional chemicals, which helps retain the natural nutrients and flavors of the oil, ensuring a healthier end product.
- Versatility : These machines can process a wide range of oilseeds, including sunflower seeds, sesame seeds, peanuts, and mustard seeds, accommodating different culinary preferences.
- High Oil Extraction Efficiency : The machine is capable of extracting oil from the material with high efficiency, resulting in minimal waste and maximum yield.
- Stainless Steel Build : The machine is constructed from stainless steel or food-grade materials to ensure the quality and safety of the extracted oil.
Specification
:- Product Type: Oil Processing Machine
- Brand: Generic ( Made in India )
- Material : Stainless Steel
- Motor Power : 2.5 HP
- Phase : Single
- Wattage : 2000 W
- Voltage : 220V
- Working Capacity : Upto 20 Kg/Hr (Depending on raw material)
- Weight : 73 kg (Approx.)
Used to extract oil from the below mentioned seeds :
- Peanuts
- Coconut
- Sesame
- Soybean
- Walnut
- Sunflower Seeds
- Vegetable Seeds
- Flax seed
- Mustard Seed
Working : Can work continuously for up to 5 hours and take a rest for about 1 hour.
Note : Suitable for extracting oil from edible seeds only.
Accessories
:- Bowl
- Strainer
- Gloves
- Brush
Usage
:Step 1: Preparation
- Choose Your Seeds or Nuts : Determine which type of oil you want to extract based on your cooking needs and preferences. Common choices include sunflower seeds, sesame seeds or nuts like walnuts and almonds.
- Clean the Seeds/Nuts : Rinse them to remove any dirt or contaminants. Ensure they are completely dry before proceeding, as moisture can affect the oil extraction process.
- Preheat the Machine : Some oil press machines require preheating for optimal oil extraction. Check your user manual to see if this step is necessary.
Step 2: Setting Up the Machine
- Assemble the Machine : Ensure all parts of the oil press machine are correctly assembled. This usually includes attaching the oil collector and checking for proper alignment.
- Set the Temperature : Depending on the type of seeds or nuts you are using, you may need to adjust the temperature settings. Higher temperatures can increase extraction rates but may also affect the oil’s flavor and nutritional quality.
Step 3: Oil Extraction
- Add the Seeds/Nuts : Pour the prepared seeds or nuts into the hopper of the machine. Do not overload the machine, as this can impede the extraction process.
- Start the Machine : Turn on the oil press machine. It will automatically start the extraction process, squeezing the oil out of the seeds/nuts.
- Monitor the Process : Keep an eye on the machine as it operates. Most automatic machines will allow you to see the amount of oil being extracted and provide alerts for any issues.
Step 4: Collecting the Oil
- Stop the Machine : Once the oil extraction process is complete, turn off the machine. This usually happens when the seeds or nuts have been fully pressed.
- Collect the Oil : Carefully collect the freshly extracted oil from the container. It’s a good idea to use a funnel to avoid spills.
- Store the Oil : Transfer the oil into a clean, airtight glass or metal container. Store it in a cool, dark place to preserve its quality.
Step 5: Cleaning the Machine
- Disassemble the Parts : After the machine has cooled down, disassemble it according to the manufacturer’s instructions.
- Clean Thoroughly : Use warm, soapy water to clean the parts. Avoid using harsh chemicals that could linger and contaminate future batches of oil.
- Dry Completely : Ensure all parts are thoroughly dried before reassembling or storing the machine.
Maintenance :
- Periodic Deep Cleaning : In addition to regular cleaning, perform a deep clean every few months. This involves disassembling the entire unit and cleaning each component meticulously.
- Use Appropriate Lubricants : Choose food-grade lubricants to ensure safety during oil production.
- Screws and Fasteners : Ensure they are tight to prevent vibrations that can lead to mechanical failure.
- Heating Elements : Check for discoloration or damage, as these are indicators of overheating.
- Listen for Unusual Noises : Grinding or squealing sounds can indicate a problem that requires immediate attention.
- Check for Consistent Oil Quality : If you notice a significant change in oil quality or yield, it may be time for a deeper inspection or professional servicing.
Toolsvilla deals with various types of Food Processing Machinery. Wide varieties of Oil Seeds Press Machine are used to extract pure and fresh oil at home or for commercial purposes.
Applications
:- Production of High-Quality Edible Oils : Cold pressing is used to extract oils from seeds like flaxseeds, sunflower seeds, sesame seeds, and pumpkin seeds. These oils are known for their unique flavor profiles and nutritional benefits, including omega-3 fatty acids, vitamin E, and minerals.
- Small-Scale Oil Production : Cold oil press machines are becoming increasingly popular for home use, allowing individuals to produce their own fresh, high-quality oils as well as these machine can also be used for small scale businesses.
- Health and Wellness : Cold-pressed oils are often used as dietary supplements due to their high concentration of nutrients and antioxidants. These oils can support heart health, brain function, and overall well-being.
- Culinary Applications : Cold-pressed oils are prized for their delicate flavor and high smoke point, making them ideal for cooking and baking. They can enhance the taste of dishes and provide a healthier alternative to refined oils. Their unique flavor profiles and nutritional benefits add depth and complexity to dishes.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 76.2 cm X 44 cm X 88.9 cm
Package Weight
:
74.12 Kg
