Brand: Generic (Imported)

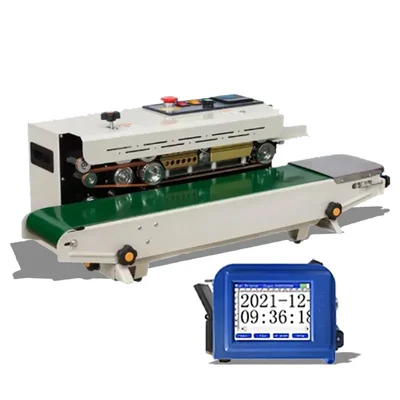

COMBO of Heavy Duty 3kg MS Horizontal FR-900 Band Sealer with Ink Coding Printer & Free Accessories
SKU: DM-MM-20234987
₹21025 (Including GST)
Get extra ₹315 Discount (On Checkout)
Delivery By: Apr 5 - Apr 7
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
COMBO of Heavy Duty 3kg MS Horizontal FR-900 Band Sealer with Ink Coding Printer & Free Accessories
Band Sealer Power 500 W and Band Sealer Sealing Speed 0-20 m/min
Coding Machine Cartridge Type 12.7 mm Coding Machine Printing Distance 2-5mmCountry of origin: China
Description
This band sealer works continuously to seal Laminated pouches composed of High Graded pouches. Simple to use and appropriate for sealing little packages in the chemical, general retail, pharmaceutical, food, spice, and seed industries. It has 4 kg of conveyor loading capacity and 0–20 m/min of sealing speed, so it can save labor time and effort. This machine is able to increase packaging against heavy production, and the mini inkjet coding machine is used for batch number, date coding, and expire date coding. You can use our machine for printing on labels, pouches, and carton boxes. This printing machine has a compact size, so you can easily carry it with minimum effort.
Features
:- Easy to operate.
- Premium quality heavy duty machine.
- Fast packing machine.
- Time saver.
- Different types of High Graded packets can be sealed.
- Conveyor height can be adjusted accordingly.
Specification
:- Brand: Generic (Imported)
- Weight (Approx.) : 20 kg
Horizontal Band Sealer :
Coding Machine :
- Body Material : Mild Steel
- Controller Type : Digital
- Running Time : Minimum 13 to 17 hours (Non Stop)
- Voltage : 220 V
- Frequency : 50 Hz
- Power : 500 W
- Sealing Speed : 0-20 m/min
- Sealing Width : 6-12 mm
- Temperature Range : 0-300°C
- Teflon Belt : High Quality from USA.
- Gear Material : Metal
- Max. Conveyor Loading : 4 Kgs (Approx)
- Product Weight of Band Sealer : 20 Kg (Approx.)
- Power input : DC-9V/2A
- Power Rating : 25 Watt
- Cartridge Type : 12.7 mm
- Power Supply Mode : Fast charge 3.0 adapter
- Print Resolution : 600 dpi (Maximum)
- Printing Distance : 2-5mm
- Language : Chinese, English
- Print content : Time, Date, Counter, QR code, Bar code, LOGO
- Print media : Boards, Carton, Pipe, Cable, Metal, Plastic, Concave convex surface
- Weight : 1.3 Kg (Approx.)
NOTE :
- Band sealer conveyor color may vary.
- Suitable for High Graded Pouches, just like laminated Pouches.
Accessories (Free of cost with the machine.) :
- 2 Pcs (15 X 750 mm)Size Teflon Belt
- 2 Pcs Teethed Timing Belt
- Screw Driver
- Power Cable
- Chabi Simple Rinch
- Printer Machine
- 1 USB C Cable
- 1 Adaptor
- 1 Ink Cartridge
How to Use Band Sealer :
Setup :
- Ensure the machine is placed on a stable surface.
- Connect the sealer to a power source and turn it on.
Temperature & Speed Settings :
- Adjust the temperature control based on the material you are sealing.
- Set the sealing speed depending on the production requirements.
Loading the Pouch :
- Place the open end of the pouch or bag containing the product on the sealing conveyor belt.
- Ensure the bag is aligned properly for sealing.
Start Sealing :
- Activate the sealer by pressing the start button.
- As the bag moves through the sealing area, the heated band will seal it along the edge.
Cooling :
- Once sealed, the bag will pass through a cooling section to solidify the seal.
- Ensure the seal is intact and check for any potential defects.
Remove the Sealed Bag :
- After sealing, carefully remove the bag from the conveyor and inspect for a strong, consistent seal.
How to Use Coding Printer :
- Check the Printer : Before using the mini inkjet coding machine, ensure it is clean.
- Edit the Batch Code : Once you confirm that the printer is functioning properly, edit your desired text, date, or numbers in the software.
- Position for Printing : Move the nozzle to the specific location where you want to print the batch code on your product.
- Print the Batch Code : Press the printing button to print the code onto your product.
- Post Printing Process : After printing, remove the ink cartridge from the printer and store it in its protective cover to prevent drying out of the nozzle.
Maintenance :
- Clean Regularly the Band Sealer : Wipe down the sealing area, conveyor belt, and sealing jaws after each use to remove product residue, dust, or debris.
- Clean Print Head of the printer : Regularly clean the print head using a soft cloth and appropriate cleaner to avoid ink blockages and ensure clear, crisp prints.
- Inspect Electrical Connections : Periodically check power connections and wiring for any signs of damage or wear.
Applications
:- Food Industry : Seals bags containing chips, nuts, candies, and other snack products.
- Pharmaceutical Industry : Seals packaging for tablets, capsules, syrups, and other medical supplies.
- Cosmetics and Personal Care : Seals pouches or bags containing skincare products, lotions, and shampoos.
- E-Commerce and Retail : Seals bags containing retail goods like toys, clothing, electronics, or accessories.
This product will be shipped in 2 packages.View All
