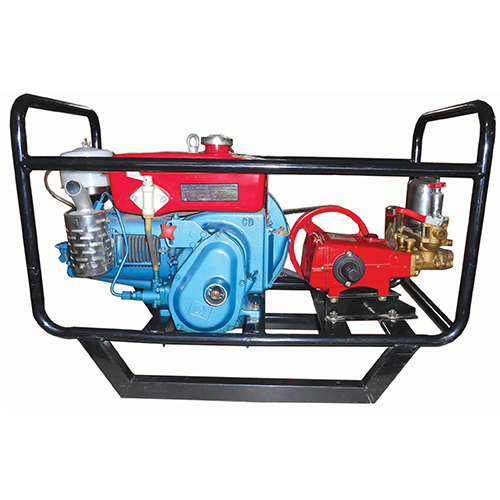

Kisankraft HTP Power Sprayer Pump Set,4 Stroke Diesel Engine,KK-PSD-30

• Power Sprayer Pump Set(Diesel), KK-PSD-30 by Kisankraft 2.5 HP Motor and 4 Stroke, air cooled Engine. It is used in garden, agriculture,horticulture and others crops for spraying pesticides, washing and cleaning using water

• Model No: KK-PSD-30 (30CI3 + KK-DEH-170F)
• HP: 4.1 HP
• Displacement: 163 cc
• Weight: 35 Kg (Approx)

• Engine Model No: KK-DEH-170F
• Product Type: Horizontal Diesel Engine
• HP: 4.1 hp
• Displacement: 269 cc
• Engine Type: 4 Stroke, Air cooled
• RPM: 2600 (Engine RPM)
• Fuel Used: Diesel
• Fuel Tank Capacity: 4.5 litre
• Oil (Mixing) For Engine: 1100 ml (20 w 40 Grade)
• Fuel Consumption: 500 ml/hour (Engine)
• Liquid Output (approx): 2400 litre / hour

• Engine Power required in HP: 3 – 6.5(hp)
• Pump RPM: 800 - 1200
• Output Pressure: 10 – 40 (Kg/cm²)
• Suction Vol: 30 – 40 (L/min)
• Liquid Output (approx): 1800 - 2400 Litre/hour
• Pump Oil (Mixing) (20 W 40 Grade): 900 ml
• Hose Pipe length: Up to 250 m

• Heavy Duty Stand
• 50 m Delivery Hose
• 3' (91.44 cm) Straight & Sent guns
• 2 Pulley belt, Tool-kit
• 5 m Suction & overflow hose with strainer

• Portable and suitable for large spraying operations in orchards like mango, coffee, rubber, plantation, apple, vineyards, ground, crops and particularly for tall trees like coconut, rubber, areca nut. It is also used for car washing.

Specifications
