Brand: Generic (Imported)

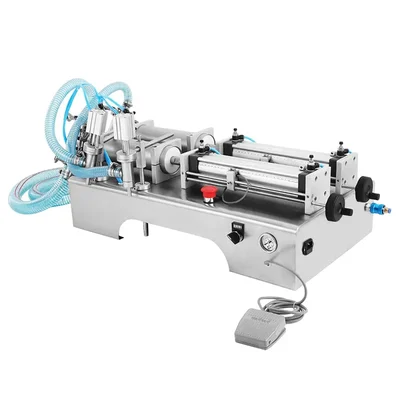

Double Nozzle Liquid Filling Machine 50-500 ml, Semi-Automatic
SKU: DAR-SH-2169
₹64999 (Including GST)
Get extra ₹975 Discount (On Checkout)
Delivery By: Feb 10 - Feb 12
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Double Nozzle Liquid Filling Machine
50-500 ml Filling Volume
600-1500 bottles per hr Efficiency
50-500 ml Filling Volume
600-1500 bottles per hr Efficiency
Country of origin: China
Description

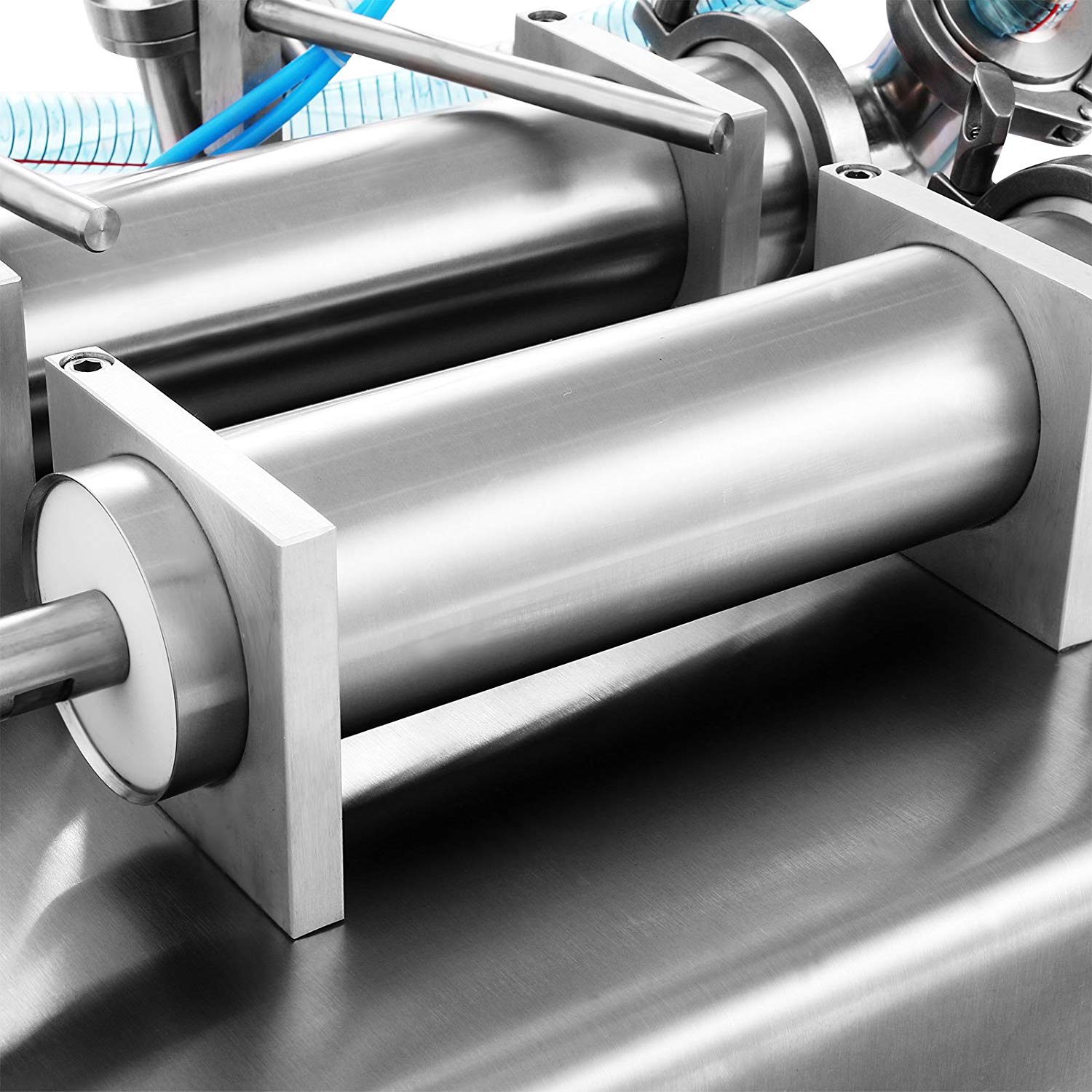

This Liquid Filling Machine is a semi-automatic piston-type liquid filling machine This machine is reasonable in design, small, and exquisite in the model. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). Both filling volume and filling speed can be adjusted at will, filling accuracy is high. The filling head adopts an anti-leakage and lifting filling device.
Features
:- Suitable for liquid filling
- Small model easy to handle
- High accuracy
- Filling volume and filling speed can adjust
Specification
:- Product Type: Liquid Filler
- Brand: Generic (Imported)
- Weight (Approx.) : 40.5 kg
- Body Material : Stainless Steel
- Power source : 220V/110V
- Phase : Single
- Frequency : 50Hz
- Filling Head : Double Head
- Filling Volume : 50-500 ml
- Air Supply : 400 LPM (both nozzle)
- Air Pressure : 0.6 Mpa (both nozzle)
- Efficiency : 600-1500 bottles per hr
Note : Compressor required extra
Usage
:1. Preparation :
- Ensure the machine is clean and free from any previous product residues.
- Set up the machine on a stable surface and connect it to a power source.
2. Adjusting the Settings :

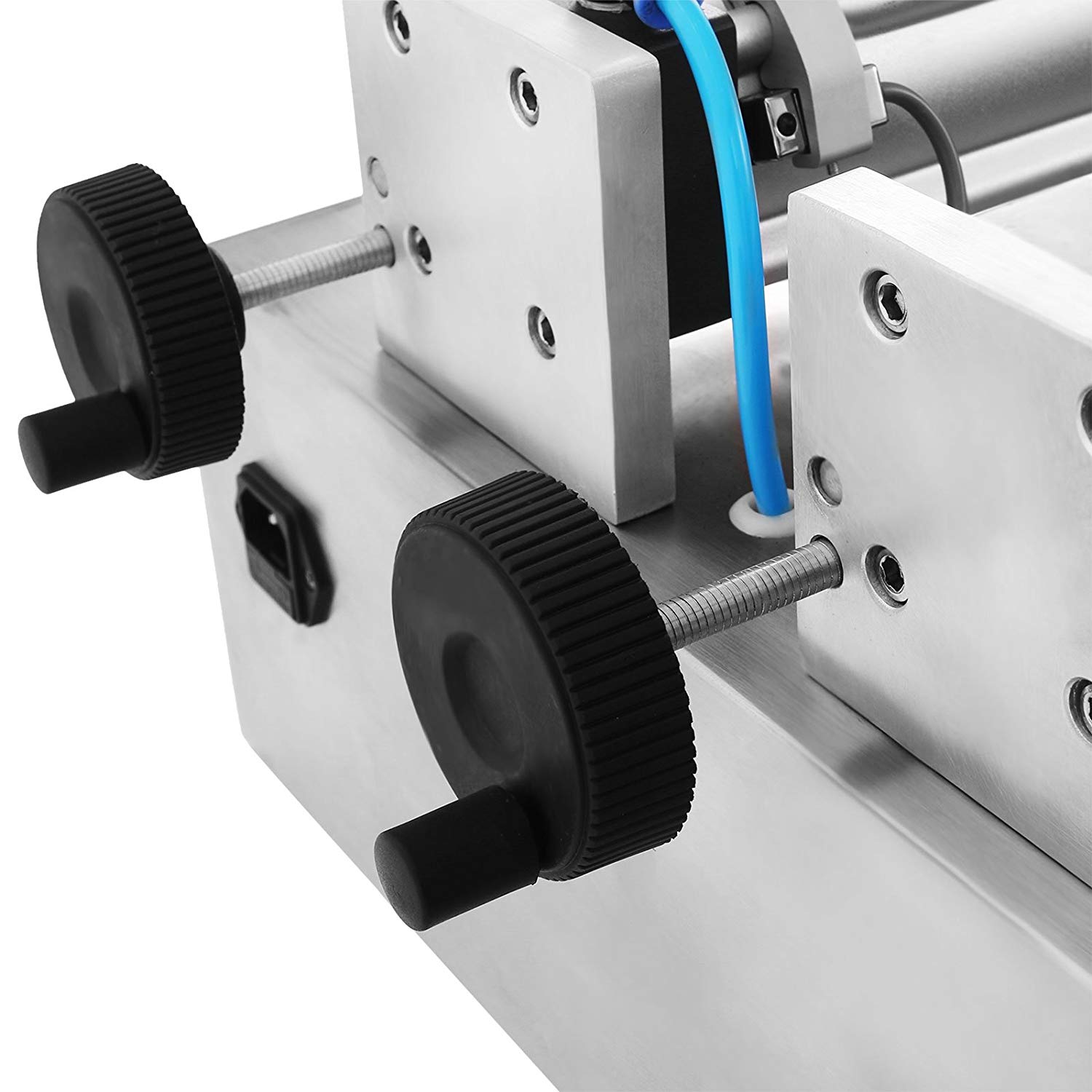

- Set the desired filling volume (between 50-500 ml) using the volume adjustment knob.
3. Container Placement :
- Place empty containers under the nozzles in a manner that allows for easy filling.
- Ensure that all containers are aligned properly to avoid spills.
4. Filling Process :
- Activate the filling process by pressing the foot pedal.
- Monitor the filling to ensure that each container receives the correct amount of liquid.
5. Post-Filling :
- Once filling is complete, remove filled containers from beneath the nozzle.
- Clean any spills around the filling area to maintain hygiene.
Maintenance :
- Routine Cleaning : Ensure the filling nozzle and surrounding areas are cleaned regularly to prevent product buildup.
- Electrical Safety : Always disconnect power before performing maintenance to avoid electric shock or injury.
Applications
:- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 50 ml to 500 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 10 cm X 10 cm X 10 cm
Package Weight
:
45.00 Kg
