Brand: Nilsan

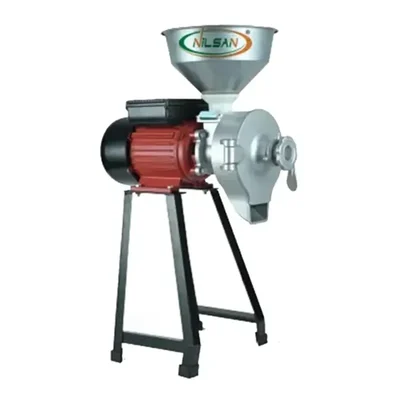

Nilsan Wet And Dry Grinder/Flour Mill With 2HP Motor
SKU: TI-NW-16020
₹23850 (Including GST)
MRP : ₹24999
Get extra ₹358 Discount (On Checkout)
Delivery By: Apr 9 - Apr 11
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Nilsan Wet And Dry Grinder/Flour Mill
2HP Motor, 220V
Country of origin: India
Description
A Wet and Dry Grinder is useful for grinding or milling materials in both the forms whether Wet or Dry. Wet grinding or milling is a process where the materials are grinded into liquid form or slurry, reducing the particle size. Dry grinding is the process in which the materials are grinded in a way where they retain there dry form or nature. Machines like these are suitable for grinding both types of Wet and Dry materials. This machine comes with ample power to fulfill all your grinding needs along with adjustment controls for grinding powder and grinding into thick liquid which lets the user achieve desired results. The superb quality grinding disk takes care of all the grinding needs and helps in fine grinding. This machine is a perfect fit for those who are willing to use it for domestic as well as commercial purposes. This features a 2 HP motor and is built using mild steel material which adds up to the overall durability of the machine.
Features
:- Easy to use and portable machine.
- Zinc coated capacitor housing
- Thickness adjustment knob for controlled grinding of powder and thick liquid.
- Strengthened wind hood of the motor, better heat dissipation
- Durable steel disc for refined grinding
- Suitable for grinding starch, rice flour, corn and used in other food industries.
Specification
:- Brand: Nilsan
- Material : Mild Steel
- Weight (Approx.) : 20 kg
- Motor Power : 2 HP
- Power : 1.5 Kw
- Motor Speed : 1400 RPM
- Voltage : 220 V
- Diameter of Blade : 150mm
- Grinding Powder : 68-75 Kg/hr. (Fineness:<=0.05mm)
- Grinding Soybean Milk : 45-55 Kg/hr.
- Output Rice : 55 Kg/hr.
- Output Beans : 50 KG/hr.
Usage
:1. Setup and Installation :
- Placement: Ensure that the grinder is placed securely on a flat surface to prevent any movement during operation.
- V-belt Adjustment: Adjust the V-belt for proper elasticity and ensure coaxial concentricity between the motor and grinding components.
- Electrical Safety Check: Before using, check all electric wires and the power switch to ensure they are in safe working condition.
2. Preparing for Operation :
- Spindle Orientation: Make sure that the spindle of the machine is oriented in the direction indicated by the arrow on the machine.
- Tightening Bolts: Inspect all parts of the grinder to confirm that bolts are tightened properly. If there are any abnormal sounds after starting, stop immediately and troubleshoot.
3. Feeding Materials :
- Feeding Process: Open the feed inserts slowly. Adjust the thickness adjustment knob according to your desired grinding consistency.
- Grinding Liquid Consistency: When grinding materials into a thick liquid, add an appropriate amount of water into the hopper to facilitate smoother processing.
4. Grinding Procedure :
- Initial Grinding: Start with a primary grind. If this does not meet your thickness requirements, you can repeat the grinding process as necessary.
- Changing Grinding Plates: If you need to change grinding plates, align the holes of the new plate with those of the roller (or grinding block) and body before tightening bolts to avoid misalignment beyond 0.5mm.
5. Post-Operation Maintenance :
- Cleaning Residual Material: After use, promptly remove any residual material from inside the grinder.
- Condition Check: Regularly check the machine’s condition for any damage or wear. If repairs are needed, address them promptly to maintain optimal performance.
Maintenance :
- Regular Cleaning : To maintain your Nilsan wet and dry grinder, it is essential to clean it regularly after each use.
- Avoid Water in Electrical Components : While you can use water for wet grinding, be cautious not to let water seep into the motor or electrical components.
- Sealing : Ensure that all seals are intact when using wet ingredients to prevent moisture from entering areas where it shouldn’t.
- Check for Wear and Tear : Check if the blades are sharp and free from rust or damage. Dull blades can lead to inefficient grinding.
- Proper Storage : Store your Nilsan grinder in a cool, dry place away from direct sunlight and humidity as excess humidity can cause rusting of metal parts and affect electrical components.
Applications
:- Grinding Spices : One of the primary uses of the Nilsan wet and dry grinder is for grinding spices. The machine can efficiently grind whole spices into fine powders, which are essential for various culinary dishes. This includes common spices such as cumin, coriander, turmeric, and black pepper. The ability to grind spices fresh enhances the flavor profile of dishes significantly.
- Making Batters : The grinder is also ideal for preparing batters for various dishes such as dosa, idli, or vada. It can blend rice and lentils into a smooth batter suitable for fermentation or immediate cooking. The wet grinding feature allows for achieving the right consistency needed for these traditional foods.
- Grinding Grains : The Nilsan wet and dry grinder can also be used to grind grains such as rice or wheat into flour or semolina (rava). This application is particularly useful for those who prefer freshly ground flour for making bread or other baked goods.
