Brand: Automat

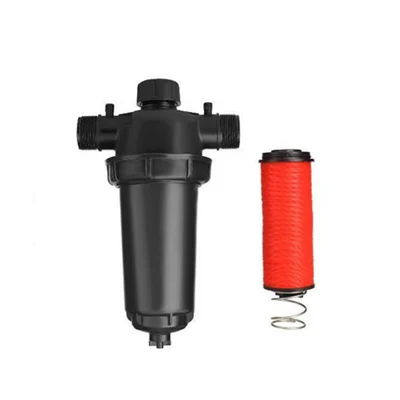

Automat Eco Disc Filter 1.5 inch for Filtration
SKU: ST-HA-2021146
Price : ₹1800 (Including GST)
Get extra ₹27 Discount (On Checkout)
Delivery By: Jan 2 - Jan 4
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Eco Disc Filter for Filtration
1.5 inch (3.81 cm approx) Size
Automat
Country of origin: India
Description
Disc Filter is a type of water Filter used Primarily in Irrigation. These Filter Systems are durable and easy to install. They are used to remove organic materials such as algae and coarse particles through a thick layer of sand contained in the filter through which is passed the water for filtration.
Features
:- Flow passes through outside to Inside of Disc cartridge.
- Uniform distribution of flow into filter housing optimize filtration process.
- Filter designed for Max. Operating Pressure 6 BAR (PN 6).
- ¼" Male (0.635 cm approx) threaded 2 pressure ports .
- Spring Loaded disc cartridges for uniform compression of disc.
- Fast cleaning of disc cartridge because of self loosen design.
- Union Nut for easy dismantling of filter for fast cleaning operation.
- Filter body cap equipped with ½" (1.27 cm approx) female threaded connection for draining.
- Grooved disc design with dimensional consistency proven with more than 95% filter efficiency
Specification
:- Product Type: Disc Filter
- Brand: Automat
- Model No : HT-133TE
- Size : 1.5 Inch (3.81 cm approx)
- Max. Working Pressure : 6 kg/cm2
- Inlet/ Outlet Connection : 1.5 Inch (3.81 cm approx) BSP/NPT Male Thread
- Range of Flow Rate : 10 -20 m3/hr
- Recommended Flow : 15 m3/h (250 ltr/min)
- Filtration Surface Area : 409 cm2
- Filter Height : 342 mm
- Filter Width : 140 mm
- Cartridge Diameter : 70 mm
- Cartridge Length : 208 mm
- End Plug : 1/2 inch (3.81 cm approx) Threaded
Shipping Weight & Dimensions
:Verified Package Dimensions
(L X W X H)
: 36.83 cm X 22.86 cm X 15.24 cm
Package Weight
:
1.39 Kg
