Brand: HT

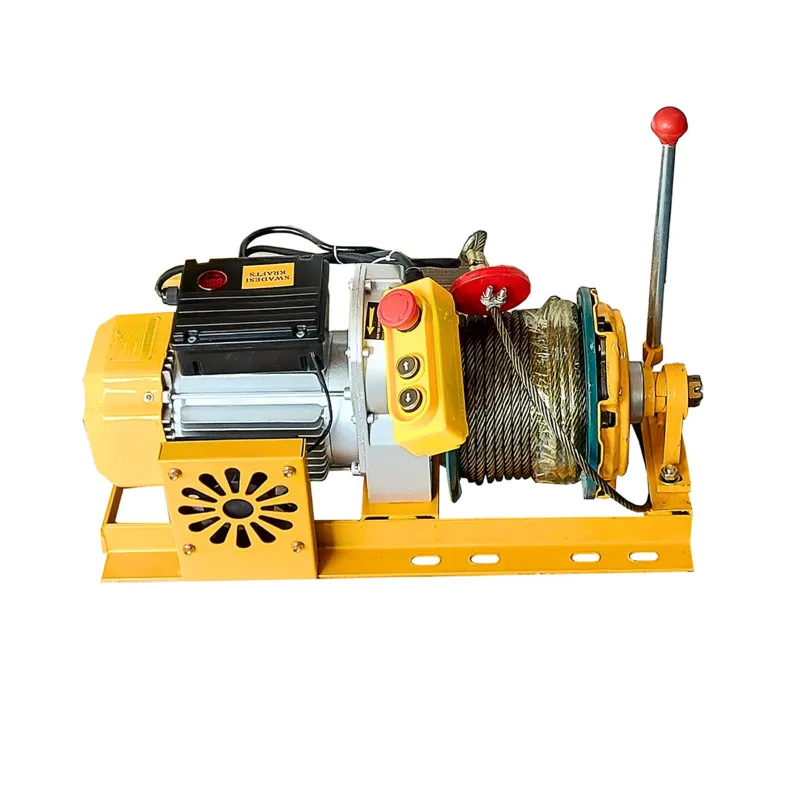

HT 500-1000 Kg 3 hp Long Drum Electric Clutch Winch With 8 MM, 50 Meter Wire Rope
SKU: TI-HD-11610
MRP : ₹24570
Offer Price : ₹18900 (Including GST)
Get extra ₹284 Discount (On Checkout)
Delivery By: Jan 2 - Jan 4
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Electric Winch Machine
500-1000 kg load capacity
3 hp copper winding motor, 220 V
8mm, 50-meter wire rope
Country of origin: China
Description
HT 500-1000 Kg 3 hp Long Drum Electric Clutch Winch With 8 MM, 50 Meter Wire Rope
Description :
- Includes the best bearings, a heavy-duty motor clutch
- For safety, there is a pre-installed travel switch and a time-saving clutch.
Features :
- 2 cooling fans that stop the winch from overheating
- This motor ensures smooth and reliable operation, enabling precise control during both lifting and pulling operations.
- Clutch Mechanism : The inclusion of a clutch mechanism enhances the winching process, allowing operators to easily engage or disengage the winch as needed.
Specification :
- Product Type : Electric Winch Machine
- Brand : HT
- Winding : 100% Copper
- Clutch System : Yes
- Motor power : 3 hp
- Phase : Single
- Voltage : 220 V
- Frequency : 50 Hz
- Wire Rope Length : 50 meter
- Wire rope Thickness : 8 mm
- Gear Lubrication : Grease
- Lifting Capacity (Single/Double-Wire Rope) : 500/1000 kg
- Lifting Height Single Hook : 25 meters
- Lifting Height Double Hook : 50 meters
- Lifting speed (Single/Double -Hook) : 7/14 meters per minute
- Continuous Working Capacity : 2 hrs. (Approx)
Applications :
- Widely used in Civil constructions, restricted areas, rooftop work, steel erection, residential construction, tunnel and underground, forestry, uneven groundwork, marine construction, etc. for lifting materials.
In the Box :
- 1 x Electric Clutch Winch
- 1 x Eye Hook
- 1 x Wire Rope
- 1 x Remote
- 1 x Voltmeter
Note :
- The video shown is for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
Specifications
:- Product Type: Electric Winch
- Brand: HT
- Weight (Approx.) : 50 kg
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 69 cm X 31 cm X 28.5 cm
Package Weight
:
55.00 Kg
