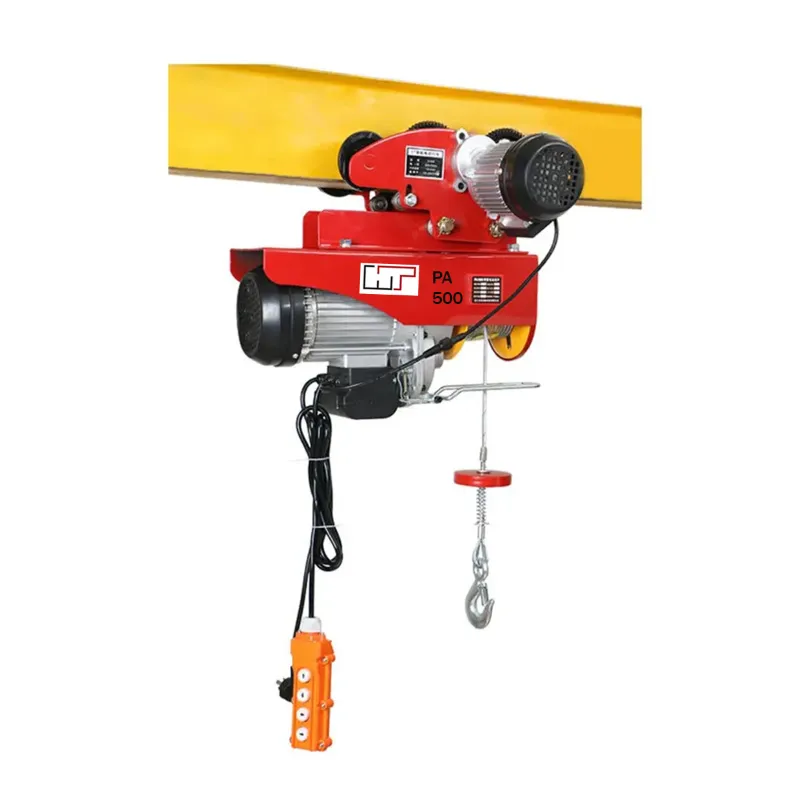

HT PA 500 Electric Hoist With Electric Travelling Trolley With 1.5 HP Copper Winding Motor, 20 Meter & 4 mm Wire Rope

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Heavy Duty PA 500 Electric Hoist With Electric Travelling Trolley

1.5 HP Copper Winding Motor & 1000 W Input Power

Lifting Height : Single Hook-20m, Double Hook-10m

Single Hook Load Capacity : 250 kg & Double Hook Load Capacity : 500 kg

20 Meter & 4 mm Wire Rope

This Travelling Trolley Is Suitable For 6 x 4 Inch I Beam

Country of origin: China

Description

HT PA 500 Electric Hoist With Electric Travelling Trolley With 1.5 HP Copper Winding Motor, 20 Meter & 4 mm Wire Rope

Description :

• Electric hoists are a type of material handling tool used for raising, lowering, and moving goods. They have an electric motor that propels them overhead. Electric chain hoists and electric wire rope hoists are the two primary varieties of electric hoists.
• The electric hoist's 500 KG load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes. The Single line can move up to 250 kg and the double line can move up to 500 kg.
• With a specially designed rope guide system to avoid rope slackening, this Electric Travelling Trolley has a built-in electrical control panel. Low noise operation is best suited to its medium-duty application design.

Features :

• The electric hoist's 500 KG load capacity makes it simple to lift compact engines, transmissions, or building supplies. It features a steel hook with a secure clasp and supports two lifting modes.
• Premium Design : The alloy shell and galvanized steel wire used in the construction of this electric hoist winch prevent rust, corrosion, and rain. 20 meters of steel line with a 4 mm (in) diameter. Additionally, the metal fastening ring is simple to install and can be adjusted to meet your diverse needs.
• Compact and small size design

• Long life span and high efficiency
• Applicable for most industry, business, handicraft industry and service industry
• Can be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane

Specifications Of Electric Hoist :

• Product Type : Electric Hoist
• Model No : PA 500
• Brand : HT
• Phase : Single Phase
• Motor Power : 1.5 HP
• Input Power : 1000 W
• Working : Remote Controlled
• Wire Rope Length : 20 meter (2000 cm)
• Lifting Height : Single Hook-20m, Double Hook-10m
• Lifting Speed : Single & Double Hook : 18 m/min (1800 cm/min)
• Use Method : Single Hook & Double Hook
• Wire Rope Dia. : 4 mm
• Single Hook Load Capacity : 250 kg
• Double Hook Load Capacity : 500 kg
• Rated Voltage : 220-240 V
• Continuous Working Capacity : 2 hours (Approx.)

Specifications Of Electric Travelling Trolley

• Motor Power : 1 hp
• Rated Voltage : 220V
• Winding : Pure Copper Winding Motor
• Operating Mode : Horizontal (Straight Line)

In The Box :

• 1 x Mini Electric Hoist
• 1 x Pulley Hook
• Clamps & nut bolts
• 1 x User Manual

Applications :

• The power hoist is appropriate for usage in factories, warehouses, building sites, auto manufacturers, railroad constructions, etc. It is the best tool for use when working in challenging indoor or outdoor conditions. Please use it to ensure that the bar's width and height are compatible with the mounting brackets' internal dimensions.

Specifications

 :

• Brand: HT
• Power : 1.5 hp
• Weight (Approx.) : 23 kg
• Load Capacity : 500 kg
