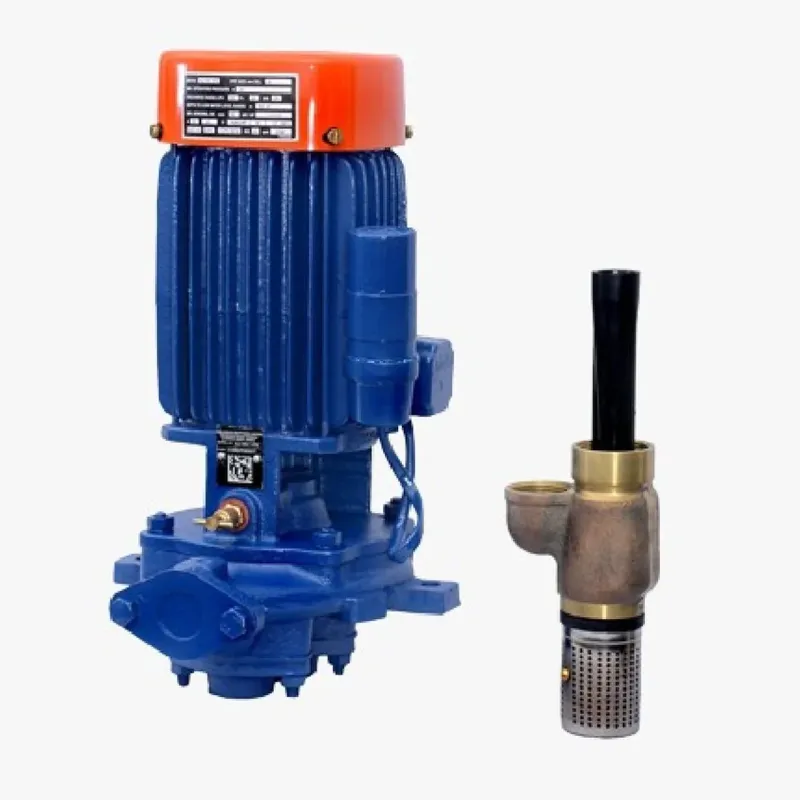

Kirloskar 0.5 HP Single Phase Jet Pump 27m Max. Depth To Low Water Level, 1920 LPH (KJ-05V / 4T6) - 1 Year Warranty
SKU: TI-KK-13247
MRP : ₹17780
Offer Price : ₹12700 (Including GST)
Get extra ₹191 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return & Refund
Quality Assurance
Trusted Delivery
After Sales Assistance
Buyer Protection
Short Description
Kirloskar(KJ-05V / 4T6) 0.5 Hp (0.37 kW) Jet Pump
27M Max. Depth To Low Water Level
1920 LPH Max. Discharge Rate
1 Year Warranty
Country of origin: India
Description
Kirloskar 0.5 HP Single Phase Jet Pump 27m Max. Depth To Low Water Level, 1920 LPH (KJ-05V / 4T6) - 1 Year Warranty
Features :
Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump.
Shielded Ball Bearing : The pumps are fitted with shielded ball bearing so no external lubrication required through life cycle and low noise level.
CED – Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major CI parts of Kirloskar pumps coming in contact with the water are CED coated.
Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
Design To Prevent Overloading : Lesser chances of motor burning as motor did not get overloaded even if the pump is operated at a head lower than recommended and saving substantial cost from maintenance and breakdown.
High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians.
Specification :
Model No : KJ-05V / 4T6
Product Type : Jet Pump
Brand : Kirloskar
Power Rating : 0.5 HP
Wattage : 0.37 kW
Rated Voltage : 210 Volt, 50Hz, AC Power Supply
Electricity Connection : Single Phase
Jet Unit : 4T6
Minimum Well Size : 100 mm
Minimum Operating Pressure : 8 Meters
Del. Pipe Size : 32 mm
Press. Pipe Size : 25 mm
Dis. Pipe Size : 25 mm
Depth To Low Water Level : 9 to 27 Meter
Discharge Range : 1920 to 360 LPH (32 - 6 LPM)
Winding Material : Copper
Insulation : B Class
Protection : IP 44
Weight : 22 Kg (Approx.)
Material Of Construction :
Impeller : Cast Iron
Delivery Casing : Cast Iron
Motor Body : Cast Iron
Pump Shaft : Carbon Steel
Jet Unit : Bronze
Areas Of Application :
Domestic water supply
Water supply to over head tanks in bungalows
Construction site
Gardens / Fountains
Lawn sprinklers
Warranty :
1 Year Warranty As Per Kirloskar Brothers Limited Policy.
