Brand: Havells

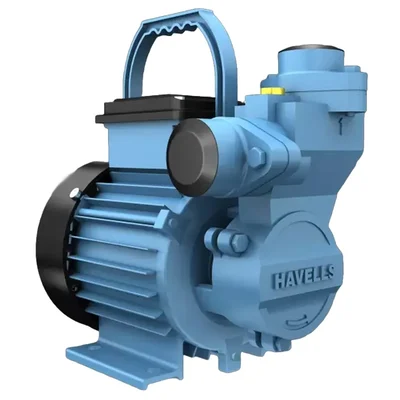

Havells MP1 1 HP Single Phase Monoblock Pump - 131 ft Max. Head and 50 LPM (1 Year Warranty)
SKU: AB-HP-20221614
MRP : ₹6500
Offer Price : ₹5270 (Including GST)
Get extra ₹79 Discount (On Checkout)
Delivery By: Jan 7 - Jan 9
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Havells (MP1) 1 HP Single Phase Self Priming Monoblock Pump
131ft Max. Head, 3000 LPH Max. Discharge
1 Year Warranty
Country of origin: India
Description
Havells MP1 1 HP Single Phase Monoblock Pump - 131 ft Max. Head and 50 LPM (1 Year Warranty)
Features :
- Motor Winding : Dual coated F class copper winding wire gives high motor efficiency. Winding wires can withstand high temperature & motor winding is protected from burning.
- Pump Performance : Higher performance of the pumps. Pumps have higher suction power and give high discharge in its operating range.
- Pump Seal : High quality mechanical seal has long life, it completely seals & prevents the water from entering into the motor side, It works for longer period with lesser wear & tear.
- Impeller : Brass impeller is very hard, wear & tear of the impeller is highly reduced, this results in better pump performance even after many years, other make of pumps have brass impellers & wear out faster due to particles in water.
Specifications :
- Model No. : MP1
- Product Type : Self Priming Monoblock Pump
- Brand : Havells
- Motor Power : 1 HP (0.75 kW)
- Electricity Connection : Single Phase
- Insulation Class : F
- Operating Voltage : 200 - 280 V
- High Suction with Self Priming : Up to 8 meters (26 feet)
- No Load Speed : 2900 RPM
- Max. Working Pressure : 4 kg/cm²
- Motor Winding : Copper
- Operating Water Temperature : Ambient Temperature
- Direction of Rotating : Anti-clockwise when viewed from driving end
- Cable Length and Size : 0.3 m & 1.5 sq. mm
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Head Range : 6 to 40 Meters (20 to 131 Feet)
- Flow Rate : 3000 to 800 LPM
- Weight : 9.5 kg (Approx.)
Materials of Construction :
- Body Material : Cast Iron
- Pump Casing : Cast Iron
- Shaft Material : EN-8
- Impeller : Brass
- Motor Stator : CRC Prossed grade stampings
Applications :
- Water transfer for Apartments, bungalows, farm-houses, building construction, gardening, fountains, overhead storage tanks, pressure booster systems, hotels, hospitals, industrial water circulation
Warranty :
- 1 year warranty on manufacturing defects only.
Note : Do not run the pump without water.
Specifications
:- Product Type: Power - 1HP
- Brand: Havells
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 31 cm X 26 cm X 21 cm
Package Weight
:
10.00 Kg
