Brand: Havells

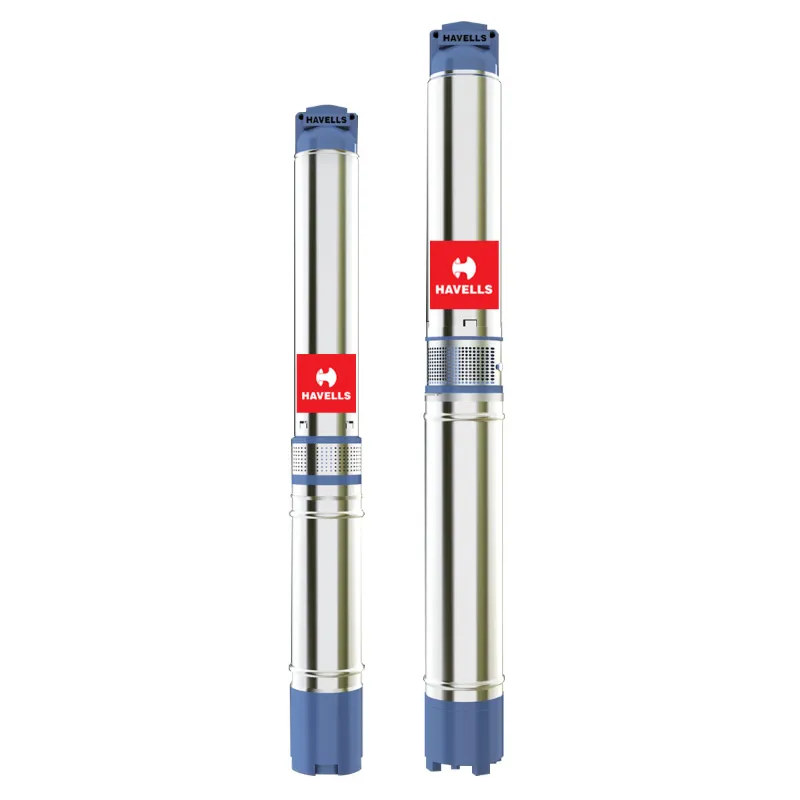

Havells 1HP 7 Stage 4 inch(V4) Oil Filled 1Phase Borewell Submersible Pump, 144ft Head (HC4O7BN10S) - 1 Year Warranty
SKU: AB-HP-20221694
MRP : ₹11900
Offer Price : ₹10999 (Including GST)
Get extra ₹165 Discount (On Checkout)
Delivery By: Dec 16 - Dec 18
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Havells 1 HP Single Phase Borewell Submersible Pump
Oil Filled Copper Winding Motor for 4 inch (100 mm) Borewell
144 Feet Max. Head, 120 LPM Max. Discharge
1 Year Warranty
Country of origin: India
Description
A borewell submersible pump is a type of submersible pump for drawing groundwater out of borewells. These pumps are fully submerged in water and have an airtight seal to prevent water from entering the motor. The head of a borewell submersible pump refers to the maximum height to which the pump can lift water. It is essential to consider the head based on the water table level at the location and the vertical distance between the pump and the water source. Discharge indicates the volume of water flow per unit of time. Borewell submersible pumps are commonly used in residential buildings, agricultural fields, irrigation systems, industrial facilities, and municipal water supply networks.
Features
:Motor Features :
- Performance of Havells Pumpsets confirms to IS 8034.
- Pump - Motor coupling as per NEMA or Key type
- Wide voltage operating range (160 V - 240 V), (140 V - 240 V)
- High grade Sillicon stampings for optimum efficiency & low power consumption.
- Oil filled motors fitted with High quality Carbon Vs stainless steel thrust bearing that withstand axial thrust load.
- Dynamically balanced rotor on CNC balancing machine for trouble free operation.
- Motor provided with Pressure diaphragm to compensate excess pressure due to heating of Water.
- Cathodic Electro Deposition (CED) coated Cast Iron Parts
Pump Features :
- High-grade Noryl with 30% GF Impeller-Diffuser set with neck-ring prevents wear and tear.
- SS-410 grade stainless steel shaft for corrosion free use.
- Fitted with LTB (Leaded Tin Bronze) bush for high wear resistance.
- Stainless Steel tube for Motor and pump, for rust free operation.
- Modular construction and easy interchangeability of components.
- Cathodic Electro Deposition (CED) coated Cast Iron Parts
Specification
:- Product Type: Power - 1HP
- Brand: Havells
- Model No. : HC4O7BN10S
- Product Type : Borewell Submersible Pump
- Brand : Havells
- Motor Power : 1 HP (0.75 kW)
- Power : 220 V AC Supply
- Electricity Connection : Single Phase
- Motor Cooling Type : Oil Filled
- Borewell Size : 4 inch (100 mm)
- Pipe Size : 32 mm
- No. of Stage : 7
- Max. Head : 44 Meters (144 Feet)
- Max. Flow Rate : 100 LPM
- Weight : 17 Kg (Approx.)
Materials of Construction :
- Motor Body : Stainless Steel
- Motor Stator : High grade CRNO stamping
- Motor Casing : Stainless Steel tube
- Impeller : Noryl
- Shaft : Stainless Steel (SS-410)
Applications
:- Lifting water from borewell for domestic applications.
- Gardening, High Story buildings & complexes
- Irrigation & Drip Irrigation, Sprinklers.
Warranty :
- 1 Year Warranty.
