Brand: Havells

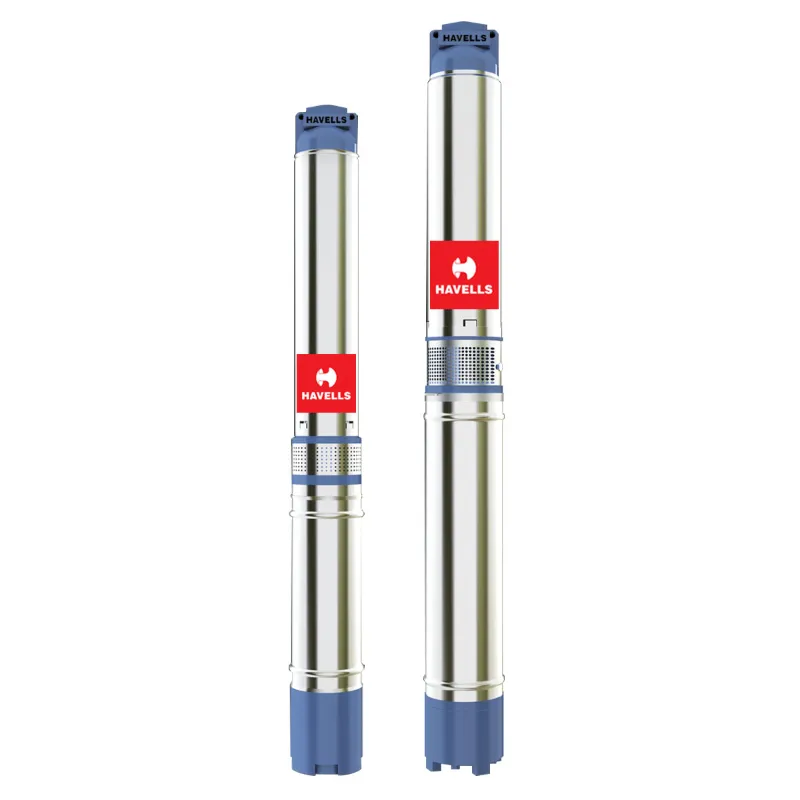

Havells 1 HP 12 Stage 3 inch(V3) Water Filled Single Phase Borewell Submersible Pump (ALPHA C3W12R1BN10) - 1 Year Warranty
SKU: AB-HP-20221623
MRP : ₹13600
Offer Price : ₹11800 (Including GST)
Get extra ₹177 Discount (On Checkout)
Delivery By: Dec 17 - Dec 19
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Havells 1 HP 12 Stage Single Phase Borewell Submersible Pump
44m Max. Head, 80LPM Max. Discharge
3 inch Bore Size
1 Year Warranty
Country of origin: India
Description
A borewell submersible pump is a type of submersible pump for drawing groundwater out of borewells. These pumps are fully submerged in water and have an airtight seal to prevent water from entering the motor. The head of a borewell submersible pump refers to the maximum height to which the pump can lift water. It is essential to consider the head based on the water table level at the location and the vertical distance between the pump and the water source. Discharge indicates the volume of water flow per unit of time. Borewell submersible pumps are commonly used in residential buildings, agricultural fields, irrigation systems, industrial facilities, and municipal water supply networks.
Features
:Motor Features :
- Performance of Havells Pumpsets confirms to IS 8034.
- Pump - Motor coupling as per NEMA or Key type
- Wide voltage operating range (160 V - 240 V), (140 V - 240 V)
- High grade Sillicon stampings for optimum efficiency & low power consumption.
- Water filled motors fitted with High quality Carbon Vs stainless steel thrust bearing that withstand axial thrust load.
- Dynamically balanced rotor on CNC balancing machine for trouble free operation.
- Motor provided with Pressure diaphragm to compensate excess pressure due to heating of Water.
- Cathodic Electro Deposition (CED) coated Cast Iron Parts
Pump Features :
- High-grade Noryl with 30% GF Impeller-Diffuser set with neck-ring prevents wear and tear.
- SS-410 grade stainless steel shaft for corrosion free use.
- Fitted with LTB (Leaded Tin Bronze) bush for high wear resistance.
- Stainless Steel tube for Motor and pump, for rust free operation.
- Modular construction and easy interchangeability of components.
- Cathodic Electro Deposition (CED) coated Cast Iron Parts
Specification
:- Product Type: Power - 1HP
- Brand: Havells
- Model No. : ALPHA C3W12R1BN10
- Product Type : Borewell Submersible Pump
- Brand : Havells
- Power : 1 HP (0.75 kW)
- Electricity Connection : Single Phase
- Voltage Operation Range : 180 to 240 V
- Motor Cooling Type : Water Filled
- Borewell Size : 3 inch (80/75 mm)
- No. of Stage : 12
- Head Range : 9m to 44 Meter
- Motor Winding Type : PVC insulated Copper winding
- Max. Working Pressure : 4.4 kg/cm²
- Operating Water Temperature : Ambient temperature
- Pipe Size : 32 mm
- Max. Flow Rate : 80 to 15 LPM
- No Load Speed : 2900 RPM
- Weight : 16 kg (Approx.)
Materials of Construction :
- Motor Body : Stainless Steel
- Motor Stator : High grade CRNO stamping
- Motor Casing : Stainless Steel tube
- Impeller : Noryl
- Shaft : Stainless Steel (SS-410)
Applications
:- Lifting water from borewell for domestic applications.
- Gardening, High Story buildings & complexes
- Irrigation & Drip Irrigation, Sprinklers.
Warranty :
- 1 Year Warranty.
