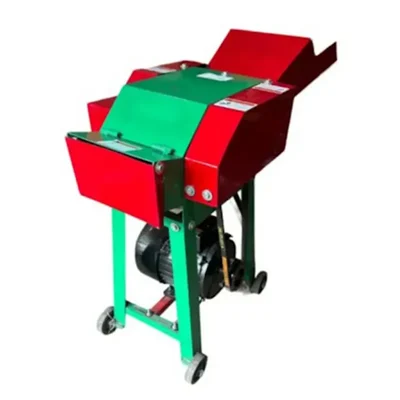

Heavy Duty Chaff Cutter/Grass Cutter 400-500 kg/Hr with 2HP Motor
SKU: GA-VA-20235816
₹21015 (Including GST)
Get extra ₹315 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Heavy Duty Chaff Cutter/Grass Cutter 400-500 kg/Hr with 2HP Motor
Motor Pulley : 3' B Section Single Groove
Country of origin: India
Description
The Chaff/Grass cutter is a mechanical device which cuts chaff, straw, hay into smaller pieces making it easier for feeding to cattle and livestock. This machine automates the fodder preparation process and reduces labour and time required for the purpose of preparing fodder. The fodder prepared using this machine keeps all the essential nutrients intact which aids in the digestion process and prevents the animal from rejecting any part of their meal, maintaining health and growth. This machine is equipped with a 2 HP motor and consists of 3 cutting blades which help in achieving the cutting capacity of 500-700 kilos per hour making it suitable for commercial usage.
Features
:- Powerful Motor: The chaff/chara cutter is equipped with a 2 HP powerful motor which provides required power to the machine in order to carry out it's fodder cutting operations.
- Sharp Cutting Blades: The set of 3 sharp cutting blades help in efficient cutting of fodder and enhances the overall cutting efficiency.
- Compact Design: This chaff cutter features a compact and portable design, facilitating easy transportation and use across different farm locations without requiring extensive setup.
- Ease of Maintenance: Chaff cutters are designed for easy maintenance, with accessible components that simplify cleaning, lubrication, and blade replacement.
Specification
:- Brand: Generic ( Made in India )
- Material : Mild Steel
- Motor Power : 2 HP
- Phase : Single
- Voltage : 230 V
- Motor Pulley : 3' B Section Single Groove
- Blades Type : 3 Blades ( 1 Fixed, 2 Movable with both sides sharpened )
- Blade Material : Special Steel-EN31 (Harden)
- Gear Material : Special Steel-EN8
- Machine Feed : Kabada Straw, Hatti Grass Straw, Sugar Cane, Corn Stalk
- Cutting Size : 18 to 23 mm (Approx.)
- Cutting Capacity Green Fodder : 600 -700 kg per hr (Approx.)
- Cutting Capacity Dry Fodder : 400 - 500 kg per hr (Approx.)
- Weight : 59 kg (Approx.)
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
- The user can use the gear lever to control the cutting size according to their preference.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Animal Feed Preparation: Farmers use heavy-duty chaff/grass cutters to process crop residues into feed for livestock such as cattle, sheep, or goats. The finely chopped material is easier for animals to consume and digest.
- Agricultural Use: Primarily used in agriculture for tasks such as cutting fodder, straw, hay, grass, or other crop residues for livestock feed preparation.
- Composting: The shredded plant material can also be used in composting processes to create organic fertilizer for enhancing soil health and promoting plant growth.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 54 cm X 36 cm X 86.36 cm
Package Weight
:
60.25 Kg
