Brand: Lions

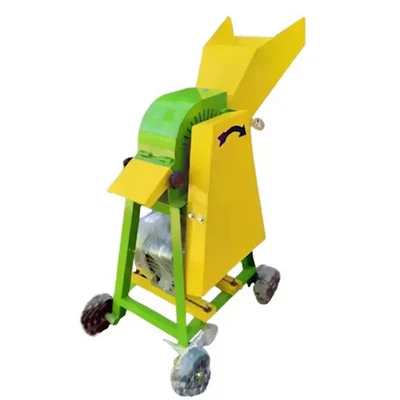

Premium Chaff Cutter/Grass Cutter Machine 300 to 500 Kg per hr, with 1HP motor with 1 Year Warranty
SKU: JS-JB-20211272
Price : ₹18770 (Including GST)
Get extra ₹282 Discount (On Checkout)
Delivery By: Feb 1 - Feb 3
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Premium Chaff Cutter/Grass Cutter Machine
1HP Single-Phase Motor
Cutting Capacity 300-500 kg/hr
Country of origin: India
Description
The Chaff/Grass Cutter is a device used for cutting hay, straw and other plant products for the purpose of preparation of animal fodder. This device automates the fodder preparation process and reduces the labour required in preparing fodder for animal. The machine cuts the raw materials which are used for fodder into small uniform pieces which aids digestion in cattle and livestock and prevents them from rejecting any part of their meal. The machine is equipped with a 1 HP single phase electric motor, has high quality cutting blades (2 moving + 1 fixed) which helps in achieving the cutting capacity of 300-500 kilos per hour.
Features
:- Cutting Mechanism: Equipped with sharp blades, chaff cutters efficiently chop fodder into small, manageable pieces, promoting better digestion and nutrient absorption for livestock.
- Compact Design: This chaff cutter features a compact and portable design, facilitating easy transportation and use across different farm locations without requiring extensive setup.
- Ease of Maintenance: Chaff cutters are designed for easy maintenance, with accessible components that simplify cleaning, lubrication, and blade replacement.
Specification
:- Product Type: Motor/Engine Operated
- Brand: Lions
- Motor Power : 1 HP
- Phase : Single
- Power Source : Electric
- Voltage : 220 V
- Rated Power : 0.7kW
- Blade Size : 5 inches (12 cm) (not adjusted cutting size)
- Power Consumption : 0.5 Unit/Hr
- Body Material : Mild Steel
- Total Blades : 3 (Two movable and one fixed)
- Blade Material : Carbon Steel
- Cutting Size : 1 inch - 3 inch (2.5 - 7 cm) (Fixed)
- Output Capacity : 300 to 500 Kg/Hr
- Weight : 58.5 Kg (Approx.)
Warranty Parts : Motor
Note :
Covered in Warranty : Manufacturing Defects
Not Covered in Warranty : Physical Damage
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect the motor to a suitable power source in order to begin the fodder cutting operations.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance :
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 56 cm X 44 cm X 78 cm
Package Weight
:
59.20 Kg
