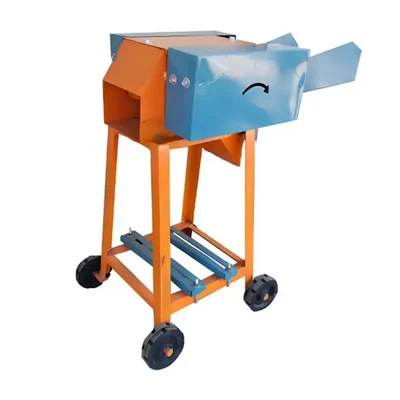

Hari Oum Chaff Cutter With 1.5 HP Motor, 500 Kg/hr Cutting Capacity & 1 Year Warranty
SKU: TI-HH-12944
₹25200 (Including GST)
Get extra ₹378 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Hari Oum Horizontal Chaff Cutter /Grass Cutter Machine
Motor Power 1.5 HP
Blade Material High Carbon Steel Blade
Country of origin: India
Description
The Chaff/Grass Cutter is a tool used to chop chaff, hay, straw, and other plant materials for animal food production. This device automates the fodder preparation process, reducing the labor required to prepare fodder for livestock. The machine chops raw materials used for fodder into small uniform pieces, which promotes digestion in cattle and livestock and prevents them from rejecting any section of their meal. The machine is equipped with a 1.5 HP electric motor and high-quality cutting blades, allowing it to cut up to 500 kg per hour.
Features
:- User-Friendly Design: The chaff cutter is designed for easy operation, often featuring simple controls and portable designs for convenience.
- Efficient Cutting Mechanism: Designed to cut fodder and straw into small pieces for easier digestion by livestock.
- Easy Maintenance: Designed for simple maintenance and cleaning, ensuring longevity and consistent performance.
- Versatile Applications: Suitable for use with various materials like hay, straw, and green fodder, making them versatile for different livestock feeding practices.
Specification
:- Brand: HARI OUM
- Material : Mild Steel
- Motor Power : 1.5 HP
- Motor Speed : 1150 RPM
- Power Source : Electric
- Voltage : 220 V
- Number of Blades : 3
- Blade Material : High Carbon Steel Blade
- Output Capacity : 500 kg/hour
- Dimension(L x W x H) : 58 x 50 x 88 cm
- Weight : 40 Kg (Approx.)
Warranty Parts: Motor
Note:
- Covered in Warranty : Manufacturing Defects
- Not Covered in Warranty : Physical Damage
- Color of the machine may vary.
- The images are for reference only, the motor is included with the machine.
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: The user needs to connect a motor to an appropriate power source, in order to start working.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
