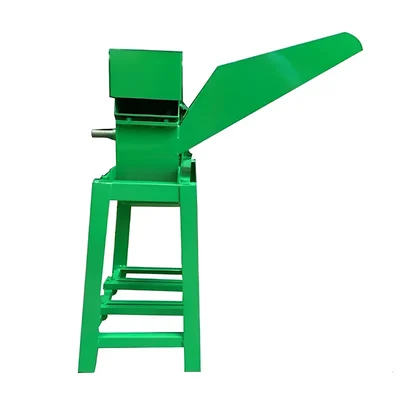

Commercial Chaff Cutter/Grass Cutter Machine Without Motor, 600-700 Kgs/hr
SKU: JS-JB-20212622
₹14600 (Including GST)
Get extra ₹219 Discount (On Checkout)
Delivery By: Apr 7 - Apr 9
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Chaff Cutter/Grass Cutter Machine Without Motor
Works on 2- 3 HP Motor
Cutting Capacity is of 600-700 Kgs/hr for 2 HP Motor and 800-1000 Kgs/hr for 3 HP Motor
Cutting Capacity is of 600-700 Kgs/hr for 2 HP Motor and 800-1000 Kgs/hr for 3 HP Motor
Country of origin: India
Description
The Chaff Cutter Machine is basically used to cut straws, grass, dry and wet fodder, which are then turned into feed for cattle. This machine can easily cut the plant products into small uniform pieces which are later on mixed with other forage materials and fed to cattle or livestock. This machine requires a 2-3 HP motor to function properly. The machine is made up using mild steel material and has a high volume production capacity, making it suitable for commercial usage.
Features
:- User-Friendly Design: The chaff cutter is easy to use, with simple operational controls, making it accessible even for those with limited experience in machinery operation.
- Energy Efficiency: This machine is designed to be energy-efficient, which helps reduce operational costs while maximizing output.
- High Capacity: The chaff cutter can cut approximately 600-1000 kg/hr of material depending on the motor power. This high cutting capacity makes this machine perfectly suitable for high volume fodder cutting operations.
Specification
:- Brand: Patel Brothers
- Weight (Approx.) : 43 kg
- Material : Mild Steel
- Required Motor : 2-3 HP
- Power Source : Electric Motor
- Cutting Capacity for 2 HP Motor : 600-700 Kgs/hr
- Cutting Capacity for 3 HP Motor : 800-1000 Kgs/hr
- Number of Blades : 2
- Blades Type : Fixed
- Blade Material : Tempered Iron Blade
- Cutting Plate Thickness : 10-12 mm (Approx.)
- Machine Feed : Straw, Dry Grass, Corn Stalk, etc.
- Weight : 43 Kg (Approx.)
Note :
- This machine can work on a 2 HP and a 3 HP motor. The cutting capacity depends upon the motor used. The cutting capacity for both motors is mentioned in the specifications.
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: As this machine doesn't include the motor with it. The user needs to connect a motor in order to start the fodder cutting operation. Ensure that the motor is connected to an appropriate power source.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance :
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Livestock Feed Preparation: Chaff cutters are primarily used to produce finely chopped fodder for various livestock, including cattle, sheep, and goats, enhancing digestibility and nutritional intake.
- Waste Reduction: Chaff Cutters efficiently utilize crop residues, converting what would otherwise be waste into valuable feed, thereby promoting sustainable farming practices.
- Time and Labor Savings: The mechanized operation of chaff cutters significantly reduces the time and labor required for chopping fodder manually, contributing to increased operational efficiency on farms.
Toolsvilla deals with various types of Chaff Cutter Machine, used for cutting dry grass, or hay into small pieces, before being mixed with other forage and used to feed the cattle.
