Brand: HPM

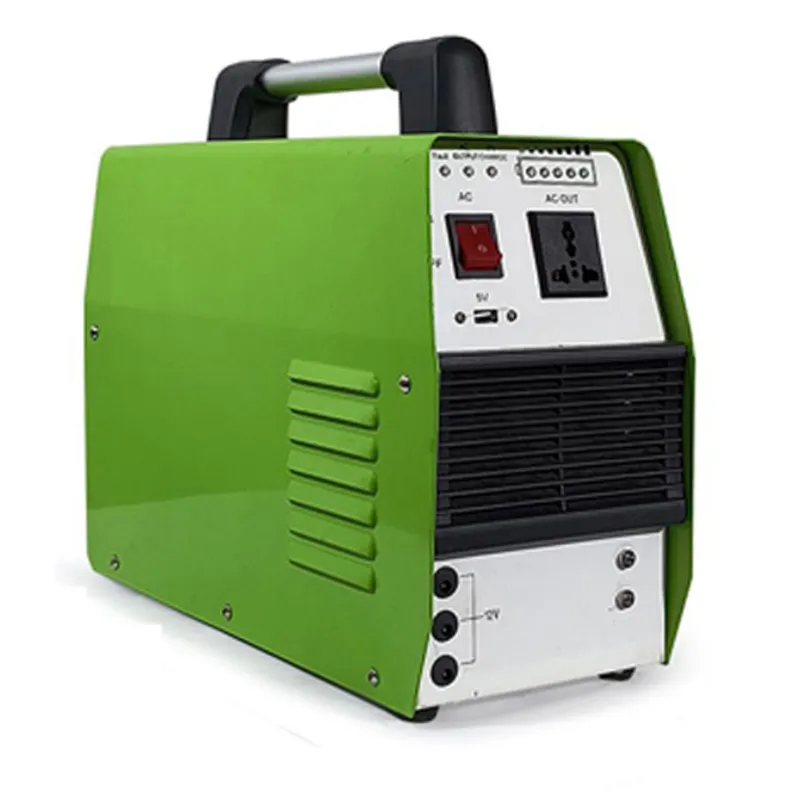

HPM 500VA Power Station with Inbuilt 704WH Lithium-Battery, 1 Year Warranty (PS-500LB)
SKU: TI-H5-22499
MRP : ₹23000
Offer Price : ₹15990 (Including GST)
Get extra ₹240 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
PS-500LB is a Portable multifunctional Battery Generator
It gives extra large backup upto 3 - 4 Hours
PS-500LB has a lowest price in its segment
It uses advance Lithium Ion battery 12.8V - 50Ah for power backup.
Country of origin: India
Description
A portable, multipurpose battery generator (power station) is the PS-500LB. This solar power station's primary benefit over competing models is that it provides extra large backup for up to three or four hours, and the PS-500LB has the lowest price in its class - that is, the lowest price without sacrificing performance. This inverter has three 12V DC outputs for 12V DC appliances and AC 230V and DC-5V outputs for charging smartphones. For outdoor and field power applications, the PS-500LB portable power station can be utilized both indoors and outdoors. This is a cost-effective solar power station concept that uses a state-of-the-art lithium-ion battery with a capacity of 12.8V to 50Ah for power backup.
Features
:- PS-500LB is a Portable multifunctional Battery Generator (Power Station).
- The main advantage of this Solar Power Station over other brands is that it gives extra large backup for up to 3 - 4 Hours & PS-500LB has the lowest price in its segment, i.e. minimum price but maximum performance.
- This inverter gives AC 230V output & also DC-5V for smartphone charging & 3* 12V DC output for running 12V DC appliances.
- PS-500LB is a Portable Power Station & that can be used in households & as well carried away anywhere for outdoor/ field power applications.
- This is an Economical model of Solar Power Station, it uses an advanced Lithium Ion battery 12.8V - 50Ah for power backup.
Specification
:- Product Type: Solar Power Generator
- Brand: HPM
- Weight (Approx.) : 12 kg
- Model No. : PS-500LB
- Battery : Lithium Iron Phosphate LiFePo4
- Battery Type : Prismatic 3.2 V- 50 AH
- Battery Voltage : 12.8 V (4S)
- Peak Capacity : 12.8V - 50 AH (640Wh)
- Single Cell Equivalent Capacity : 200Ah @ 3.2 V
- Life Cycles : ≥ 2000 Cycles to 80% Capacity (80 % DOD @ 25°C, Discharge Rate 1 C)
- BMS (Battery Management System): Multiple Safety Protections: Over Load, Over Voltage, Over Current, Over Temperature, Short Circuit, Cell Balancing
- Shelf Life : Charge Every 3 - 6 Months
AC 230 Volt Output (Invertor Power Supply) :
- Continues Rated Power Output : 300 W
- Peak Output Power : 350 W
- Voltage & Type : AC - 230 V,50Hz, Modified Sine Wave
- THD : NA
- Power Factor : 1 (Unity)
- Over Load : 110% < Load <120% @ 1min 120% < Load <150% @ 2 S
- Power Less (No Load & Turned- Off) : < 10W
- AC Output Back time @ 70% of rated load (VA) : ≥ 3 Hours
- Max. Efficient (>70% Load) : 92%
- Output Socket : Indian Version AC Socket x 1(US/UK/EU/AU Socket)
Other DC Outputs - 5V to 20 V & DC Ports :
- USB Output (2) : 5V DC, 1.5A, 7W
- 12V DC -DC 5521 (3 Ports) : 3 x 12V, 3A-36 W Each (5.5mm x 2.1 mm)
- USB & DC Over Load Current Protection : Yes
- USB & DC Output short Circuit Protection : Yes (Disconnect Load Recovery)
Indicators in Panel :
- Battery Level / Status Indicators: Battery Level Shows 5 Segment LED's
- Function Indicators : Fault / AC Output / PV Charges / Mains Charging / Car Charges
Charging Input Power (2 Way of Recharge) :
- AC Inbuilt Charger (Charging From Grid Power) (AC input 120V to 275V) : External AC - DC Adapter (CC/CV) - 5521 15V-8A (100 Watt) Charging Time > 7 Hours
- Solar Panel PV Charge : 18V- 150 W, Charging Time 7 - 8 Hours
- Heat Dissipation : Air Cooling (Fan), Aluminium Housing
- IP Rate : IP 32 Protected from Water Spray < 15˚From Vertical
Working Condition :
- Charge Temperature : 0˚C ~ 45˚C
- Operating Usage Temp. : -10˚C ~ 45˚C
- Operation Storage Humidity : 5% ~ 90%
Product Size :
- Dimensions (L x W x H) : 375 x 150 x 320 mm
Accessories
:- 1 Pcs of AC Charging Adapter with 5521 Pin
Applications
:- It is Portable and can also carried for Outdoor Fields jobs, shops, and Commercial applications & also very useful for household applications in rural areas.
Note : 1 Year Warranty
