Brand: KisanKraft

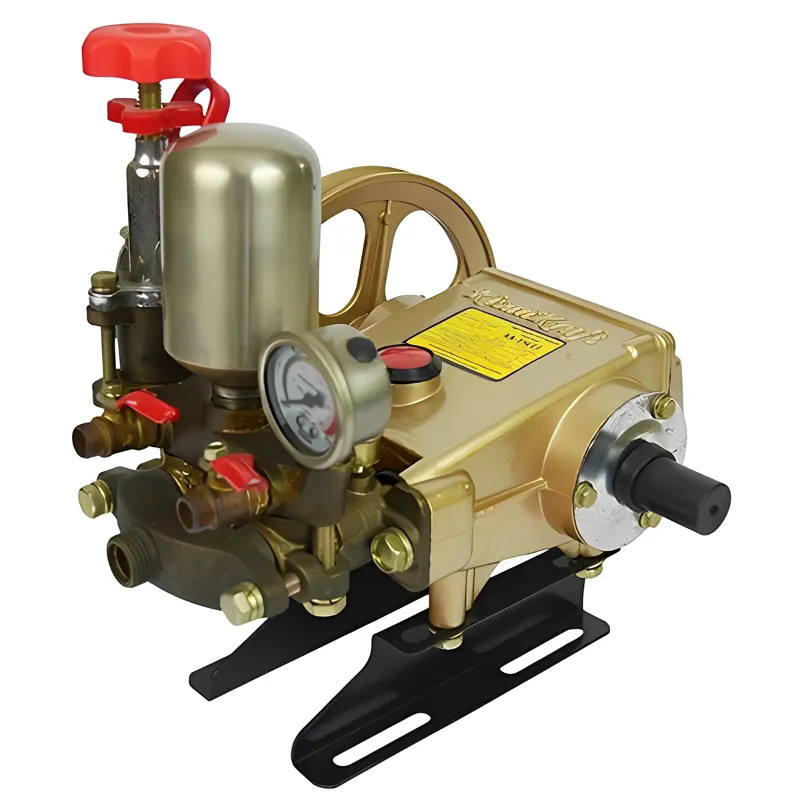

Kisankraft HTP Sprayer KK-18CI3, With Heavy Duty Cast Iron Body , For Cleaning & Agricultural Spray
SKU: BKS-MK-GT-KK-887
₹4800 (Including GST)
Get extra ₹72 Discount (On Checkout)
Delivery By: Feb 8 - Feb 10
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
KishanKraft Cast Iron HTP Portable Sprayers
Horizontal Triplex Piston
Engine Speed 800-1200 RPM
Country of origin: China
Description
Introducing the "HTP Pump without Motor/Engine" from Toolsvilla - a powerful and efficient solution for all your fluid transfer needs. Engineered with precision and durability, this high-quality pump delivers exceptional performance without the added weight and complexity of a built-in motor. Designed for versatility, the HTP Pump is compatible with a wide range of power sources, allowing you to seamlessly integrate it into your existing setup. Boasting a robust construction and reliable operation, this pump is the ideal choice for industrial, agricultural, and commercial applications. Whether you're transferring liquids, chemicals, or even viscous fluids, the HTP Pump ensures a smooth and controlled flow, making it a must-have addition to your toolbox. Experience the convenience and reliability of the "HTP Pump without Motor/Engine" from Toolsvilla. Order yours today and elevate your fluid management.
Features
:- Portable ( can be carried easily).
- Suitable for large spraying operations in orchards like mango, coffee, rubber plantations, apple, vineyards,ground crops and particularly for tall trees like coconut etc.
- Can be used for 4/2-wheeler service purposes and for irrigation as high lift water pumps
Specification
:- Product Type: HTP without Motor
- Brand: KisanKraft
- Model No. : KK-18CI3
- Body Material : Cast Iron Head
- Pump Material : Brass
- Required Motor : 2 HP
- Required Engine : 5 HP - 6.5 HP
- Speed : 800 - 1200 RPM
- Output Pressure : 10-40 kg/ cm2
- Suction Volume : 10-18 Ltr / min
- No. of Cock (Output Connections) : 2
- Suitable Hose Pipe Diameter : 8.5 MM & 10 MM
- Spray Range (Vertically) : 15 to 20 Feet (approx)
- Pump Oil : 450 ml (20 w 40 Grade)

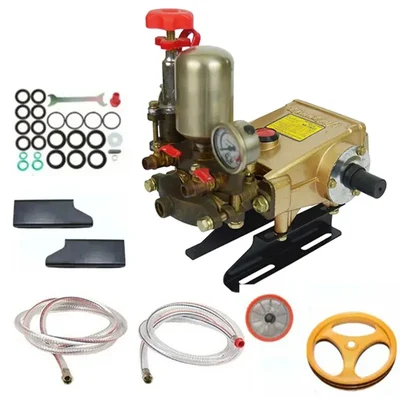

Accessories
:- Suction Hose Pipe
- Overflow Hose Pipe
- Pulley
- Filter
- Tool Kit & Washer
- User Manual
Applications
:Recommended usage :
- Vehicles (Cars, bikes etc) Washing
- Agriculture spray in big farmland.
- Pressure cleaning
Maintenance :
- Spray with clean water after spraying chemical
- Run the Pump (HTP) within in normal (Green) Meter range & Regularly tighten grease cup 2-3 cycles every 2 hrs of spraying
- Replace the pump oil after the sprayer has been used for the first 10 hrs, 50 hrs, and then after every 70
Usage
:- Mount the motor with suitable engine or electric motor
- Attach the inlet pipe, overflow pipe, and hose pipe.
- Connect with electricity if mounted with motor or pour the fuel in fuel tank and the engine oil in engine oil chamber accordingly and start the engine if mounted with an engine
- Be sure about safety precautions.
- Do your work as per your needs.
Always refer to the manufacturer's instructions and safety guidelines when operating an HTP pump without a motor.
