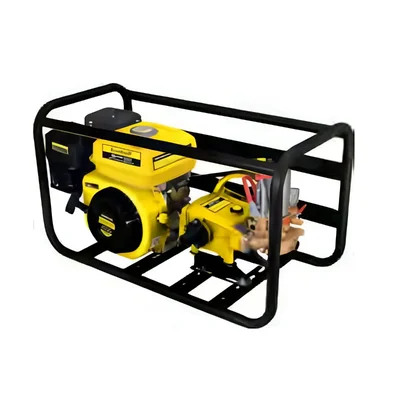

Kisankraft KK-PSP-22X3, Heavy Duty 4 stroke 196 CC HTP Pump Set with Engine

Features

• Powerful Engine Performance : The HTP pump is equipped with a robust engine, this powerful engine ensures that the pump can handle demanding tasks efficiently, providing high flow rates and pressure suitable for various applications such as irrigation, cleaning, and agricultural spraying.
• Advanced Pump Design :  HTP pumps feature a triple piston design that maximizes power and efficiency. The advanced engineering ensures consistent performance even under challenging conditions.
•  Fuel Efficiency :  The petrol engines used in HTP pumps are designed for optimal fuel efficiency and  also minimizes environmental impact by consuming less fuel while delivering high performance.
• Durability and Reliability :  Constructed from high-quality materials, HTP pumps are built to withstand harsh environments and prolonged use.
• User-Friendly Design :  HTP pumps are designed with user convenience in mind. Easy maintenance procedures help keep the pump in optimal working condition.
• High Output Pressure :  HTP pumps can achieve output pressures ranging from 10-40 kg/cm², allowing them to tackle tough jobs effectively by providing the necessary force required for various applications.

Specification

Accessories

Usage

• Before you start:
  • Read the Manual properly  and Wear Personal Protective Equipment.
  • Ensure the air filter is clean and the tank is securely closed.
  • Connect Suction Hose : Attach one end of the suction hose to the pump’s inlet port and submerge the other end in water or liquid you intend to pump. Make sure that there are no air leaks in this connection as it can affect performance.
  • Attach Discharge Hose: Connect a discharge hose to the outlet port of the pump where water will be expelled. Ensure this connection is tight to avoid leaks during operation.
  Starting the machine:
  •  Fill the tank with petrol (No 2T oil needed) there is a separate chamber for pouring the engine oil.
  •  Prime the Pump (if necessary): Some pumps may require priming before starting. To do this, fill  the suction hose with water by either submerging it or using a priming plug if available.
  •  Turn On Fuel Valve: If your model has a fuel valve, turn it on to allow fuel flow to the engine.
  • Set Choke Position: Depending on ambient temperature, set the choke lever accordingly (closed for cold starts).
  • Start Engine : Pull on the recoil starter handle firmly until you hear it start.
  • Gradually open the choke as it warms up if it was initially closed.

  How to stop the machine:
  • Move the throttle control to the “OFF” position or turn off the ignition switch. This will stop the engine from running.

Applications

• Agriculture Pest Spraying.
• Horticulture Pest Spraying.
• Chemical Spraying in long trees like Palm, Mango, Areca nut etc.
• Cleaning.
• Car washing.
• Industrial High pressure washing.
