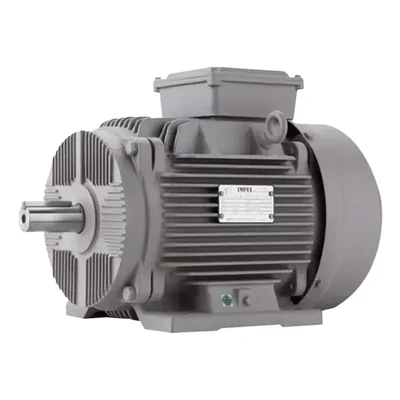

Impel IE2 Series 1 HP Three Phase 6 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
SKU: TI-II-15251
₹8700 (Including GST)
MRP : ₹14000
Get extra ₹131 Discount (On Checkout)
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL IE2 Series 1 Hp Foot Mounted 3 Phase AC Induction Motor
6 Pole, Copper Winding
This motor is suitable for Textile, Grinders, Threshers, Garage Compressor, Sugarcane Crusher etc.
2 Years Of Warranty
Country of origin: India
Description
Impel IE2 Series 1 HP Three Phase 6 Pole Foot Mounted AC Induction Motor With 2 Years Warranty
Features :
- High Efficiency and Long Life Product
- Motors are fitted with dynamically balanced aluminium die cast squirrel cage rotors
- High Torque Level.
- High Power Factor.
- Low Temperature Rise.
- Minimum copper losses due to use of electrolytic grade of copper
- Minimum friction losses with SKF/FAG
- Easy maintenance
- Minimum Pay Back Period
Specification :
- Series : IE2
- Product Type : AC Induction Motor
- Brand : IMPEL
- Power : 1 HP (0.75 kW)
- No Of Poles : 6
- Winding : Copper
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt (± 10% )
- Frequency : 50Hz ( ± 5% )
- Current Rating : 2 Ampere
- Speed : 960 RPM
- Mounting Type : B3 Foot
- Body Material : Casting
- Standard : IS12615:2018
- Frame : 90S
- IP Rating : IP55
- Insulation Class : F
- Duty Cycle : S1
- Ambient Temperature : 50C
- Enclosure : TEFC (Total Enclose Fan Cooled)
- Cooling Method : IC411 (Shaft Mounted Fan)
- Weight : 22 Kg (Approx.)
Areas Of Application :
- This motor is suitable for Textile, Grinders, Threshers, Garage Compressor, Sugarcane Crusher etc.
Benefits :
- Longer insulation and bearing lives
- Lower heat output and less vibration
- Extended winding life
- Increased tolerance of overload conditions
- Higher tolerance for increased voltage rates or phase imbalance
WARRANTY :
- 2 Years Of Warranty As Per IMPEL Motors Policy.
