Brand: Impel

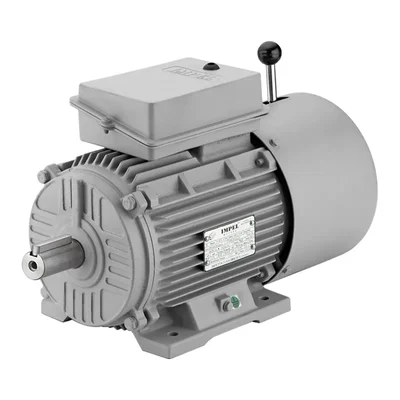

Impel 2 HP Three Phase 4 Pole Foot Mounted AC Induction Motor With DC Braking System - 2 Years Warranty
SKU: TI-I2-15371
MRP : ₹26999
Offer Price : ₹23400 (Including GST)
Get extra ₹351 Discount (On Checkout)
BUY IN BULK
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
IMPEL 2 Hp Foot Mounted 3 Phase AC Induction Motor With DC Brake
4 Pole, Copper Winding
This motor is suitable for Textile, Crushers, Machine Tools, Cranes, Compressors, Conveyors etc.
2 Years Of Warranty
Country of origin: India
Description
Impel 2 HP Three Phase 4 Pole Foot Mounted AC Induction Motor With DC Braking System - 2 Years Warranty
Description :
- IMPEL - brake motors are asynchronous three-phase totally enclosed fan cooled motors. The braking action is always obtained through a very quick and precise stop, thereby guaranteeing a safe and prompt intervention in the event of an unforeseen power supply failure.
- These kinds of motors work best in situations when precise and rapid braking are necessary.
- A brake motor is a three-phase induction motor with standard size and output rating that has been adapted for use in braking applications. The three phase AC current or DC current via a rectifier in the terminal box powers the electro-magnetic disc brake. Spring pressure activates the brake when the brake coil is de-energized.
Specification :
- Product Type : AC Induction Motor With DC Brake
- Brand : IMPEL
- Power : 2 HP (1.5 kW)
- No Of Pole : 4
- Winding : Copper
- Electricity Connection : Three Phase
- Rated Voltage : 415 Volt (± 10% )
- Frequency : 50Hz ( ± 5% )
- Current Rating : 3.2 Ampere
- Speed : 1440 RPM
- Mounting Type : B3 Foot
- Body Material : Casting
- Standard : IS12615:2018
- Frame : 90L
- IP Rating : IP55
- Insulation Class : F
- Duty Cycle : S1/S4 Compatible
- Ambient Temperature : 50°C
- Enclosure : TEFC (Total Enclose Fan Cooled)
- Cooling Method : IC411 (Shaft Mounted Fan)
- Weight : 24 Kg (Approx.)
Areas Of Application :
- This motor is suitable for Textile Industry, Crushers, Machine Tools, Cranes, Material Handling, Small Compressors, Conveyors etc.
WARRANTY :
- 2 Years Of Warranty As Per IMPEL Motors Policy.
Specifications
:- Product Type: Power - 2HP
- Brand: Impel
