This Manual round bottle labeling machine is can be adhesive sticker label for all type of round bottles. It has a sticker roll holder which is makes easy the labeling process. This machine is suitable for labeling round bottles like PET bottle, plastic bottle, glass bottle, metal bottle, etc and its Widely used in cosmetics, beverage, foodstuff, food, medical industries.
Features
:
Small size, only needs a little space, easy to move.
Saves time and labour workforce
Labeling bottle size is adjustable to meet the different labeling needs.
Being manual means that it does not require complex electrical systems or programming, making it easier to operate and maintain.
Specification
:
Product Type: Adhesive Sticker Label
Brand: Generic (Imported)
Model : MT-30
Type : Self-adhesive labeling machine

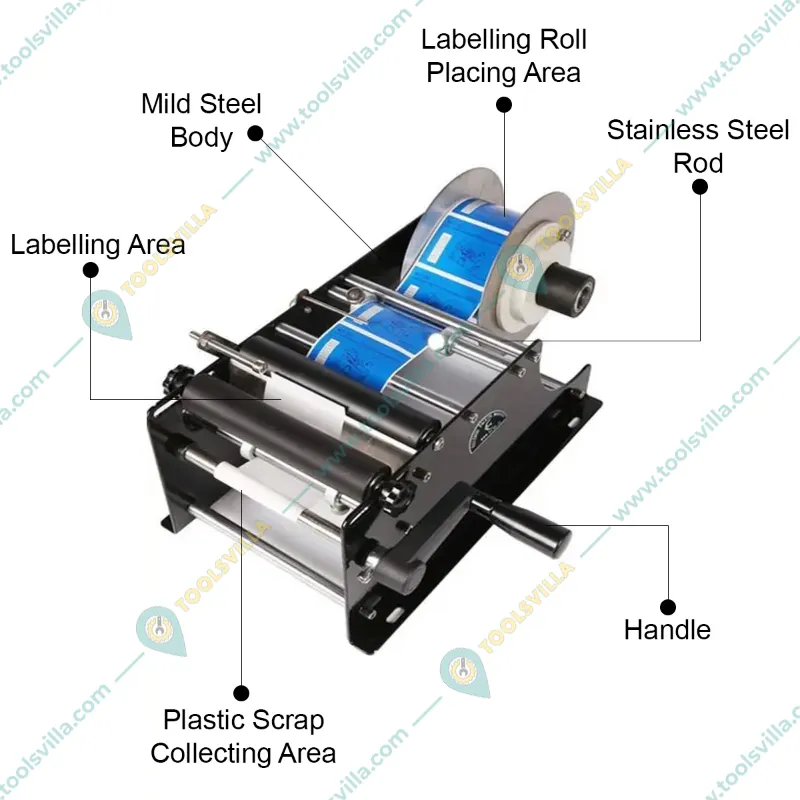

Body Material : Mild Steel
Rod Material : Stainless Steel
Packaging Materials : plastic, glass
Packing Type : cans, bottles
Speed : 30 times/min
Accuracy : +/-0.5 mm
Label Roll Inner Diameter : ≥75 mm
Label Roll Out Diameter : ≤150 mm
Bottle Diameter : 15-120 mm, Height ≤150 mm
Label Width : 10-110 mm
Label Length : 10-300 mm
Weight : 5 kg (Approx.)
Usage
:
Preparation : Ensure the machine is clean and free of any debris. Gather your bottles and labels, ensuring they are compatible with the machine.
Setup : Adjust the labeling machine according to the size of the bottles you will be using. This typically involves setting the height and width guides. Load the labels onto the label roll holder

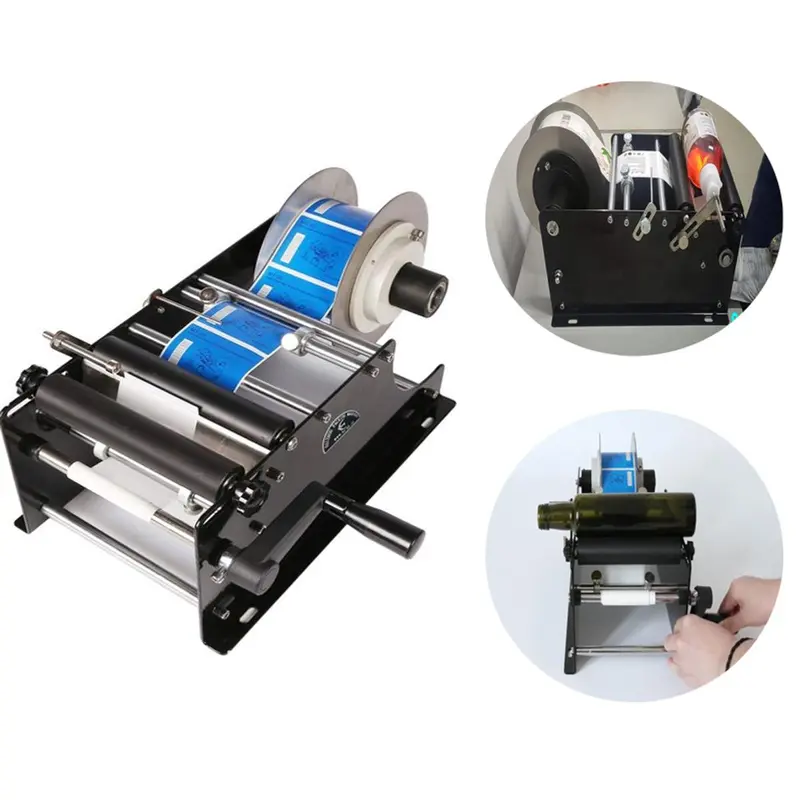

Labeling Process :Place a bottle on the machine’s platform. Manually rotate the handle the lever to apply the label onto the bottle.
Quality Check : Inspect each labeled bottle for proper alignment and adhesion.
Repeat : Continue placing bottles and applying labels until all bottles are labeled.
Maintenance :
Routine Cleaning : Regularly clean the machine to remove dust, adhesive residues, and debris. Use a soft, dry cloth for the exterior and compressed air for hard-to-reach areas.
Inspection of Components :Check all parts of the machine, including labeling heads, rollers, for wear or damage.
Applications
:
Beverage Industry : Ideal for labeling round bottles containing beverages like juices, water, and soft drinks.
Food Industry : Suitable for labeling food products in round containers, such as sauces, jams, and honey.
Cosmetics Industry : Perfect for labeling round bottles of cosmetics like lotions, shampoos, and oils.
Pharmaceutical Industry : Useful for labeling round bottles of medications and supplements.
