Brand: Generic (Imported)
19mm Width Pneumatic Strapping Machine Tools
SKU: SJ-DI-20211630
MRP : ₹22999
Offer Price : ₹17999 (Including GST)
Get extra ₹270 Discount (On Checkout)
Delivery By: Jan 30 - Feb 1
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Pneumatic Strapping Machine
Strapping Width Upto 19 mm
Strap Material PP / PET
Country of origin: China
Description
This pneumatic tool is applicable to strap packaging. This strapping tool is able to hardly strap the boxes, carton boxes, etc and its widely used in the export enterprises, factories, companies, etc to improve the product safety. This pet tape is high-tension, environmental -protection, no-pollution and can be used to replace steel tape.
Features
:- Strap Material Compatibility : This pneumatic strapping machine can accommodate different strap materials such as Polyester (PET) and Polypropylene (PP). This versatility allows users to select the most suitable material based on their packaging needs.
- Air Pressure Requirements : Operating within a specific air pressure range is crucial for optimal performance; this machine require an air pressure between 0.5 to 0.7 MPa (72 to 100 PSI).
- Air Consumption Efficiency : This tool consume about 0.3 liters per minute of compressed air, which contributes to their efficiency in terms of energy use during operation.

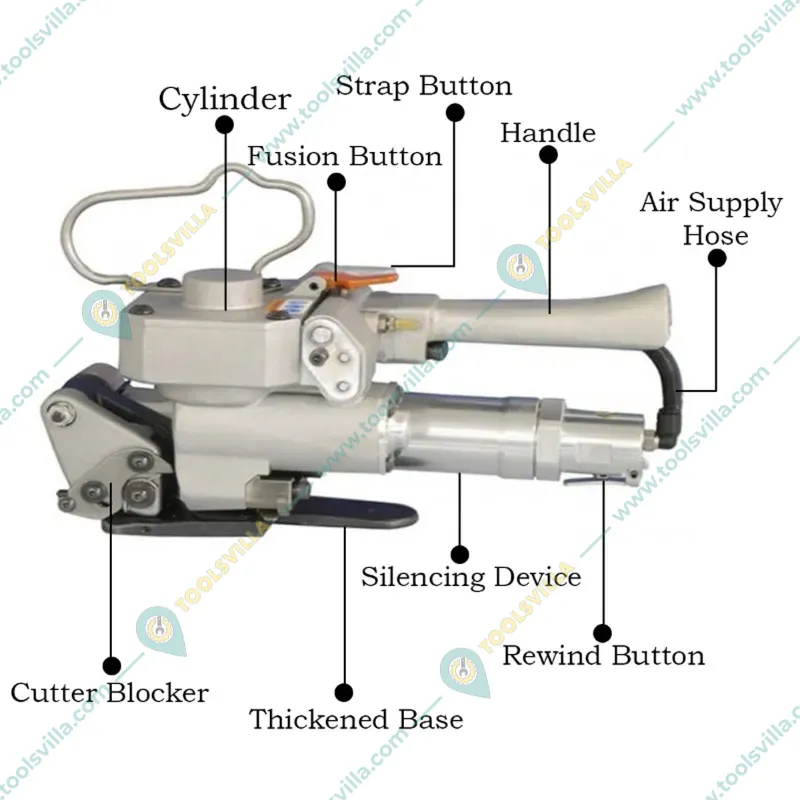

- Ergonomic Design : Designed with user comfort in mind, this machine feature ergonomic handles that reduce strain during extended use.
Specification
:- Product Type: Strap Machine
- Brand: Generic (Imported)
- Automation Grade : Automatic
- Air Consumption : 0.3 L/Min
- Air Pressure : 0.5 ~ 0.7 Mpa (72-100 psi)
- Strap Material : PP / PET
- Strapping Width : Upto 19 mm
- Weight : 4 kgs (Approx.)
Usage
:Preparation : Ensure the machine is properly set up and connected to an air compressor with the appropriate pressure (0.5-0.7MPa or 72-100PSI). Select the correct strap width (13mm, 16mm, or 19mm) and material (PP/PET).
Loading the Strap : Feed the strap through the machine according to the manufacturer’s instructions, ensuring it is threaded correctly for proper tensioning and sealing.
Adjust Settings : Set the desired tension level and adjust the welding time between 2-5 seconds based on your specific application needs.
Positioning : Place the items you wish to strap together in a stable position, ensuring they are aligned properly for effective strapping.
Strapping Process : Activate the machine by pressing the button to start tensioning the strap around your items. Once tensioned, allow the machine to complete its sealing process as per your adjusted settings.
Finishing Up : After sealing, release the trigger and carefully remove the strapped items from under the machine. Inspect the seal for integrity before moving or storing your strapped packages.
Maintenance :
- Regular Cleaning : Ensure that the machine is cleaned regularly to remove dust, debris, and any strap remnants. This helps maintain optimal performance and prevents jams.
- Inspection of Components : Periodically inspect key components such as the air supply system, tensioning mechanism, and seals for wear or damage.
Applications
:- Packaging of Heavy Goods : It is suitable for strapping heavy items such as bundles, pipes, coils, and bars, ensuring they are tightly secured for transportation.
- Logistics and Shipping : The machine is widely utilized in logistics to prepare goods for shipping by providing a reliable method of bundling products together, which helps in maintaining their integrity during transit.
- Construction Industry : In construction, it can be used to strap materials like timber and other building supplies, facilitating easier handling and storage.
- Manufacturing Processes : It is also applicable in manufacturing environments where products need to be bundled or packaged efficiently before distribution.
