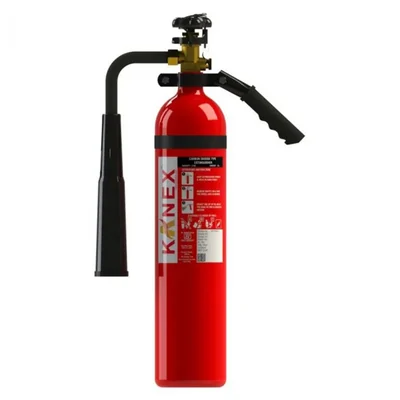

Kanex (KFCSQZRQ-2) 2 KG 8B Co2 High-Pressure Fire Extinguisher

Features

• The gas is 99.95% pure carbon dioxide.
• superior enamel paint.
• Wheel-type brass valve with discs for pressure release.
• Hydro testing is done on shells up to 250 bar.
• Braided hose with high pressure wire.
• It's also easier and less expensive to maintain and service.
• maximum visibility when the discharge is happening.
• Absence of Electrical Conductivity Let's go back to the operator.
• Absence of Static or Thermal Shock
• TYPE TESTS:  1) Resistance to Temp. changes 2)Impact test 3)Vibration test 4) Tapping test 6)Intermittent discharge 7)Maximum Service Pressure 8)Crushing test 9)Pressure cycling

Specification

• Model. No.: KFCSQZRQ-2
• Extinguishing Medium: CO2 Gas (Purity as per IS: 15222-99.5%)
• Body: Seamless Manganese steel – ISI Marked confirms to IS:7285
• Valve: Brass – Squeeze grip Type – IS: 3224
• Siphon Tube: Aluminum
• Discharge Horn: Polyethylene – Non-Conductor of Electricity
• Wall mounting Bracket with screw: Mild steel (Powder Coated)/M.S
• Min. effective Discharge Time: 8 Sec. (Actual : 9 Sec. approx.)
• Bulk Range of Discharge: Min. 2 meter (Actual : 2 meter approx.)
• Percentage of Discharge: Not Less than 95 % (Actual : 98% approx.)
• Temperature Range: -30 °C to +55 °C
• Service Pressure: 60-70 bar
• Fill Density: Not to exceed 0.667 percent

• Pressure test (Pt): 250 bar (3.5 MPa)
• Minimum Burst Pressure test (Pb): for Body 55 bar (5.5 MPa)
• Leakage test: By dipping in water, leakage to be checked
• Partial discharge: The second pressure or weight shall not be less than 75% of the first after interruption of the Discharge.
• Burst Pressure Test For Discharge Hose: Not Less than 35 bar (3.5 Mpa)
• Max. Diameter: 108±10 mm.
• Height: 580 mm (Approx.)
• Shell Thickness: 3.5 or 4.0 mm (Minimum)
• Colour & Paints: Painted with Durable Enamel PO Red shade No.538 of IS: 5
