Brand:  Kirloskar

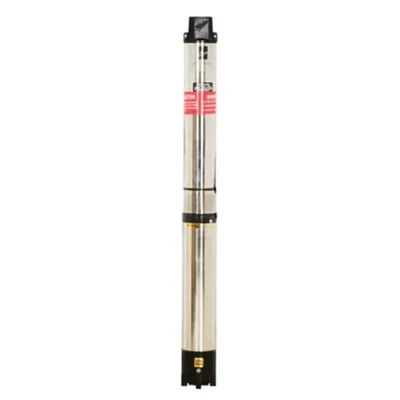

Kirloskar 3HP 12 Stage 4 inch Water Filled 3Phase Submersible Pump, 322ft Head- 1 Year Warranty (KS4E-3012)

Easy Return
& Refund

Quality
Assurance

Trusted
Delivery

After Sales
Assistance

Buyer
Protection

Short Description

Kirloskar (KS4E-3012) 3 HP 3Phase Submersible Pump

120 LPM Max. Discharge Rate

98m Max.  Head

10 Cm Boring Size

1 Year Warranty

Country of origin: India

Description

Kirloskar 3HP 12 Stage 4 inch Water Filled 3Phase Submersible Pump, 322ft Head- 1 Year Warranty (KS4E-3012)

Features :

• Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
• High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
• Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
• Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate. 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
• Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
• Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
• CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated

Specifications :

• Model No. : KS4E-3012
• Product Type : Borewell Submersible Pump
• Brand : Kirloskar
• Power Source : Corded Electric

• Wattage : 2.2 kW
• Power Supply : 415V, 50 Hz
• Electricity Connection : Three Phase
• Motor Type : Water Filled
• Current Rating : 6.9 Amp.
• Boring Size : 4 Inch (100 mm)

• Outlet Pipe (Size) : 38 mm

• Max. Head : 322 Feet (98 Meters)

• No. of Stages : 12

• Max. Discharge Rate : 120 LPM (7200 LPH)

• Winding Material : Copper

Materials of Construction :

• Pump Housing : Stainless Steel
• Pump Shaft : Stainless Steel
• Motor Housing : Stainless Steel
• Motor Shaft : Stainless Steel
• Thrust Bearing : Carbon + Stainless Steel
• Motor/Pump Bushes : Gun Metal
• Impeller : Noryl
• Diffuser : Noryl
• NRV : Cast Iron
• Suction : Cast Iron

Applications :

• Domestic and industrial water supply
• Gardening and small farm irrigation.
• Farmhouse, nurseries and gardens
• Water supplies for high rise building.
• Construction site and Rural area water supply.

Warranty :

• One year onsite warranty

Specifications

 :

• Brand: Kirloskar
• Power : 3 hp
• Weight (Approx.) : 37.2 kg
• Flow Rate : 120 lpm
• Head : 98 meter
