Brand: Kirloskar

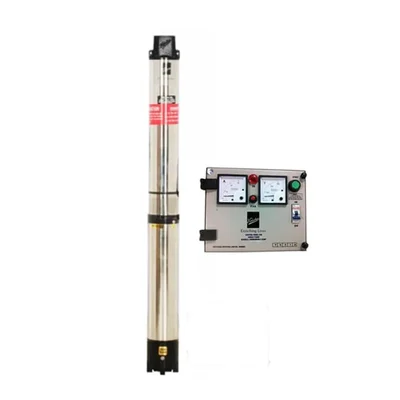

Kirloskar 3HP 11 Stages 4 inch 1Phase Water Filled Submersible Pump With CP, 243ft Head- 1 Year Warranty (KS4G-3011 -CP)
SKU: DP-KB-21072
MRP : ₹53200
Offer Price : ₹35999 (Including GST)
Get extra ₹540 Discount (On Checkout)
Delivery By: Dec 16 - Dec 18
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KS4G-3011 -CP) 3 HP Submersible Pump with CP
240 LPM Max. Discharge Rate
74m Max. Head Range
4 Inch (100 mm) Boring Size
1 Year Warranty
Country of origin: India
Description
Kirloskar 3HP 11 Stages 4 inch 1Phase Water Filled Submersible Pump With CP, 243ft Head- 1 Year Warranty (KS4G-3011 -CP)
Features :
- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations and reduces motor burning in low voltage.
- High efficiency and Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Longer and Trouble Free Life : High grade engineering materials like Graded Cast Iron Components, Stainless Steel Shaft, Noryl Impellers, Bronze Bushes, Heavy duty Carbon + SS Thrust Plate. 99.9% pure Copper Rotor and Winding Wires for longer and trouble free life.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
- Wide Voltage Motor Designs with 100% Copper Rotor : Motors are designed with extra overload capacities, more water spaces and engineered with 100% pure Electro Grade Copper performs well in low voltage with minimum discharge drops and suitable for wide voltage applications.
- CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated.
Specifications :
- Model No. : KS4G-3011 - CP
- Product Type : Borewell Submersible Pump
- Brand : Kirloskar
- Power Source : Corded Electric
- Motor Power : 3 HP (2.2 kW)
- Motor Power : 220V, 50 Hz, AC Supply
- Electricity Connection : Single Phase
- Cooling Type : Water Filled
- Current Rating : 19.8 Amp
- Boring Size : 4 Inch (100 mm)
- Max. Head : 243 Feet(74 Meters)
- No. of Stages : 11
- Outlet Pipe (Size) : 50 mm
- Max. Discharge Rate : 240 LPM (14400 LPH)
- Winding Materia : Copper
- Weight : 38 Kg (Approx.)
Materials of Construction :
- Pump Housing : Stainless Steel
- Pump Shaft : Stainless Steel
- Motor Housing : Stainless Steel
- Motor Shaft : Stainless Steel
- Thrust Bearing : Carbon + Stainless Steel
- Motor/Pump Bushes : Gun Metal
- Impeller : Noryl
- Diffuser : Noryl
- NRV : Cast Iron
- Suction : Cast Iron
Applications :
- Domestic and industrial water supply
- Gardening and small farm irrigation.
- Farmhouse, nurseries and gardens
- Water supplies for high rise building.
- Construction site and Rural area water supply.
Warranty :
- One year onsite warranty.
***This Borewell Submersible Pump comes with Control Panel Board
Specifications
:- Product Type: Power - Above 2HP
- Brand: Kirloskar
