Brand: Kirloskar

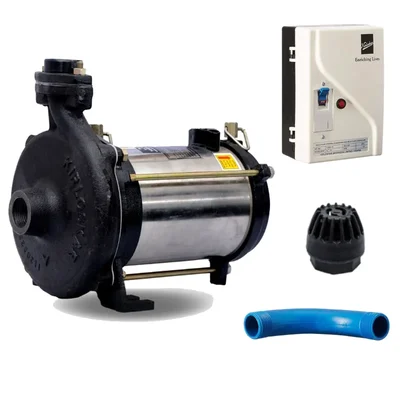

Kirloskar (KOSi-135) 1 HP Single Phase Openwell Submersible Pump Including Control Panel With 1 Year Warranty
SKU: RON-KBL-22033
MRP : ₹17500
Offer Price : ₹11500 (Including GST)
Get extra ₹173 Discount (On Checkout)
Delivery By: Dec 20 - Dec 22
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Kirloskar (KOSi-135) 1 HP Open Well Submersible Pump
17 to 29 Meter Operating Head Range
108 LPM Discharge Rate
1 Year Warranty
Country of origin: India
Description
Kirloskar (KOSi-135) 1 HP Single Phase Openwell Submersible Pump Including Control Panel With 1 Year Warranty
Features :
- Wide Voltage Design : The motor is designed to withstand wide voltage fluctuations from 160 to 240 volts and reduces motor burning in low voltage.
- Lightweight And Compact Design : Constructed with special grade engineering materials, compact designs for ease of handling and installation.
- Dynamically Balanced Rotating Parts : Minimum vibrations protect components from damages during the operations, consistent performance as concentricity is maintained.
- Replaceable Wearing Parts : All wearing parts within the pumps are easily accessible and replaceable which provides ease of maintenance thereby extending the life of the pump.
- Easy Maintainable Designs : Easy maintainable design and better interchangeability of components so that pump can be serviced even at remote locations by semi-skilled technicians
- CED-Cathodic Electro Deposition : CED is the latest coating technology for corrosion resistance with uniform coating, provides 5 times more protection over conventional painting, resulting in longer life. All major Cl parts of Kirloskar pumps coming in contact with the water are CED coated
- High Efficiency And Energy Saving Design : Innovative design manufactured at state of art plant, delivers optimum efficiency at lower energy consumption resulting in significant cost savings.
- Advanced Water Cooled Motors Designs : The motor is filled with potable water, protects from overheating and facilitates smoother and trouble free operation for the years.
Specifications :
- Model No. : KOSi-135
- Product Type : Openwell Submersible Pumps
- Brand : Kirloskar
- Power Source : Corded Electric
- Motor Power : 1 HP (0.75 kW)
- Power Supply : 210V, 50 Hz, AC Power Supply
- Electricity Connection : Single Phase
- Max. Current : 8.50 Amp.
- Head : 24 Meter (78 Feet)
- Operating Head Range : 17 to 29 Meter (55 to 95 Feet)
- Speed : 2800 RPM
- Discharge : 1.80 LPS (108 LPM)
- Pipe Size (Suction x Delivery) : 25 x 25 mm
- Weight : 12.636 Kg (Approx.)
Materials of Construction :
- Motor Body : Stainless Steel
- Shaft Material : Stainless Steel
- Impeller : Cast Iron / Noryl
- Delivery Casting : Cast Iron
- Insulation Class : B-Class
- Protection : IP68
- Winding : Copper
Applications :
- Domestic and community water supply
- Gardening and small farm irrigation
- Water fountains
- Construction site
- Water supply to overhead tanks
Warranty :
- One Year Onsite Warranty.
Specifications
:- Product Type: Power - 1HP
- Brand: Kirloskar
