Brand: HT

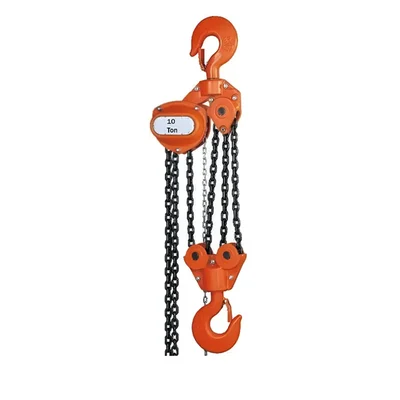

HT 10 Ton*3 meter Chain Pulley Block With 3 Meter standard Lift - Four Fall
SKU: AB-PB-2044
MRP : ₹25000
Offer Price : ₹20300 (Including GST)
Get extra ₹305 Discount (On Checkout)
Delivery By: Dec 26 - Dec 28
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
HT 10 Ton Chain Pulley Block
4 Fall type & 3 m lift
Multiple Bearing Mechanism
Country of origin: China
Description
HT 10 Ton*3 meter Chain Pulley Block With 3 Meter standard Lift - Four Fall
Description :
- Chain Pulley Blocks are quite putative for their longevity and robust quality. Its demand is constantly increasing because of the superiority and attributes it bears within. Comes with a 3-meter lift.
Features :
- Reduces and Minimizes the Lifting forces up to almost 35% and makes the Chain Blocks work at higher speeds,
- These Chain Blocks are Made from the Highest Quality Hardened Triple Spur Gears, Grade 80 Alloy Steel Load Chains and Zinc Plated Hand Chains.
- Made by special new technology of low effort and high-speed mechanism
- Meets all the Required world Standards for Lifting Chain Blocks
- Lightweight and High Strength Grade 80 Alloy Steel Chain
- Compact Design Makes it Eligible for Low Head Room applications.
- Reinforced Double Pawl Brake System and Large Diameter Pawl Springs make higher braking efficiency.
- Open Frame design makes it easy for maintenance and periodic inspection.
Specifications :
- Model No. : 10T
- Product Type : Chain Pulley Block
- Brand : HT
- Load Capacity : 10000 Kg (10 Ton)
- Running Test Load : 1500 Kg (1.5 Ton)
- Standing Lifting Height : 3 meter
- Load Chain Length : 3 meter
- No. of Fall : 4
- Load Chain Diameter : 10 mm
- Material : Alloy Steel
- Hand Chain Diameter : 6 mm
- Working : Manual
- Extra Weight Meter of Extra Lift : 9.8 kg
- Dimension (A x B x C x D x K) : 207 x 398 x 798 x 85 x 64 mm
- Weight : 50 kg
- Packaging Type : Wooden Box
Application :
- Suitable for a Wide Range of Applications for lifting materials which Include Construction, Manufacturing, Workshops, and warehouses.
Note :
- The video shown are for illustration purposes only and may not be an exact representation of the product. The color and Shape of the product may vary.
