Brand: Globe

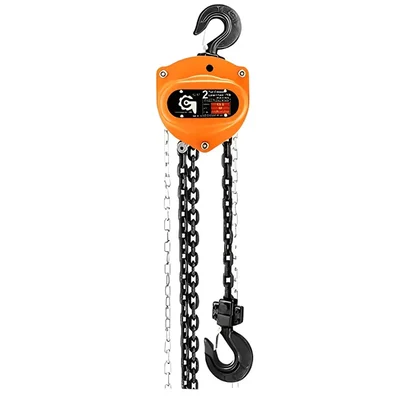

Globe Classic Series 2 Ton Chain Pulley Block, 3 Meter Lift Single Fall - 12 Months Warranty
SKU: SG-PB-2041
MRP : ₹12000
Offer Price : ₹8999 (Including GST)
Get extra ₹135 Discount (On Checkout)
Delivery By: Dec 25 - Dec 27
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Classic Series 2 Ton Chain Pulley Block
3 Meter Standard Lifting Height
Modular Design and High Performance
Country of origin: India
Description
Globe Classic Series 2 Ton Chain Pulley Block, 3 Meter Lift Single Fall - 12 Months Warranty
Description :
- A chain pulley block, also known as a hand chain hoist or chain hoist, is a mechanical device used to lift and lower heavy loads with relative ease. It operates using a system of chains and pulleys, allowing for significant weight lifting with minimal physical effort.
Salient Feature :
- Load chain sprocket : Steel recommended as per IS 3832, ultra fine quality fully pocketed cast steel & precisely machined to suit calibrated load chain & roller bearing for free rotation, reducing effort for lifting. Improved life cycle and smooth running.
- Hook : Heavy duty steel forged compact hook for top& bottom hook assembly with safety latch, capable to withstand shock loads manufactured as per IS 15560-2005.
- Safe braking arrangement : Self-actuating screw disc type mechanical braking arrangement with non-asbestos based brake disc provides long lasting and high performance.
- Gear Set : Highly efficient, compact and hard wearing gears manufactured from alloy steel, precisely machined and processed.
- Triple protection cover : Heavy duty steel coated cover protects from atmospheric conditions, external shocks and improves life of complete chain block.
- Chain guide roller : Double chain guide rollers ensures accurate alignments & smooth movement of load chain.
- Ratchet & pawl arrangement : 2 Nos. spring loaded heavy duty heat treated pawl enhances the performance and improves safety in all positions.
- Bearing : 2 Nos. spring loaded heavy duty heat treated pawl enhances the performance and improves safety in all positions.
Specification :
- Model No : CL2S
- Product Type : Chain Pulley Block
- Brand : Made In India
- Capacity : 2000 Kg (2 Ton)
- Standard lifting height (m) : 3
- Running test load : 2500 Kg (2.5 Ton)
- Load Chain Diameter : 8 mm
- Hand Chain Diameter : 5 mm
- No. Of fall : 1
- Headroom H : 480 Mtr.
- Load chain & pitch (mm) : 8X24
- Hand effort in (kg) : 30
- Dimension A (mm) : 200
- Dimension B (mm) : 178
- Dimension C (mm) : 34
- Dimension D (mm) : 46
- Packing measurement (LxWxH) (cm) : 30x22x18
- Net Weight : 21 Kg
- Extra weight per meter of extra lift (kg) : 2.2
Applications :
- Petroleum Refineries
- Chemical plants
- Warehouse
- Coal mines
- Gas & power plants
Warranty : 12 Months Manufacturer Warranty.
Note : The video shown are for illustration purposes only and may not be an exact representation of the product. Colour and Shape of the product may vary.
Specifications
:- Product Type: Chain Pulley Block
- Brand: Globe
