Brand: Generic (Imported)

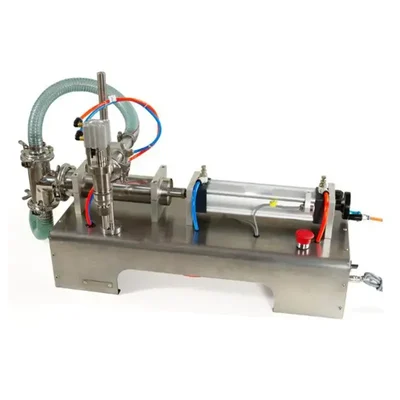

Single Nozzle Liquid Filling Machine 10-100 ml, Semi-Automatic
SKU: DAR-SH-2131
₹30000 (Including GST)
Get extra ₹450 Discount (On Checkout)
Delivery By: Feb 10 - Feb 12
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Single Nozzle Liquid Filling Machine
10-100 ml Filling Volume
600 bottles per hour Efficiency
Country of origin: China
Description

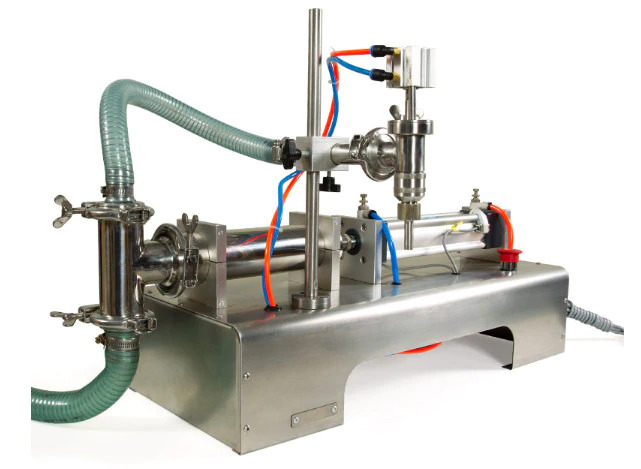

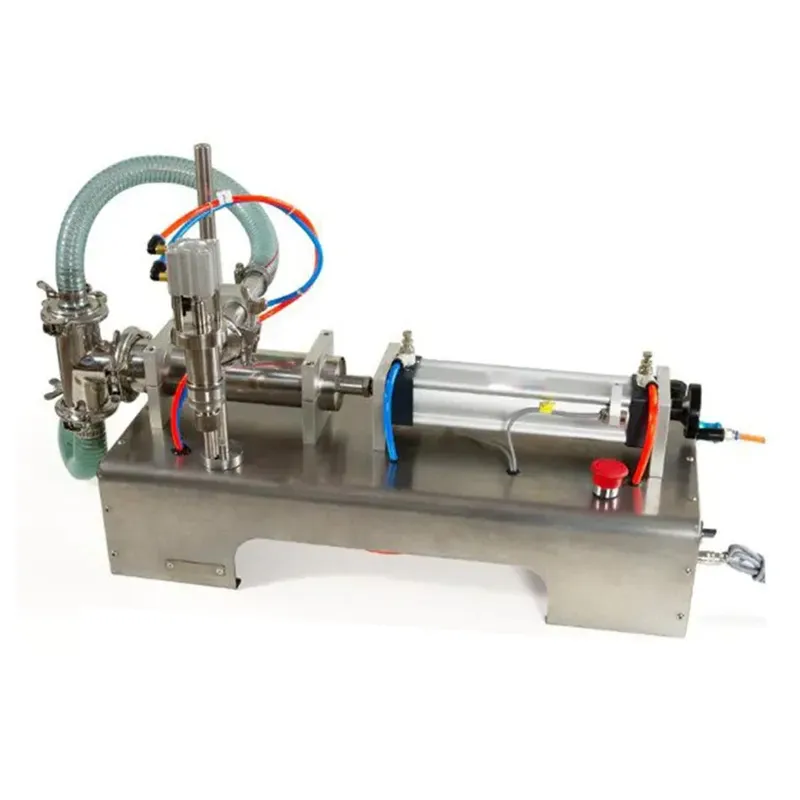

This machine is a semi-automatic piston-type liquid filling machine This machine is reasonable in design, small, and exquisite in the model. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). Both filling volume and filling speed can be adjusted at will, filling accuracy is high. The filling head adopts an anti-leakage and lifting filling device.
Features
:- Filling Range : Capable of filling liquids in the range of 10 to 100 ml.
- Semi-Automatic Operation : Requires manual intervention for certain processes while automating the filling process.
- Single Nozzle Design : Equipped with one nozzle for precise filling, suitable for small batch production.
- Durable Construction : Made from high-quality materials to ensure longevity and resistance to corrosion, especially when handling various liquids.
Specification
:- Product Type: Liquid Filler
- Brand: Generic (Imported)
- Weight (Approx.) : 30 kg
- Body Material : Stainless Steel
- Power source : 220V/110V
- Phase : Single
- Frequency : 50Hz
- Filling Head : Single Head
- Filling Volume : 10-100 ml
- Air Supply : 400 LPM
- Air Pressure : 0.6 Mpa
- Efficiency : 600 bottles per hr
Note : Compressor required extra
Usage
:1. Preparation :
- Ensure the machine is clean and free from any previous product residues.
- Set up the machine on a stable surface and connect it to a power source.
2. Adjusting the Settings :
- Set the desired filling volume (between 10-100 ml) using the volume adjustment knob.
3. Container Placement :
- Place empty containers under the nozzle in a manner that allows for easy filling.
- Ensure that all containers are aligned properly to avoid spills.
4. Filling Process :
- Activate the filling process by pressing the foot pedal.
- Monitor the filling to ensure that each container receives the correct amount of liquid.
5. Post-Filling :
- Once filling is complete, remove filled containers from beneath the nozzle.
- Clean any spills around the filling area to maintain hygiene.
Maintenance :
- Routine Cleaning : Ensure the filling nozzle and surrounding areas are cleaned regularly to prevent product buildup.
- Electrical Safety : Always disconnect power before performing maintenance to avoid electric shock or injury.
Applications
:- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 10 ml to 100 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
