Brand: Generic (Imported)

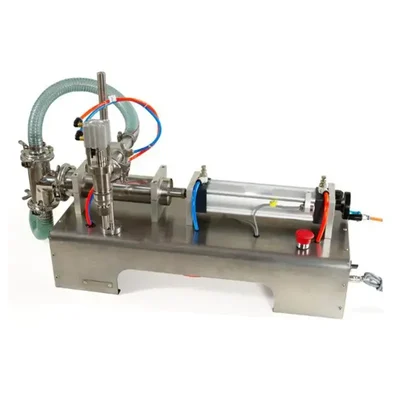

Single Nozzle Liquid Filling Machine 100-1000 ml, Semi-Automatic
SKU: DAR-SH-2170
₹35900 (Including GST)
Get extra ₹539 Discount (On Checkout)
Delivery By: Feb 4 - Feb 6
Qty:
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Single Nozzle Liquid Filling Machine
100-1000 ml Filling Volume
600-1500 bottles per hr Efficiency
Country of origin: China
Description
This machine is a semi-automatic piston-type liquid filling machine This machine is reasonable in design, small, and exquisite in the model. The piston and hopper of the cylinder are made up of 304 stainless steel and Polytetrafluoroethylene (PTEF). Both filling volume and filling speed can be adjusted at will, filling accuracy is high. Filling head adopts an anti-leakage and lifting filling device.
Features
:- Air Supply Requirement : The machine requires an air supply of 400 LPM at a pressure of 0.6 Mpa, indicating its reliance on pneumatic systems for operation.
- Power Specifications : It operates on a power source of either 220V or 110V with a frequency of 50Hz, making it adaptable to different electrical standards across regions.
- Material Construction : The piston and hopper are made from 304 stainless steel and Polytetrafluoroethylene (PTEF), materials known for their durability and resistance to corrosion, ensuring longevity and hygiene in operations.
- Single Head Filling Mechanism : The machine utilizes a single head for filling operations, which simplifies the process while still providing efficient output.
Specification
:- Product Type: Liquid Filler
- Brand: Generic (Imported)
- Weight (Approx.) : 20 kg
- Power source : 220V/110V
- Power : 10W
- Phase : Single
- Frequency : 50Hz
- Filling Head : Single Head
- Filling Volume : 100-1000 ml
- Air Supply : 400 LPM
- Air Pressure : 0.6 Mpa
- Efficiency : 600-1500 bottles per hr
- Weight : 20 Kgs (Approx.)
Note : Compressor required extra
Usage
:1. Preparation :
- Ensure the machine is clean and free from any previous product residues.
- Set up the machine on a stable surface and connect it to a power source.
2. Adjusting the Settings :
- Set the desired filling volume (between 100-1000 ml) using the volume adjustment knob.
3. Container Placement :
- Place empty containers under the nozzle in a manner that allows for easy filling.
- Ensure that all containers are aligned properly to avoid spills.
4. Filling Process :
- Activate the filling process by pressing the foot pedal.
- Monitor the filling to ensure that each container receives the correct amount of liquid.
5. Post-Filling :
- Once filling is complete, remove filled containers from beneath the nozzle.
- Clean any spills around the filling area to maintain hygiene.
Maintenance :
- Routine Cleaning : Ensure the filling nozzle and surrounding areas are cleaned regularly to prevent product buildup.
- Electrical Safety : Always disconnect power before performing maintenance to avoid electric shock or injury.
Applications
:- Cosmetic Industry : Digital free flow liquid filling machines are used to fill free flow liquid like Rose Water. Their precise control over the filling volume helps maintain product consistency.
- Laboratories : Useful for precise filling of liquid samples and solutions.
- Pharmaceutical Industry : It is utilized for filling medicinal liquids, syrups, and other pharmaceutical products into vials or bottles, which is in low viscosity just like water.
- Food and Beverage Industry : This machine is widely used for filling liquids such as free flow liquid into bottles or containers ranging from 100 ml to 1000 ml. Its precision ensures consistent fill levels, which is crucial for product quality and compliance with regulations.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 91.44 cm X 33.2 cm X 32.6 cm
Package Weight
:
24.45 Kg
