Brand: Generic ( Made in India )

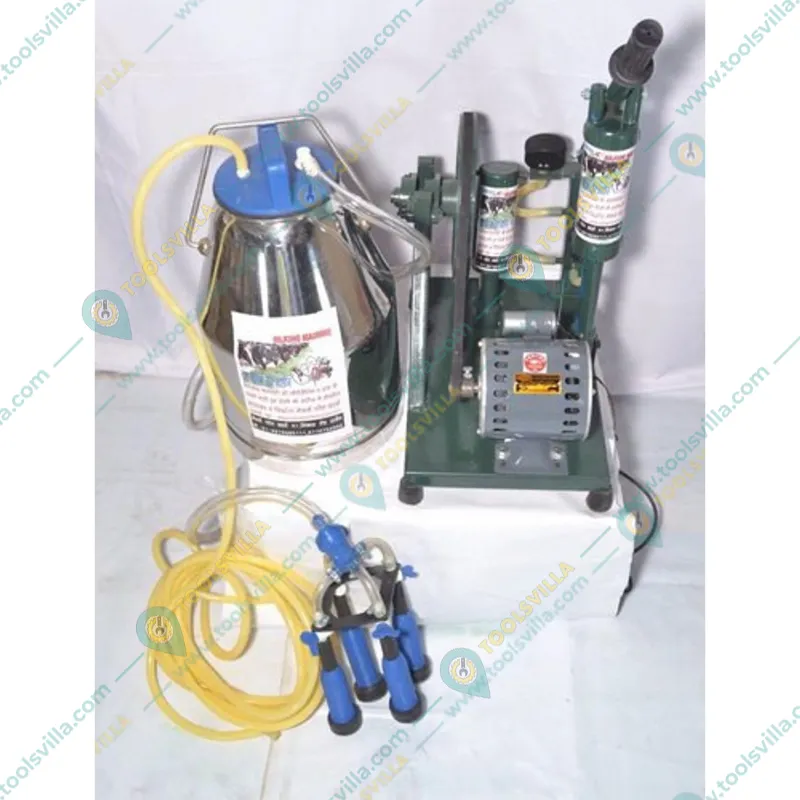

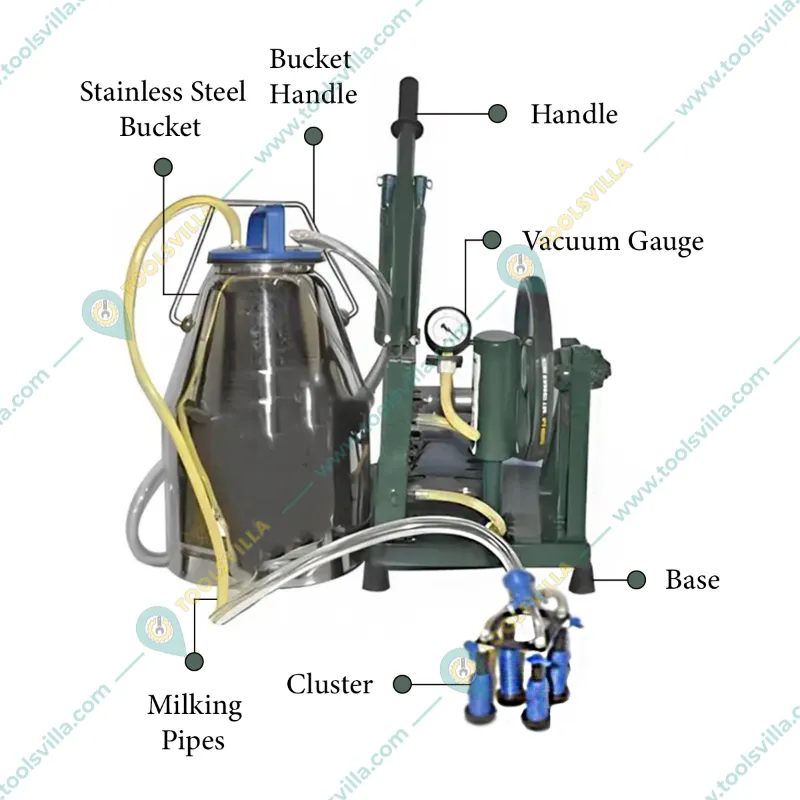

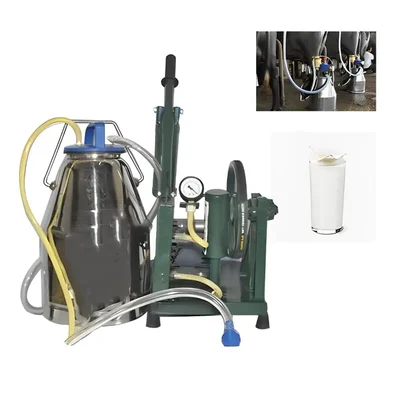

Made in India 2 in 1 Hand and Electric Single Bucket Milking Machine
SKU: CM-PB-21963
Price : ₹15499 (Including GST)
Get extra ₹232 Discount (On Checkout)
Delivery By: Dec 27 - Dec 29
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
2 in 1 Milking Machine
20-25 cows per hr Productivity
24 ltrs Storage Capacity
Country of origin: India
Description
The 2 in 1 Hand and Electric Single Bucket Milking Machine is solely designed for the purpose of carrying out the milking of a cow and buffalo in a efficient and hassle free manner by reducing the time and labor. This machine can be operated manually and electrically both as it comes with 2 in 1 functionality. This milking machine is single bucket which is made of stainless steel material and has a storage capacity of 24 litres and the machine has a milking capacity of 20-25 cows per hour making it suitable for dairy farm owners and individuals as well.
Features
:- Versatility : This automatic milking machine features the functionality of both hand and electric usage.
- Vacuum System : Equipped with vacuum mechanism, the machine creates uniform pressure to facilitate smooth milk flow to the cluster unit. This design minimizes the risk of leakage and ensures that milking is done efficiently.
- Hygiene Maintenance : One of the primary designs of milking machines is to reduce human contact with milk, thereby maintaining high hygiene standards and resulting in lower bacterial counts in the milk produced.
- Cost-Effectiveness : By reducing dependency on skilled labor and minimizing time spent on milking, this machine offers economic benefits to dairy farmers by increasing productivity while lowering operational costs.
Specification
:- Product Type: Single Bucket
- Brand: Generic ( Made in India )
- Operation : Both Power & Hand
- Motor Power : 0.25 HP
- Phase : Single
- Motor Speed : 1440 RPM
- Voltage : 220-240V
- Phase : Single
- No. of Buckets : 1
- Bucket Material : Stainless Steel
- Storage Capacity : 24L
- Operation : Semi-Automatic
- Time required for milking cow : 3-4 min (After habituating the cow)
- Time required for milking buffalo : 6-8 min (After habituating the buffalo)
- Productivity : 20-25 cows per hour
- Continuous Vacuum in Milking Line : 300 mm H15 max
- Pulse Rate : 60 per minute
- Cleaning : Boiling Water
- Weight : 25 kg (Approx.)
Usage
:1. Prepare the Milking Area :
- Ensure Cow Comfort : Use clean bedding and maintain a calm atmosphere.
- Check the Machine : Inspect all components for cleanliness and functionality to avoid malfunctions during milking.
2. Prepare the Cows for Milking :
- Inspection : Check cows for any signs of illness or discomfort.
- Hygiene : Clean the udder and teats thoroughly with warm water and a sanitizing solution to minimize the risk of infection.
- Calm the Animals : Keep the environment quiet and stress-free, and handle the cows gently to ensure their comfort.
3. Adjust the Machine Settings :
- Each herd may have specific milking needs, so it’s essential to set the machine correctly :
- Select the Right Pulsation Rate : This is usually specified in the manual and can differ between different lactation stages of cows.
- Set the Milk Flow Rate : Adjust according to the cow’s milking speed and to prevent machine overload.
4. Attach the Milking Clusters :
- Connect the milking clusters to the cows following these steps :
- Positioning : Approach the cow calmly and position the milking cluster directly below the udder.
- Attachment : Carefully attach the teat cups to each teat, ensuring a snug fit without applying too much pressure.
- Check for Proper Seal : Ensure there is no leakage or improper positioning of the cups.
5. Monitor the Milking Process :
- While the machine operates, it’s important to monitor the process :
- Observe Cow Behavior : Ensure the cow is comfortable and relaxed.
- Observe the Milk Flow : While conducting the milking process, observe the flow rate of the milk and make sure that uniform flow is maintained.
6. Detach the Clusters :
- Once the cow has been milked, it’s time to detach the milking clusters, gently detach the milking cluster from the cow's udders upon completion of the milking process.
Maintenance :
- Clean the Milking Equipment : Rinse and sanitize all milking components, including the milking cluster and the storage tank, to prevent bacteria growth.
- Routine Inspections : Conduct daily checks for wear and tear, ensuring all components are functioning properly.
- Scheduled Maintenance : Ensure lubrication, parts replacement, and deep cleaning to keep machinery in peak condition
Applications
:- Commercial Dairy Farms : Automatic milking machine is an important pieces of equipment at dairy farms, because this machine automates the milking process and increases the milking efficiency.
- Reduced Dependence On Skilled Labor : The milking machine reduces the dependence on skilled labor for milking operations, making the task more efficient and cost effective and let's anyone take control over the milking operation without the need of having the required skillset to milk a cow.
- Improved Milk Quality and Hygiene : Using an automatic milking machine helps ensure cleaner milk by minimizing contamination risks that can occur during hand milking. The enclosed system reduces the likelihood of dirt, debris, or manure entering the milk, which is crucial for maintaining high-quality standards in dairy production.
Toolsvilla deals with various types of Dairy Equipment. Wide varieties of Milking Machines are used for milking cows & buffaloes.
Shipping Weight & Dimensions
:
Verified Package Dimensions
(L X W X H)
: 77.47 cm X 45.72 cm X 33.02 cm
Package Weight
:
23.80 Kg
