Brand: Solar Universe India
Solar Universe India 250W Polycrystalline Solar Panel of 24V
SKU: BM-BB-20212490
MRP : ₹13560
Offer Price : ₹8999 (Including GST)
Get extra ₹135 Discount (On Checkout)
Delivery By: Jan 1 - Jan 3
Qty:
BUY IN BULK
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
250 W Polycrystalline Solar Panel High Efficiency,
Easy to Installation,
Excellent Low Light Performance.
Long Durable Solar Panel.
Country of origin: India
Description

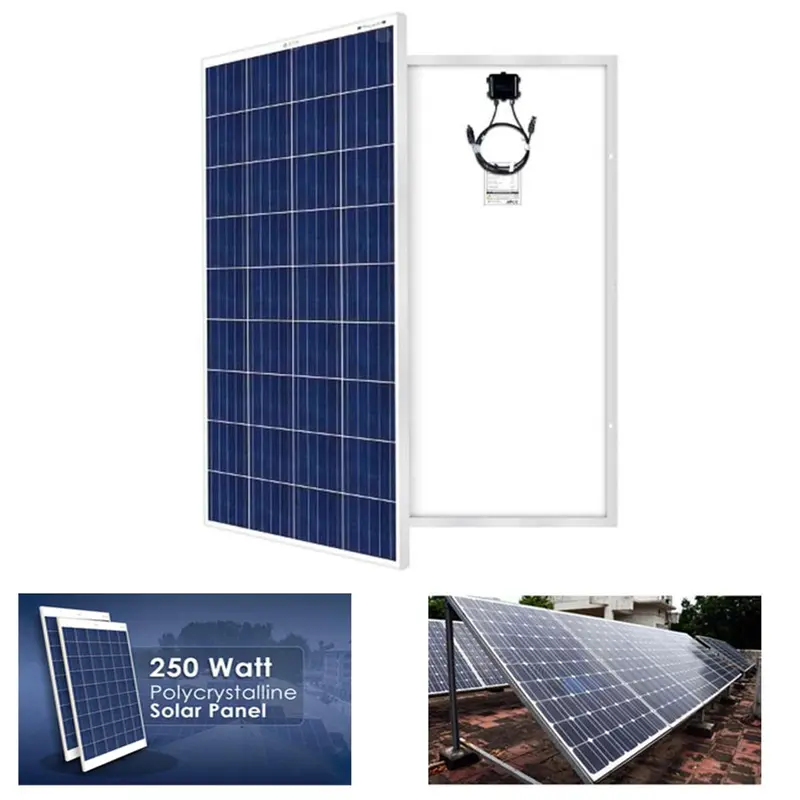

Solar Universe India 250W Polycrystalline Solar Panel of 24V
Descriptions :
- This particular model is a single unit of 24V, 250W Polycrystalline Solar Panel that is popularly used for recharging 24V batteries used in inverters, for running 24V appliances such as LED TVs, battery chargers etc. It may also be used for a solar power plant installation on rooftop. The product comes with 3M wire and universal connector. This is the most preferred solar panel for OFF Grid Solar Projects
Features :
- Increased module power output.
- Maximum system voltage of 1500 V DC.
- Reduced BOS cost.
- High area efficiency.
- Easy installation & handling for various applications.
- Robust & Sturdy Aluminum Frame with Toughened Glass & Tedlar Backsheet
- Technology polycrystalline, 5BB & Anti PID Cells gives higher performance in high temperature
Specifications :
- Product Type : Polycrystalline Solar Panel
- Brand : Solar Universe India
- Number of Cell : 60
- Material : Aluminum
- Junction Box : IP 67 rated with 3 bypass diodes
- Cell Encapsulant : PID Free EVA (Ethylene Vinyl Acetate) ‐ FC/UFC
- Back sheet : Composite Film - White ( Black & Transparent Optional )
- Frame : Silver Anodized Aluminum frame with twin-wall profile
- Mechanical Load Test : Sustain heavy static load (2400 Pa & 5400 Pa or 550 kg/m2)
- Dimension (L x W x H) : (1640 x 990 x 35/40) mm (± 10mm)
- Weight : 18.5 Kg (Approx.)
Technical Data :
Electrical Characteristics at STC :
- Maximum Power Pmax : 250 Wp
- Maximum Voltage Vmpp : 27.22 V
- Maximum Current Impp : 9.19 A
- Open Circuit Voltage Voc : 32.02 V
- Short Circuit Current Isc : 9.74
- Module Efficiency : 16.30 %
Electrical Characteristics at NOCT:
- Maximum Power Pmax : 185.97 Wp
- Maximum Voltage Vmpp : 27.72 V
- Maximum Current Impp : 6.71 A
- Open Circuit Voltage Voc : 35.08 V
- Short Circuit Current Isc : 7.04 A
Temperature coefficient (Tc) and permissible operating conditions:
- Tc of Open Circuit Voltage (α) : ‐0.310%/°K 2.
- Tc of Short Circuit Current (β) : 0.050%/°K 3.
- Tc of Power (γ) : ‐0.410%/°K
- NOCT : 46 ± 2°C
- Maximum series fuse ratings : 30 A
- Temperature Range : ‐40°C to +85°C
- Maximum System Voltage : 1000 / 1500 V DC
Approvals and certifications from :
- IEC 61215 Ed 2, ROHS,IEC 61730, IEC 61701, CE,UL 1703, CEC, CE
Applications :
It has various applications such as :
- On-grid Large scale utility projects
- On-grid rooftop Industrial & commercial system,
- Off-grid rooftop systems for residential buildings.
- Solar water pumping systems,
- Off-grid systems for Filling Stations.
- Electric Vehicles charging station,
- Street lighting applications.
Package Contents :
- Solar Panel
- Connecting Cable
- Packaging Materials
Specifications
:- Product Type: Solar Panel
- Brand: Solar Universe India
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 172.5 cm X 100 cm X 5 cm
Package Weight
:
21.90 Kg
