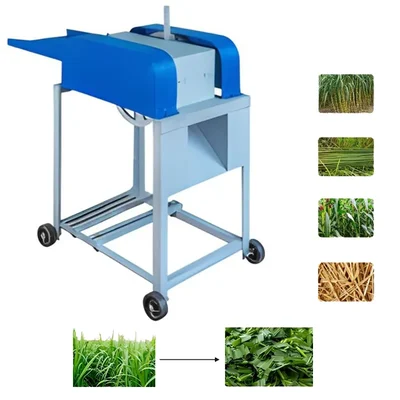

Made in India Heavy Duty Chaff Cutter/Grass Cutter 700-1500 kg per hr without Motor
SKU: MK-AI-203
₹21280 (Including GST)
MRP : ₹29310
Get extra ₹319 Discount (On Checkout)
Out of Stock
Easy Return
& Refund
Quality
Assurance
Trusted
Delivery
After Sales
Assistance
Buyer
Protection
Short Description
Made in India Chaff Cutter/Grass Cutter Machine
700 to 800 kg per hr Dry Fodder Cutting Capacity
1300 to 1500 kg per hr Green Fodder Cutting Capacity
Country of origin: India
Description
A chaff cutter is a machine used for cutting straw or hay into small pieces before being mixed together with other forage and fed to horses and cattle. This aids the animal's digestion and prevents animals from rejecting any part of their food. They are known as Chara Cutter & Kutty Cutting Machine in various regional languages. This machine automates the chaff cutting process for preparation of animal feed reducing both time and effort.
Features
:- Compact Design: This chaff cutter features a compact and portable design, facilitating easy transportation and use across different farm locations without requiring extensive setup.
- Ease of Maintenance: Chaff cutters are designed for easy maintenance, with accessible components that simplify cleaning, lubrication, and blade replacement.
- Cutting Mechanism: Equipped with sharp blades, chaff cutters efficiently chop fodder into small, manageable pieces, promoting better digestion and nutrient absorption for livestock.
Specification
:- Brand: Generic ( Made in India )
- Material : Mild Steel
- Required Power : 3 HP Electric Motor
- Suitable for : 20 to 30 animals
- Operation : Automatic
- Machine Feed : Kadaba Straw, Corn Stalk, Hatti Grass Straw, Sugarcane
- Body Material : High Carbon Steel
- Gear Material : Special Steel EN8
- Cutting Size : 18 to 23 mm (Approx.)
- Motor Pulley : 3.5inch (8.89 cm) single groove b-section
- Voltage : 230 V
- Phase : Single
- No. of Blades : 2
- Cutting Capacity Green Fodder : 1300 to 1500 kg per hr (Approx.)
- Cutting Capacity Dry Fodder : 700 to 800 kg per hr (Approx.)
- Cutting Capacity : 400-600 kg/hour
- Weight : 100 kg (Approx.)
Usage
:1. Preparation and Setup:
- Location: Choose a flat, stable surface for the chaff cutter. Ensure that the area is clear of any obstacles or flammable materials.
- Power Supply: As this machine doesn't include the motor with it. The user needs to connect a motor in order to start the fodder cutting operation. Ensure that the motor is connected to an appropriate power source.
- Safety Gear: Wear appropriate safety gear, including gloves, goggles, and ear protection, as operating machinery can be noisy and potentially hazardous.
2. Loading Material:
- Prepare the material (straw or hay) you wish to cut. It should be dry and free from foreign objects like stones or metal pieces.
- Feed the material into the hopper of the chaff cutter slowly and steadily. Avoid overloading the machine as this can cause jams or damage.
3. Starting the Machine:
- Turn on the power switch of the motor-operated chaff cutter.
- Allow the machine to reach its full operational speed before feeding in more material.
4. Cutting Process:
- As you feed material into the hopper, monitor its progress through the cutting mechanism.
- Adjust your feeding speed based on how quickly the machine processes the material; do not force too much at once.
5. Collecting Chaff:
- The cut chaff will exit from a designated outlet. Position containers or bags underneath this outlet to collect the chopped material efficiently.
- Ensure that no one stands directly behind or near this outlet during operation.
6. Shutting Down:
- Once you have finished cutting, turn off the motor using its designated switch.
- Wait for all moving parts to come to a complete stop before attempting any maintenance or cleaning.
Maintenance:
- Regular Inspections: Conduct regular checks on the chaff cutter parts. Pay particular attention to bolts and nuts; if any are loose, tighten them immediately to prevent operational issues.
- Lubrication: Every part of the chaff cutter requires lubrication. Clean the components thoroughly before adding lithium grease. Ensure that the gearbox is lubricated with oil every season, while the main bearing should be lubricated at least once a year.
- Dust Removal: When adding lubricating oil, it is crucial to remove any dust or debris to avoid contamination that could impair functionality.
- Wear and Deformation Checks: Regularly check all parts for signs of wear or deformation. If any issues are identified, replace those parts promptly to maintain safe operation.
Applications
:- Feed Cost Management: The cost incurred behind purchasing feed for cattle is saved by using the chaff cutter, as it acts as a lone fodder production machinery and helps in converting green waste into fodder for cattle and other animals.
- Time & Labor Savings: This machine not only helps in fodder preparation but also saves a lot of time by automating the process of cutting fodder and saving both time and labor.
- Waste Reduction: It helps in efficient waste management as no plant product is left out as waste. They are utilized by converting them into fodder for cattle.
- Fodder Preparation & Nutritional Enhancements: The Chaff cutter helps in the preparation of fodder for animals. The materials are cut into uniform pieces which retain the required nutrients in it.
- Ensures Animal Health: As the chaff cutter helps in achieving uniform cutting size of the plant products which are used as fodder for the animals. It ensures that the animals don't reject any part of their meal which aids the digestion of the animals and is considered appropriate for their health and well-being.
Shipping Weight & Dimensions
: Package Dimensions
(L X W X H)
: 10 cm X 10 cm X 10 cm
Package Weight
:
75.00 Kg
